BT600F/YZ15 Filling Hose Pump/flow intelligent peristaltic pump
- 500 Piece / Pieces per Month
- SHANGHAI
- Credit Card PayPal
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | Shanghai, China | Brand Name: | KINGDAK | Model Number: | BT600F |
Theory: | Electromagnetic Pump | Structure: | Gear Pump | Usage: | Other, viscosity fluid |
Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Other, electricity |
Pressure: | Low Pressure |
Product Description
BT600F flow intelligent peristaltic pump
Feature:
• Color touch screen, making the information more intuitive and the operation more convenient;
•Intelligence expert operating system can guarantee smooth operation even the operator never used such kind of machine before;
•Motor rotation angle precision control technology, reducing the dispensing errors under traditional time control distribution pattern due to motor slow start;
•Intelligent temperature control technology greatly reduces the operating noise of peristaltic pump;
•It has three kinds of distribution patterns, time dispense mode, fluid volume dispense mode, copying dispense mode. It can meet different needs;
•The function of accumulated distribution of liquid can record total liquid volume;
•Infrared remote control function, it can be non-contact control;
•BT600F dust-proof type of stainless steel case design, suitable for general industrial environments
Specification:
YZ15 Flow Range (ml / min) | ||||
Tube type | 13# | 14# | 16# | 25# |
0.1-600 rpm | 0.006~36 | 0.02~130 | 0.08~480 | 0.17~1000 |
Tube type | 17# | 18# | ||
0.1-600 rpm | 0.28~1700 | 0.38~2300 |
YZ25 Flow Range (ml / min) | ||||
Tube type | 15# | 24# | ||
0.1-600 rpm | 0.17~1000 | 0.28~1700 |

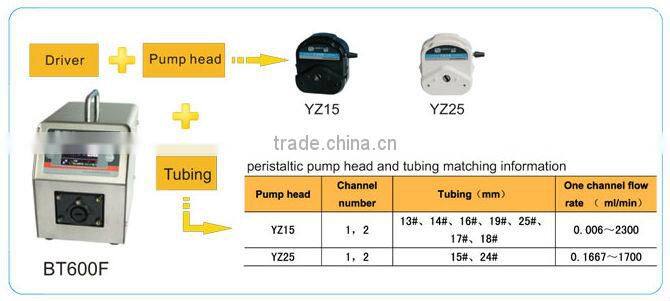

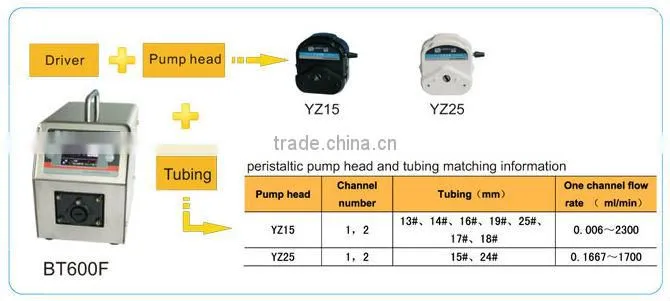

Drive | Pump heads | Channel | Applicable tubing(mm) | Single channel flow rate (ml/min) |
BT600F (stainless steel 304) | YZ15 | 1 | 13#14#16#19#25#17#18# | 0.006~2300 |
YZ25 | 1 | 15#24# | 0.1667~1700 | |
2×YZ15 | 2 | 13#14#16#19#25#17#18# | 0.006~2300 | |
2×YZ25 | 2 | 15#24# | 0.1667~1700 |
Technical parameters
•Speed range: 0.1 ~ 600 rpm
•Speed resolution: 0.1 rpm, with accuracy 0.2%
•Display: 65535 color LCD + touch screen
•Supply Voltage: AC220V ± 10% 50/60HZ
•Power ratio: < 60W
•Working Environment Temperature: 0 ~ 40 °C Relative humidity <80%
•Protection level: IP31
•Dimensions: (L × W × H) 223mm×150mm×195mm
•Weight: 5.3kg
