WG600F/YZ35 Intelligent Industrial Peristaltic Pump

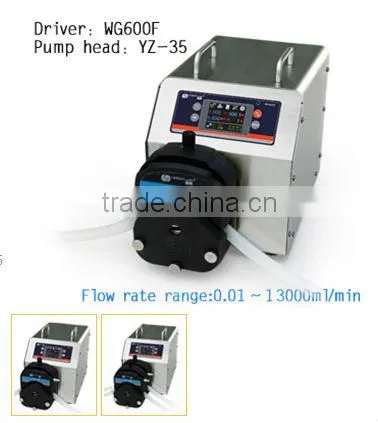

  WG600F variable speed peristaltic pump

Description:

The pump is suitable for transferring and dispensing large amount of fluid in industry. Flow range: 0.01-13L/min; speed range: 0.1-600 rpm. It can cascade two pump heads. Brushless servomotor drive with large torque, no maintenance, high rotating accuracy. Has basic functions such as reversible direction,start/stop,full speed ( fast cleaning) and speed-variable. The pump has three types of distributing mode: time dispensing mode; volume dispensing mode ;copy dispensing mode, meets all kinds of complex dispensing requirements. RS485 interface, as adopting the MODBUS communication protocol, the pump is easier to be connected with other equipments, such as computer, human machine interface and PLC.

Function and feature:

           Flow range : 0.01-13(L/min)

l        Applicable pump head: YZ35, 2xYZ35.

l        Brushless servomotor drive with large torque, no maintenance, high rotating accuracy.

l        The circuit board with conformal coating makes it dust-proof and moisture-proof.

l        Color LCD displaying, touch screen and keypad for operating.

l        Reversible direction, start/stop and full speed, state memory (power-down memory).

l        Speed resolution: <0.1rpm , speed accuracy : <0.5%

l        Calibrating flow function.

l        Three types of distributing mode: time dispensing mode; volume dispensing mode ;copy dispensing mode.

l        Automatically store five groups of working parameters.

l        The operating expert system guides users setting parameters correctly.

l        Remote infrared controlling function.

l        Super anti-interference feature, wide input voltage range, acceptable for the complex power environment.

l        Stainless steel housing, easy to clean, excellent resistance to the corrosion of the acid,alkali,sodium and the organic solvents.

l        External high-low electrical level controls the start/stop,reversible direction and easy dispensing function, optically coupled isolator; external analog adjusts the rotate speed.

l        RS485 interface, MODBUS protocol is available, easy to connect other equipments.

Specifications:

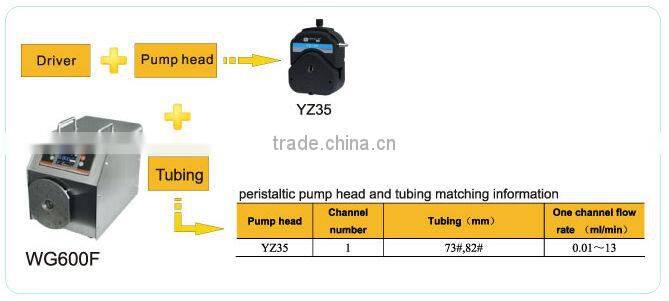

WG600F Applicable pump head and tubing, flow parameters
