Home > Products > peristaltic pump > BT601F/YZ15 LCD display and touch screen intelligent dispensing peristaltic pump
BT601F/YZ15 LCD display and touch screen intelligent dispensing peristaltic pump
- 500 Piece / Pieces per Month
- SHANGHAI
- Credit Card PayPal
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | Shanghai, China | Brand Name: | KINGDAK | Model Number: | BT601F |
Theory: | Electromagnetic Pump | Structure: | Gear Pump | Usage: | Other, viscosity fluid |
Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Other, electricity |
Pressure: | Low Pressure |
Product Description

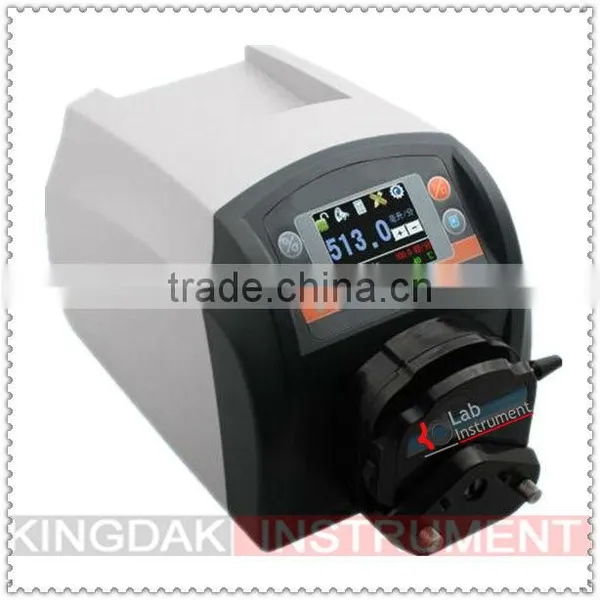

BT601F flow intelligent peristaltic pump
Feature:
• Color touch screen, making the information more intuitive and the operation more convenient;
• Intelligent expert operating system can guarantee smooth operation even the operator never used such kind of machine before;
• Motor rotation angle precision control technology, reducing the dispensing errors under traditional time control distribution pattern due to motor slow start
• The expert operating system can prompt the tube specifications, materials, pump head types and other information, guiding the operator set peristaltic pump correctly according to the input flow, fluid volume, working hours and other data.
• Intelligent temperature control technology greatly reduces the operating noise of peristaltic pump;
• It has three kinds of distribution patterns, time dispense mdoe, fluid volume dispense mode, copying dispense mode. It can meet different needs,
• The function of accumulated distribution of liquid can record total liquid volume;
• Infrared remote control function, it can be non-contact control;
• Sleek lines plastic case design, suitable for laboratory use
Specification:
YZ15 Flow Range (ml / min) | ||||
Tube type | 13# | 14# | 16# | 25# |
0.1-600 rpm | 0.006~36 | 0.02~130 | 0.08~480 | 0.17~1000 |
Tube type | 17# | 18# | ||
0.1-600 rpm | 0.28~1700 | 0.38~2300 |
YZ25 Flow Range (ml / min) | ||||
Tube type | 15# | 24# | ||
0.1-600 rpm | 0.17~1000 | 0.28~1700 |

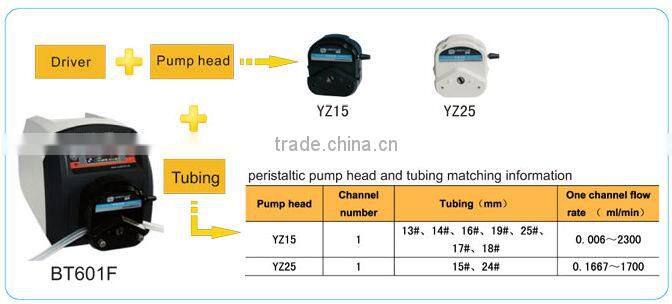

Drive | Pump heads | Channel | Applicable tubing(mm) | Single channel flow rate (ml/min) |
BT601F (streamlined plastic case) | YZ15 | 1 | 13#14#16#19#25#17#18# | 0.006~2300 |
YZ25 | 1 | 15#24# | 0.1667~1700 |
Technical parameters
• Speed range: 0.1 ~ 600 rpm
• Speed resolution: 0.1 rpm, with accuracy 0.2%
• Display: 65535 color LCD + touch screen
• Supply Voltage: AC220V ± 10% 50/60HZ
• Power ratio: < 60W
• Working Environment: Temperature 0 ~ 40 °C Relative humidity <80%
• Protection level :IP31
• Dimensions: (L × W × H) 255mm×180mm×185mm
• Weight: 5.6kg
External control functions:
• External control start and stop, external control orientation, Isolated, TTL level input; 0-5V/10V ,4-20mA ,0-10KHz speed control input; support RS485 bus, MODBUS communication protocol.
