Specifications
Oasis company specialized production lab and large mining machine.Oasis machines passed ISO9001:2008(Tel008613697077005)
ShiCheng Oasis Mineral Equipment Manufacturing Co., LTD(0086-797-5745599

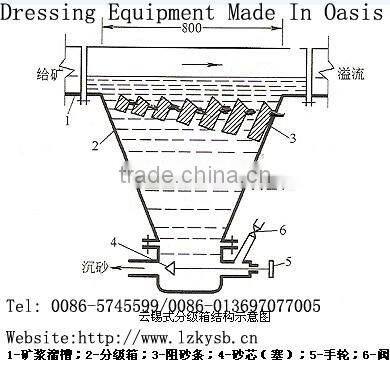

Hydraulic classification box is a cone angle iron box, there is an upper sand wedge blocking Article, the following classification Xiangdi valve fitted. Usually from 200 mm to 800 mm width of the graded series of boxes connected with ordinary sink is made from coarse-to-fine Grit Chamber exhaust.
It is widely used in the hydraulic shaker before sorting grading operations, classification and distribution of mine to play the role of quantity in order to improve the sorting efficiency of shaking. Hydraulic classification box has a simple structure, easy maintenance, do not consume power, reliable performance, easy to operate and so on.
Model | YX-200 | YX-300 | YX-400 | YX-600 | YX-800 |
Resistance of sand quantity (Article) | 11 | ||||
Resistance of sand-length mm | 180 | 280 | 380 | 590 | 790 |
Pai mine Diameter (mm) | 25 | ||||
Increased water pressure (kg / cm 2) | 1-2 | ||||
To the ore particle size (mm) | 2-3 | ||||
To the ore concentration (%) | 20-25 | ||||
Water consumption (m / t) | 2-3 | ||||
Dimension (L × W × H) (mm) | 800 × 200 ×1000 × 1000 | 800 × 300 ×1000 × 1000 | 800 × 400 ×1000 × 1000 | 800 × 600 ×1000 × 1000 | 800 × 800 ×1000 × 1000 |
Weight (kg) | 0.107 | 0.124 | 00.148 | 0.178 | 0.214 |
