it is mainly applied to the process of second paragraph grinding,its grading operation is according to the particle sie

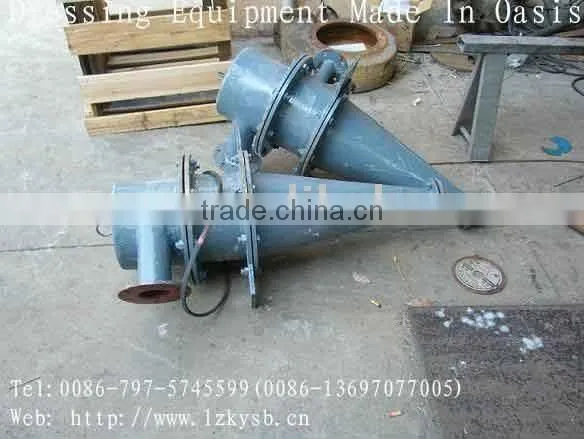

Hydrocyclone is mainly applied to the process of second paragraph grinding, coarse or concentrate re-grinding and the closed-circuit composed by mechanical grading machine, its grading operation is according to the particle size. The device has features of simple structure, long service life, large disposal capability, small land covering and no driving power consumption. It is a high efficient grading and de-sliming equipment of fine -particle material. It is widely used in concentrator of nonferrous and ferrous, chemical, pharmaceutical, ceramics and other industries
model | FX-125 | FX-150 | FX-250 | FX-300 | FX-350 | |
Overflow size (mm) | 15-250 | 25-250 | 25-250 | 25-250 | 25-250 | |
Processing capacity (m2/h) | 2.4-1.5 | 4.8-54 | 6.5-61.2 | 24-60 | 24-90 | |
Permitting overflow pressure (kg/cm2) | 0.3-3 | 0.3-3 | 0.3-3 | 0.3-3 | 0.3-3 | |
Cyclone structural parameters | Diameter (mm) | Φ125 | Φ150 | Φ250 | Φ300 | Φ350 |
Cone angle | 20° | 20° | 20° | 20° | 20° | |
Cylinder height (mm) | 110 | 200 | 170 | 235 | 180 | |
Overflow tube length (mm), | 107 | 130 | 163 | 210 | 215 | |
Feed port area (mm ²) | 25×10 | 40×10 | 50×20 | 75×20 | 80×35 | |
De-silting pipeline diameter (mm) | 15-30 | 15 | 35 | 50 | 25 | |
Outline size (length × width × height) | 320×260×648 | 594×380× 899 | 540×475×1172 | 575×550× 1444 | 575×690× 1510 | |
weight (kg) | 80 | 85 | 210 | 240 | 350 | |
