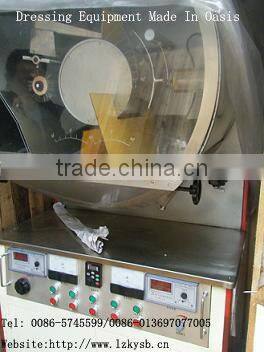

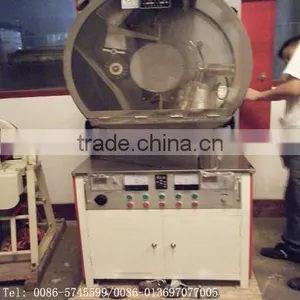

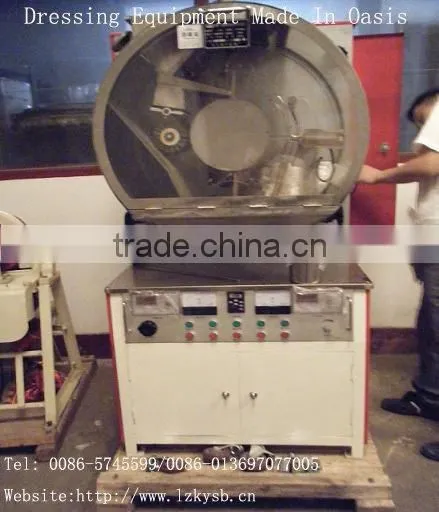

Lab Voltage High Voltage Electrostatic Separator

Name: Lab Voltage High Voltage Electrostatic Separator
Brand: OASIS
SKU: 141444608
Availability: InStock

Shicheng Oasis Mineral Equipment Manufacturing Co., Ltd.

US$ 32,000 - 38,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Other

Place of Origin:

Jiangxi, China

Payment & Shipping

Payment Methods:

Port of Shipment:

XiaMen/GuangZhou

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Other

Place of Origin Jiangxi, China

Brand Name OASIS

Model Number other

Certification ISO9001:2008

ShiCheng Oasis Mineral Equipment Manufacturing Co., LTD(0086-797-5745599

Main application areas:

Colleges, universities and research institutes to conduct non-ferrous mineral processing laboratory, black, a selection of rare metal ore

A variety of non-metallic mineral sorting experiments

Scattered scrap metal powder, fine-grained, and other insulating materials, sorting

Plastics Removal of non-ferrous metals

Municipal solid waste recovery for copper, aluminum and other valuable metals

Selection of food and other grains to remove debris impurity

Corona and electrostatic field with a combination of complex electric field

Drums speed, great distance, selected angle (electrode angle relative to the drums), voltage, to the mine

Groove angle and amplitude, etc., when in operation can be adjusted

To the ore bucket temperature, drum temperature can be controlled

Main technical parameters and specifications Model
Drums (diameter mm × Length mm)	250×200
Feeding size (mm)	0.04-1
Processing capacity (kg / h)	15-30
Maximum voltage (kv)	60
Dimension (mm)	925 ×1126×1850
