Home > Products > other machinery > Laboratory Sand Pump/Laboratory Vertical Sand Pump

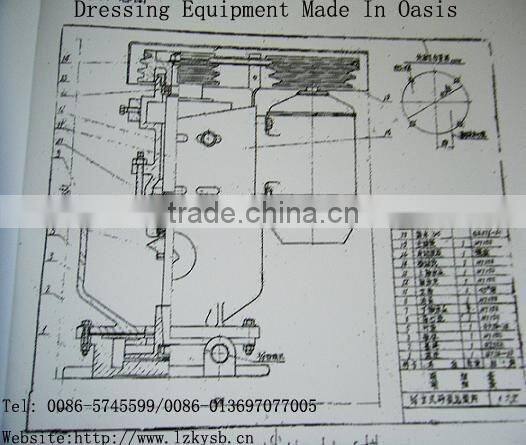

Laboratory Sand Pump/Laboratory Vertical Sand Pump
- XiaMen/GuangZhou
- T/T
You May Like
Product Details
| Condition | New | Type | Other | |
| Place of Origin | Jiangxi, China | Brand Name | OASIS | |
| Model Number | other | Certification | ISO9001:2008 |
Product Description
Specifications
1.good quality and low price2.simple structure
nvenient maintain
4.long life
ShiCheng Oasis Mineral Equipment Manufacturing Co., LTD(0086-797-5745599

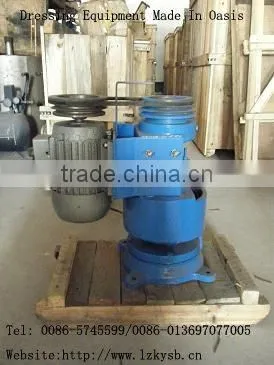

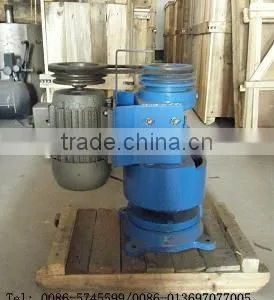

Product Name: Experimental sand pump
The product is mainly used in conveying mud, mortar, pulp and similar liquid containing suspended solid particles. Such as oil drilling mud cleaning system, first concentrate slurry transportation mines, tailings, slime, etc.
Solid base product installation will be tight, installed in the tank top (tank top) horizontal position, the lower end of suction pipe from the tank bottom from the lack of should be larger than 500MM, exhaust pipe valve should be installed in order to regulate flow and head.. There should be no sharp turns pipeline installation, pipeline installation, should not bear additional pressure.
Pump motor to start turning before testing whether the steering pump, pump startup should be shut down discharge pipe valve, the pump starts, slowly adjust valve. To flow or pressure regulator to the required working conditions.
Model XBSL | Pai mine mouth diameter (MM) | Head (M) | Flow L / MIN | Pulp concentration (%) | Power (KW) | Voltage (V) | Size (MM) | Weight (KG) |
13 / (1 / 2) | 13 | 5 | 20-30 | 30 | 0.75 | 380 | 486/280/465 | 65 |
19 (3 / 4) | 19 | 6 | 55 | 30 | 1.1 | 380 | 420/351/553 | 110 |
25 (1) | 25 | 9 | 110 | 30 | 1.5 | 380 | 682/500/648 | 157 |
38 (3 / 2) | 38 | 12 | 250 | 30 | 3 | 380 | 690/485/685 | 200 |
