Specifications
Shaking table:1.high processing capacity
2.high recovery rate

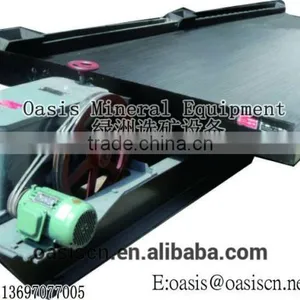

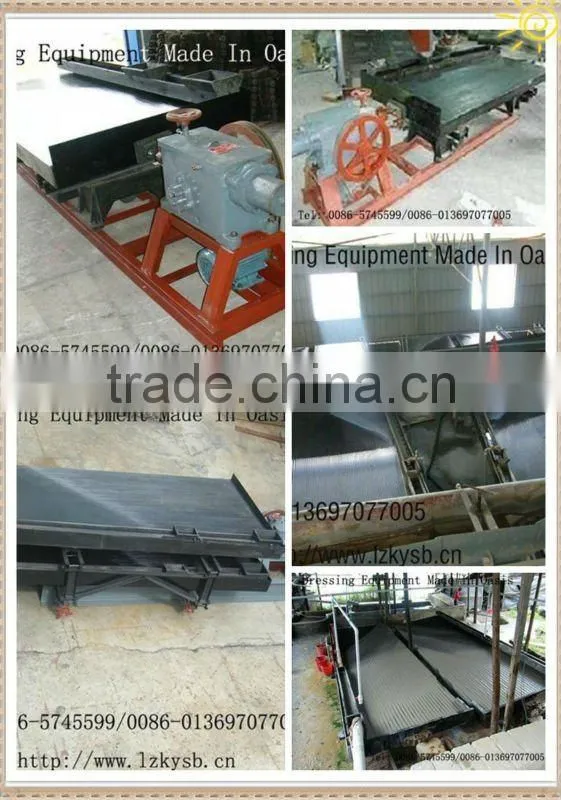

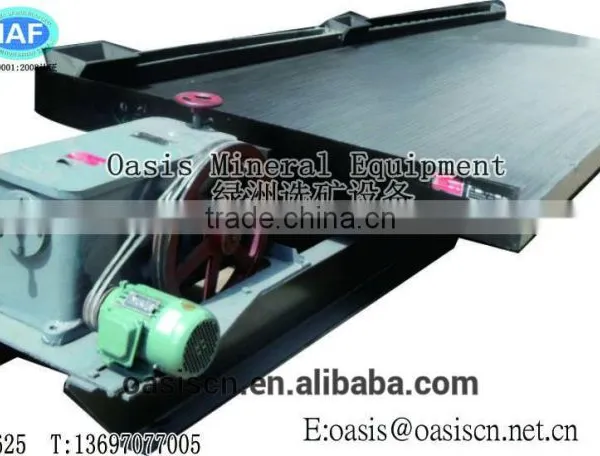

6S Shaking table (tel:18720731260 )
Shaking table:
1.high processing capacity
2.high recovery rate
3.high enrichment ratio
It is applicable for separations of fine-grained and micro-grained rare metal, ferrous and non-ferrous metal, precious metal, coal and other minerals. It can carry out ore concentration operation independently and also can operate in conjunction with jig, screw separator, centrifugal separator and other equipment. 6S Shaking Table is to make separations based on the difference of specific gravity of feed materials, reciprocating asymmetrical movement and the stratification performance of the inclined table surface in the lateral water flow with obvious zone of the minerals with different specific gravities on the table, high quality of concentrates produced, convenient operation and adjustment and other features.
Shake surface structure of grit, sand, sludge of the points, there are 46 specific sub-slot, 60-slot dual-wave, 60-slot single-wave, 80 slots, 90 slots, 110 slot, 120 slot, lifting of bed, etc. materials were glass, steel or wood shaker surface.
The structure of the shaker are: a fixed bracket shaker without the mounting bracket, the installation required prior to pouring concrete and anchor bolts embedded a good, not easy to move, the cost is low; small channel shaker easy installation, simply pouring cement and embedded anchor bolts, affordable and easy to move; large channel Shaker (without pouring cement and embedded anchor bolts, installation fast and simple, easy to demolish mobile. suitable for sand, virtual land and ship operations.
