Help CenterLab Hydrocyclone/Pony Dressing Machine/Concentrating Machine/Ore Dresser Machine/Dresser Machine/ Beneficiation Machine
Related Products
-
Disk Vacuum Filter/Pony Dressing Machine/Concentrating Machine/Ore Dresser Machine/Dresser Machine/ Beneficiation MachineUS$ 100 - 6,000MOQ: 1 Set -
Hydraulic Classification Box/Power Graduation Box/Classifiers Products/Classifying Ore(Mineral) Equipment/Sizer/ClassifierUS$ 111 - 6,666MOQ: 1 Set
-
High Gradient Magnetic Separator MachineUS$ 90,000 - 98,000MOQ: 1 Set
-
Iron Sand Big Magnetic SeparatorUS$ 92,000 - 96,000MOQ: 1 Set
-
Hematite Magnetic Separator for Hematite ConcentrationUS$ 92,000 - 96,000MOQ: 1 Set
Specifications
1.easy maintenance2.even final particles
3.high crushing ratio
4.firm structure...

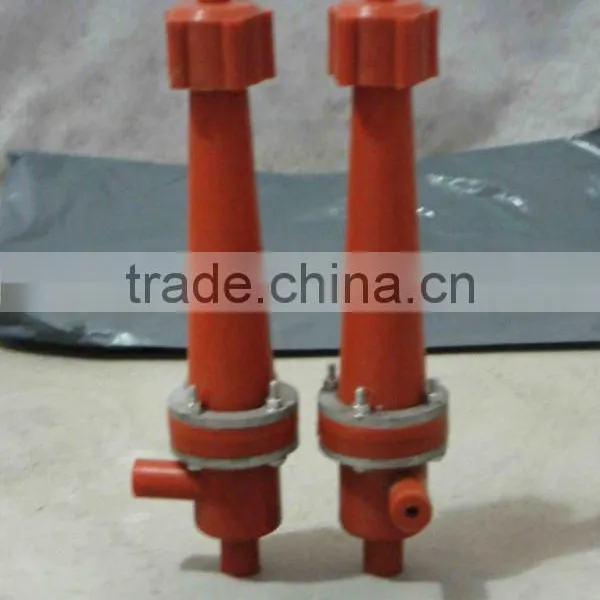

Technical Parameter of laboratory hydro-cyclone

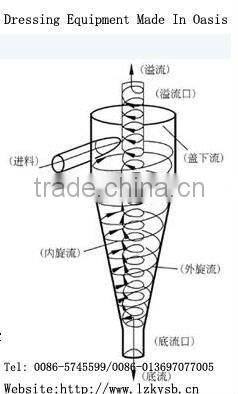

FX-type hydrocyclone is frequently used in the second paragraph of the metal concentrator mill or coarse ore in the grinding process and mechanical grading machine into a closed-circuit use, made to replace the machine seized grading machine, security and grain size grading operation. The device has a simple structure, long life, large capacity, small footprint, non-consumption of power and so on. Is a highly efficient micro-fine particles grading, de-mud equipment. This product is the only designated former Ministry of Geology and Mineral production, the implementation of industry standards.
The device is suitable for laboratory tests during the coal preparation overflow dressing classification, concentration, de-mud, dehydration.
Model |
Uite |
FX 25 |
FX 50 |
FX 75 |
FX 100 |
Diameter |
mm |
25 |
50 |
75 |
100 |
Feed pressure |
MPA |
0.1-0.5 |
0.1-0.4 |
0.1-0.4 |
0.06-0.35 |
Cone angle |
o |
20 |
20 |
20 |
20 |
Particie size of overflow |
mm |
0.2 |
0.3 |
0.6 |
1 |
Particie size of overflow |
um |
2-10 |
10-74 |
20-74 |
20-100 |
Overflow size |
Mm |
6 |
8, 12 |
10,14 |
20,30 |
Output size |
Mm |
2.5-4 |
5-6 |
6-8 |
14-30 |
Capacity |
m3/h |
0.3-1 |
1-2 |
2-5 |
5-12 |
Overall dimensions |
mm |
160/152/387 |
160/155/590 |
240/230/465 |
260/210/520 |
Weighe |
kg |
1 |
2 |
4 |
8 |
