Specifications
1)Simple installation and adjustment magnetic separator2)Easy to operate
3)Permanent magnetism...

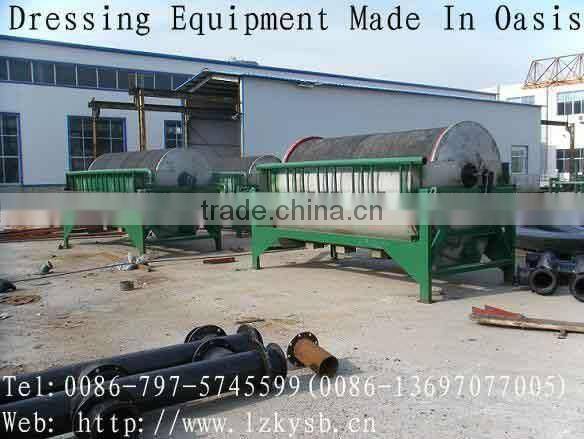

Magnetic wet drum separator for semi-backflow tank
Monocular wet to do a half turn counter-current magnetic drum magnetic separator Magnetic wet drum separator for semi-backflow tank
The CTB / S / N magnetic separator is mainly used for wet weak magnetic sorting or remove fine particles strong magnetic minerals, widely used in mineral processing, coal preparation and chemical industries. In the wet magnetic separation operations, if the access to clean magnetic minerals, usually selected downstream-type magnetic separator (for less than 6 mm); if required to maximize the recovery of magnetic minerals, then the selection of reflux-type magnetic separator (for less than 0.8 mm); when the drug taking into account the grade and recovery of magnetic minerals, when to use semi-reflux separator (for less than 1 mm), magnetic field strength from 100 gauss to 6800 gauss between the
1 Tesla (T) = 1000 mT (mT) = 10000 gauss (Gs)
Model | Diameter | Tube | Magnetic induction density | speed | Partide sorting |
Capacity | Power | Weight | |
mm | mm | Mt | r/min | mm | t/h | m3/h | Kw | kg | |
400/400 | 400 | 400 | 100-600 | 48 | 0.8-6 | 0.5-1 | 1.5-3 | 1.1 | 301 |
400/900 | 400 | 900 | 100 | 48 | 0.8 | 2-5 | 6-12 | 1.1 | 468 |
500/600 | 500 | 600 | 100 | 44 | 0.8 | 3-7 | 9-21 | 1.5 | 423 |
500/1200 | 500 | 1200 | 100 | 44 | 0.8 | 5-15 | 15-45 | 1.5 | 711 |
600/900 | 600 | 900 | 100 | 39 | 0.8 | 8-15 | 24-45 | 2.2 | 678 |
600/1200 | 600 | 1200 | 100 | 39 | 0.8 | 10-20 | 30-60 | 2.2 | 846 |
750/900 | 750 | 900 | 100 | 35 | 0.8 | 10-25 | 30-75 | 2.2 | 736 |
750/1800 | 750 | 1800 | 100 | 35 | 0.8 | 20-45 | 60-135 | 3 | 1268 |
900/1800 | 900 | 1800 | 100 | 31 | 0.8 | 25-55 | 75-165 | 4 | 1456 |
1050/2100 | 1050
| 2100 | 100 | 22 | 0.8 | 45-88 | 135-264 | 5.5 | 2006 |
1200/2400 | 1200 | 2400 | 100 | 19 | 0.8 | 65-100 | 195-300 | 7.5 | 3968 |
