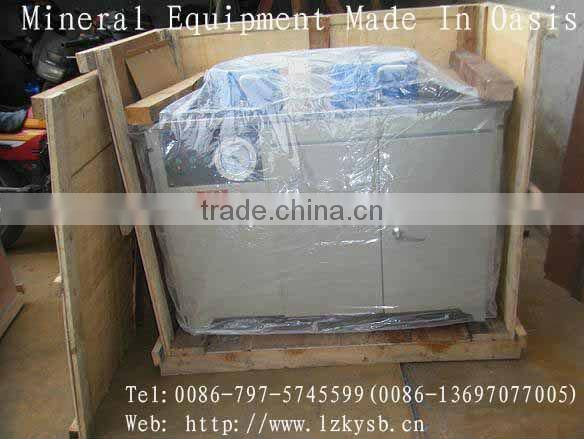

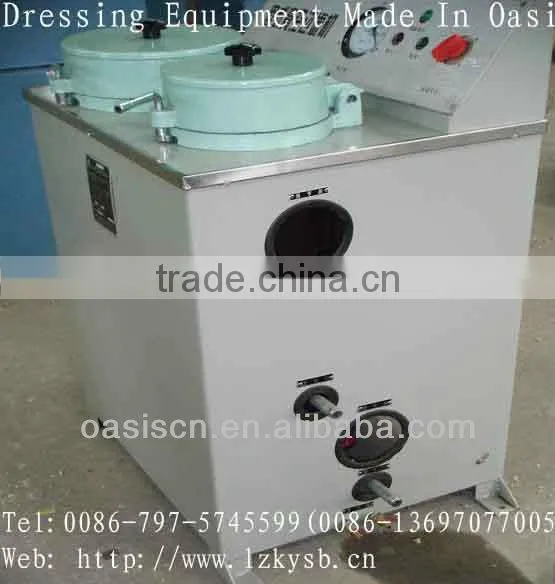

Help CenterDisk Vacuum Filter/Pony Dressing Machine/Concentrating Machine/Ore Dresser Machine/Dresser Machine/ Beneficiation Machine
Related Products
-
Hydraulic Classification Box/Power Graduation Box/Classifiers Products/Classifying Ore(Mineral) Equipment/Sizer/ClassifierUS$ 111 - 6,666MOQ: 1 Set -
High Gradient Magnetic Separator MachineUS$ 90,000 - 98,000MOQ: 1 Set
-
Iron Sand Big Magnetic SeparatorUS$ 92,000 - 96,000MOQ: 1 Set
-
Hematite Magnetic Separator for Hematite ConcentrationUS$ 92,000 - 96,000MOQ: 1 Set
-
Mining Equipment/Wet Drum Type Magnetic SeparatorUS$ 92,000 - 95,000MOQ: 1 Set
Technical Parameter of laboratory Vertical Sand Pump

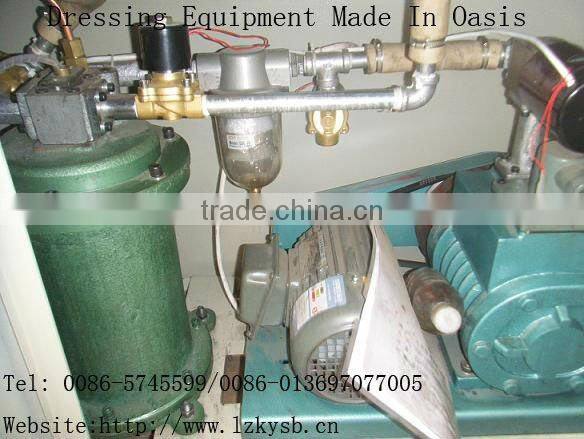

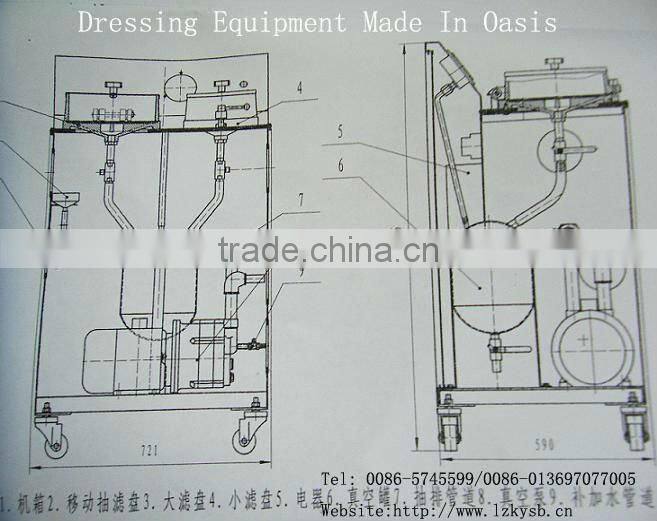

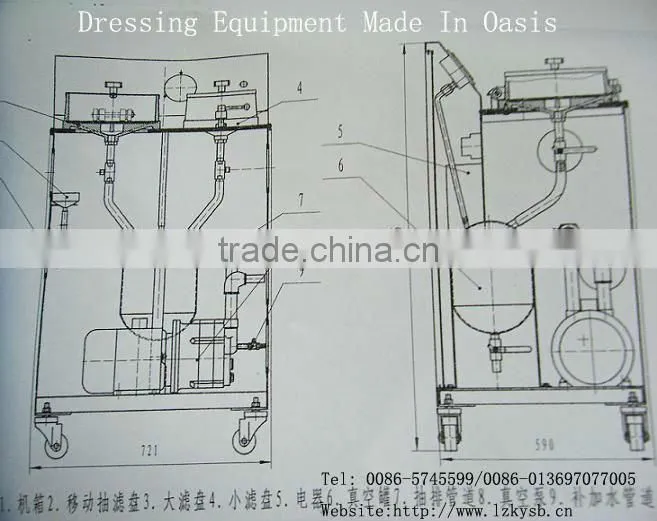

DL-5 XTLZ-type multi-disc vacuum filter used in geological, metallurgical, coal, building materials, mines, schools, scientific research and experiments to carry out mineral optional units in the experimental work, as a flotation, re-election, magnetic and other operations After dehydration, test sample, solid-liquid separation. Machine mainly by the vacuum pump, Manifold air filter device, vacuum tank, and two filter disk group or its drainage through controlled automatic drainage, to achieve the purpose of solid-liquid separation. This product is the only designated former Ministry of Geology and Mineral production, the implementation of industry standards.
The device is a kind of filter can be intermittent or continuous laboratory-type filtration equipment can be used as product dehydration, the use of solid-liquid separation, simple structure, operation, convenient maintenance, filtering effects of high adaptability, for difficult to filter and concentration of minerals lower pulp filtration, the effect is most remarkable.
Model |
Uite |
DL-5C 240/120 |
XTLZ 260/200 |
Disc diameter |
mm |
grail 240 pannikin 120 |
grail 260 pannikin 200 |
Vaccum pressure |
KPA |
91.2 |
80 |
Pulp solid-liquid ratio |
|
1 (4-7) |
1 (4-7) |
Feed size |
mm |
0.5 |
0.5 |
Dry material capa |
g |
500 |
600 |
Filter time |
min |
1-10 |
1-10 |
Output water time |
s |
30 |
30 |
Cake moisture |
% |
20 |
20 |
Voltage |
v |
380 |
380 |
power |
kw |
1.6 |
1.5 |
Overall dimensions |
mm |
1030/420/970 |
6500/5400/1140 |
Weighe |
kg |
160 |
200 |
