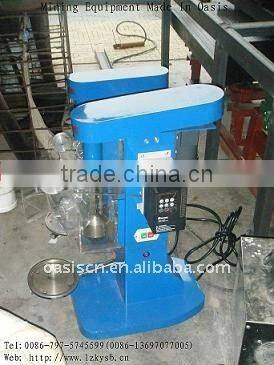

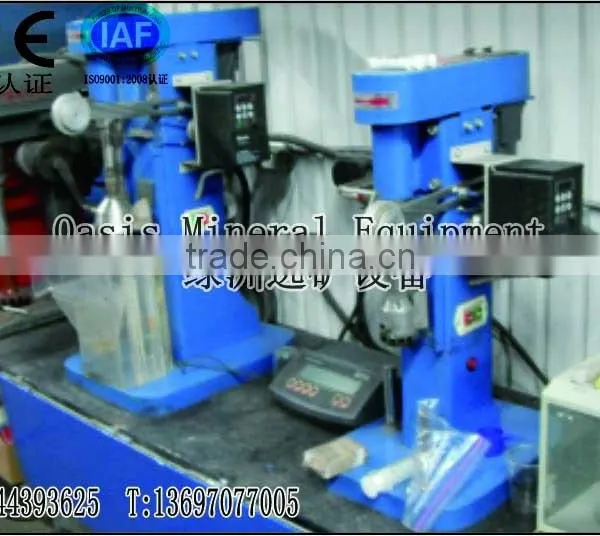

XFD Lab Flotation machine (China famous)

Specifications

Ad:
1.easy to operate
2.nergy-saving,
3.high efficiency

Technical Parameter of laboratory XFD Single Flotation Cell

XFD Series Single Flotation Cell is provided for flotation of minor ore samples in labs of geological,metallurgical,chemical and other industries. The product is produced by the only enterprise designated by the former Ministry of Geology and Mineral Mineral Resources,in compliance with the Industrial standards

XFD second-generation new product has a variable frequency technology, digital display, adjust the precise, reliable operation and so on.
XFD third-generation new product has a variable frequency technology, digital display, adjust the precise, reliable operation characteristics, and the other heat pipes, temperature control device, at any time control, display tank mine fluid temperature, plus automatic adjustment of fill with water, automatic drug delivery devices such as



Model	Volume of tank	Impeller diamete	Impeller speed	Scraper speed	Power	Overall dimensions	Weight
Granularity for  0.2 mm	L	mm	r/min	r/min	w	mm	kg
XFD0.5L	1.5	45	2130-2590	15/30	90	635/338/700	30
XFD0.75L	0.75	45	2130-2590	15/30	90	635/338/700	30
XFD1L	1	55	1700-2100	15/30	90	635/338/700	30
XFD1.5L	1.5	60	1590-1910	15/30	90	635/338/700	33
XFD3L	3	70	1544-1890	8/20	120	683/350/822	50
XFD8L	8	100	1400	8.6/13/17	250	740/350/867	71
