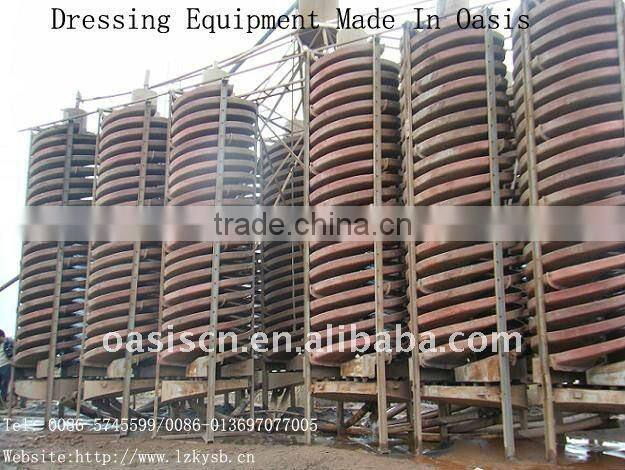

Help CenterMineral Spiral Sluice Concentrator
Related Products
-
Gravity Concentration Seprating ProcessUS$ 8,600 - 68,000MOQ: 1 Set -
Tungsten Ore Concentration Machinery/ Shaker Table With Separator GoldUS$ 1,600 - 68,000MOQ: 1 Quart
-
Jigger Machine,jigging Equipment,gold Machine,gravity Separation EquipmentUS$ 1,100 - 5,800MOQ: 1 Set
-
LS Table Concentrator and Shaking Table for Separate GoldUS$ 1,180 - 11,800MOQ: 1 Set
-
LS Shake Bed/ 6S Shaking TableUS$ 880 - 1,800MOQ: 1 Set
Specifications
Feature & Benefits1.Reasonable structure and small occupation area
2.High recovery, high efficiency, and precise separati
Applications
spiral concentrator/spiral sluice It has been used in to classify the granularity 0.3-0.02 millimeters fine grain like iron, tin, tungsten, tantalum-niobium, gold ore, coal mine, monazite, rutile, zircon and other metals. The non-metallic minerals which have a big enough specific gravity difference.
Descriptions
Spiral concentrator is our company's concentrating experienced scientific product, which is the best concentrating equipment, especially for concentrating sand ore in seashore and riverside.
The product is made of the fiberglass lined with wear-resistant polyurethane and corundum cover; the advantages are light, moisture proof, and anti-rust, corrosive proof and no noise, properly suitable for the different feeding particle sizes and grades. It is the domestic advanced level, the new highly effective equipment.
This company uses the newest design and a complete set of technology organization produced and strict quality testing to guarantee each specification of spiral separator qualified.
We make the serialized with a special kind of grooved spiral separator to be selected by colored, ferrous metal mine, coal chemical industry, coal dressing, sulfur factory as well as the scientific research, the design department, the colleges and universities test chamber.
;
Technical Specification
Model | 5LL-1500 | 5LL-1200 | 5LL-900 | 5LL-600 | 5LL-400 | |
Outside dia(mm) | 1500 | 1200 | 900 | 600 | 400 | |
pitch(mm) | 540,720 | 900,720,540 | 675,540,405 | 450,360,270 | 240,180 | |
Pitch Dia Ratio | 0.75,0.6,0.45 | 0.75,0.6,0.45 | 0.75,0.6,0.45 | 0.75,0.6,0.45 | 0.6,0.45 | |
Lateral slope | 9° | 9° | 9° | 9° | 9° | |
Maximum starts per column | 4-2 | 4-2 | 4-2 | 3 | 2 | |
Feeding Size(mm) | 0.3-0.02 | 0.3-0.03 | 0.3-0.03 | 0.2-0.02 | 0.2-0.02 | |
Feeding Density(%) | 25-55 | 25-55 | 25-55 | 25-55 | 25-55 | |
Capacity(T/H) | 8-6 | 4-6 | 2-3 | 0.8-1.2 | 0.15-0.2 | |
External Size | Length(mm) | 1560 | 1360 | 1060 | 700 | 460 |
Width(mm) | 1560 | 1360 | 1060 | 700 | 460 | |
Height(mm) | 5230 | 5230 | 4000 | 2600 | 1500 | |
Weight (Kg) | 800 | 600 | 400 | 150 | 50 | |
