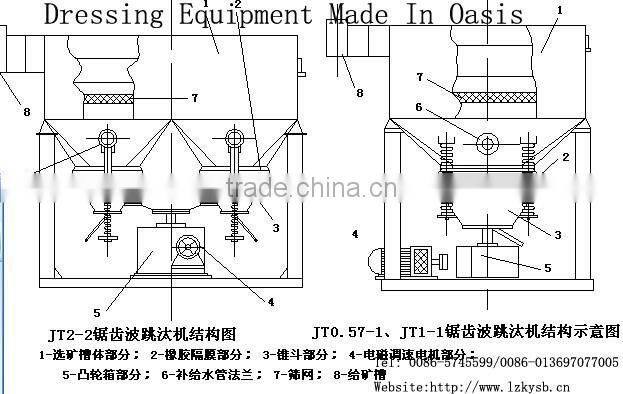

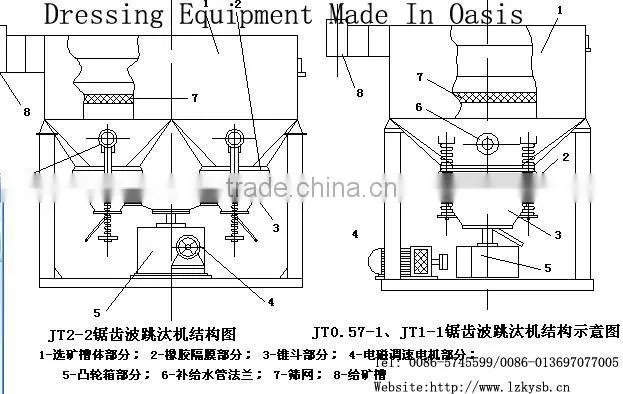

thtraditional jig according to the distribution rule of jigging bed theory, its jig pulse curve likes the saw-tooth waveform which makes the upward flow faster than the downward; the upward flow time is short, the downward is long, which overcomes the shortcoming of upward flow, downward flow and action time produced by the sine-wave pulse curve, enhances the loose degree of the bed and alleviates the inhalation effects, then the heavy mineral particles in the ore are fully settlement, which enhances the sorting ratio and recovery of equipment. Compared with the sine-wave jig, the recovery of Sn increases 3.01%, W: 5.5%, Pb: 1.63%, Zn: 2.04%, respectively; water consumption is reduced by 30%-40%, site area is decreased 1/3, the stroke can be adjusted, dragging by the electromagnetic adjustable speed motor makes the pumping speed can be adjusted endlessly. Its performance reaches the domestic advanced level, it is one of the ideal energy-saving gravity concentration equipments.
Jig is a new type of energy saving and high efficient gravity separation equipment,the jig’s Max input size is 30mm,Can achieve a good result in processing such as placer gold, tungsten,iron, tin, hematite, copper, tantalum-niobium, titanium, manganese, barite, zirconium, chrome and gemstone etc
Model | Hutch area( | Stroke(mm) | Frequency of stroke(r/min | Input Size(mm) | Makeup water (m³/h) | Makeup water pressure(Mpa) | Capacity(t/h) | Power(kw) | Dimensions(mm) | Weight(Kg) |
100/150 | 0.03 | 20 | 420 | 3 | 0.1-0.2 | ≥0.05 | 0.02-0.1 | 0.4 | 752/520/1310 | 150 |
200/300 | 0.06 | 32 | 346 | 6 | 0.2-0.3 | ≥0.05 | 0.5-0.7 | 0.75 | 1100/560/1310 | 175 |
0.75-1 | 0.57 | 12-21 | 60-180 | <10 | 1-2 | ≥0.05 | 0.4-0.6 | 1.5 | 1550/780/1530 | 610 |
1-1 | 0.74 | 15-25 | 60-156 | <15 | 2-3 | ≥0.05 | 2-3 | 2.2 | 2170/1110/1890 | 920 |
2-2 | 2.28 | 12-17 | 60-180 | <15 | 2-4 | ≥0.05 | 6-10 | 3 | 2560/1450/2250 | 1640 |
3-1 | 3.3 | 12-30 | 80-100 | <20 | 3-6 | ≥0.05 | 10-15 | 5.5 | 3145/1820/2330 | 3080 |
4-2 | 4 | 7-26 | 80-150 | <30 | 4-8 | ≥0.05 | 12-16 | 7.5 | 3540/1990/2550 | 3360 |
5-2 | 4.86 | 15-25 | 80-110 | <30 | 5-10 | ≥0.05 | 12-30 | 7.5 | 3650/2120/2610 | 3650 |
300/450 | 0.27 | 0-25 | 320-420 | <12 | 1-2 | ≥0.05 | 2-4 | 1.1 | 1220/1020/1550 | 630 |
360/370 | 0.27 | 5-25 | 320 | <6 | 1-2 | ≥0.05 | 1-3 | 1.1 | 1030/560/1550 | 360 |
1/1M | 2 | 3-26 | 250-350 | <30 | 5-10 | ≥0.05 | 15-25 | 2.2 | 2820/1830/2210 | 1510 |
