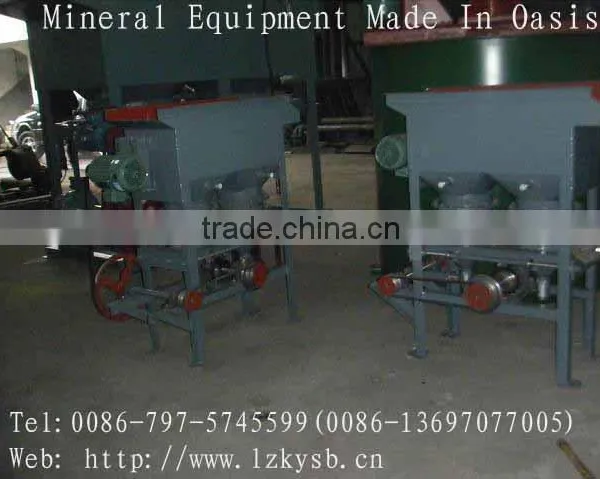

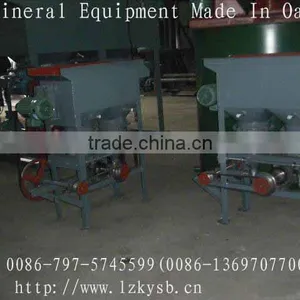

Diaphragm Jig is mostly transformed from Denver jigs. Their beds are stable and sorting effects are good. The dissepiment and transmission mechanism are at one side of the jig and is thus easy for maintenance. it is often used for fine screening and coarse screening.
It has simple operation, large capacity, and can obtain the final concentration or the tailing in one beneficiation. So it is widely used in dealing with the coarse or medium-grained ore. It is suitable for classification the larger differential density of tungsten, tin, iron, manganese and chrome ore; also for ferrous metal and non-ferrous metals containing the gold and rare metals.
Structure

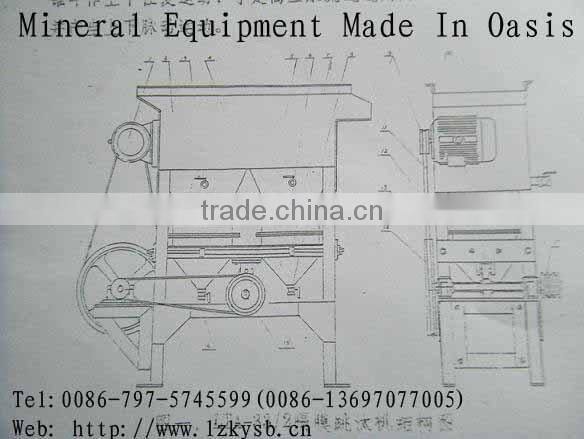

Diaphragm Jig is mainly composed of jig box, drive device, water distribution, diaphragm and bibcock. There are two jig buckets with different sizes and each diaphragm is divided into jig area and diaphragm area by clapboard. The rubber diaphragm pumping to make medium (water) moving is the jigging course. The triangle belt drives big belt pulley by electromotor so connecting rod of the eccentric gear and rocker are up and down moving. Another connecting rod is connected with the rubber diaphragm which is moving up and down to jig.
When the feed ores are sent to jig chamber, the ores are separated to different layers in the medium by the pulsation of diaphragm. The light but weight is sank to the tank of jig bucket through the spaces of materials of artificial bed layer and its sieve holes but the coarse but light is washed to the discharge end of screen by medium. Because the back jig chamber is lower 50mm than front jig chamber, the light ores is overflowed through front jig chamber to the back chamber and jigged again. If needed, the place of end plate can be adjusted to control the discharge amount. The concentrate in tank can be discharged by discharge tube regularly.
Technical parameters
model |
chamber No |
jig area m2 |
Feed Size mm |
Capacity t/h |
Stroke mm |
Frequency r/min |
Supply Water Rate t/h |
Water Pressure kg/cm |
Power kw |
|
100×150 Jig |
1 |
0.15 |
-3 |
0.18-0.6 |
- |
420 |
- |
1-1.5 |
0.55 |
|
300×450 Jig |
2 |
0.27 |
-12 |
3-6 |
0-26 |
322 |
2-4 |
1-1.5 |
1.1 |
|
1000×1000 Underside Acting ig |
2 |
2 |
1-5 |
10-25 |
0-26 |
200-350 |
60-80 |
0.6-2 |
1.5 |
|
370×360 Underside Acting Diaphragm Jig |
2 |
0.26 |
6 |
1-3 |
5-25 |
200-250 |
2-5 |
- |
1.1 |
|
Trapezoid Jig |
3 |
2.7 |
-3 |
12.5-37.5 |
13-21 |
170-230 |
60-90 |
2 |
1.1 |
670×920 |
2 |
1.44 |
4-8 |
7-10 |
18-24 |
240-300 |
- |
- |
|
