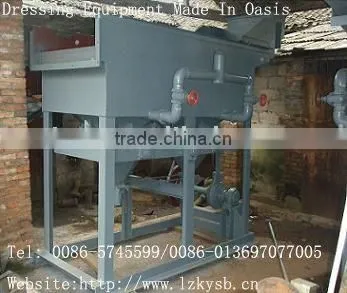

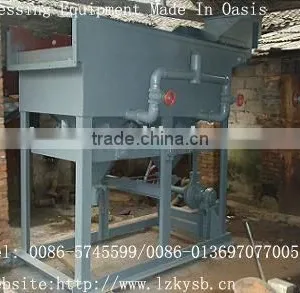

LTA1010 / 2 cone at the end of jig instructions:
The jig is the most advanced R & D new line jig, professional used to select a manganese ore, the mineral particles larger
Modern jig beneficiation mainly refers to the medium flow in the vertical speed sorting process carried out. Used in accordance with the different media, there is water jigging jigging jigging and wind-divided, the actual production to the most widely used hydraulic jigging.
The best selection Jig manganese ore, tungsten ore, crystals, particles larger mines.
Jig sorting, the ore into the jig to the sieve plate, forming a dense material layer, called the bed from below through a sieve into the cycle of land to the alternating up and down the water flow (either increase or intermittent interruption down flow). Increase in the flow period, the bed being lifted loosely to mean the transfer of heavy mineral particles tend to bottom. Till water turned, the movement, a loose bed-degree reduction, beginning with the movement of coarse particles becomes difficult, after the bed getting closer and closer, only a small gap of mineral particles can penetrate downward movement, movement known as drilling gap. Decline in water flow stopped, layering also temporarily suspended. Until the second cycle starts, but also the continuation of such hierarchical motion. Endless loop so the final density of the ore concentrate particles to the bottom density of the ore particles into the upper and completed according to the density stratification.
This machine is to change the direction of movement by rotating the direction of arm movement, adjust the length of the stroke to achieve a better separation of indicators
Technical parameters:
Type: LTA1010 / 2 feed size :1-5 mm mesh size; 2/10 square tapered at the end of stroke 0-26 mm Cone at the end of vibration sub 250 300 350 times / min Capacity :2-20 tons / hour
Motor Power: 2.2 kilowatts Overall dimensions: 3.2 m / 1.7 m / 2.6 m Machine weight: 1.6 tons
