Specifications
Oasis company specialized production lab and large mining machine.Oasis machines passed ISO9001:2008(Tel008613697077005)ShiCheng Oasis Mineral Equipment Manufacturing Co., LTD(0086-797-5745599

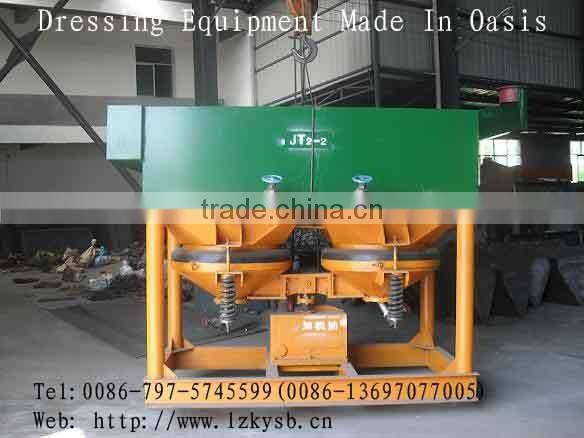

Product Name: sawtooth jig
Sawtooth jig is my factory and research units to develop energy-saving and efficient new products, which is the key equipment of gravity beneficiation. Because of its processing capacity, a wide range of particle size sorting, high recovery rate, the effect is good, it is widely used in sorting gold, tin, tungsten, lead, zinc, antimony, manganese, diamond, iron ore and other mines and mining Non-ferrous Metallurgy Kim on board. And such products JT4-2, JT1.5-2-type sawtooth jig large particles, giving the largest ore particle size of up to 30MM, with the next row of sieve sieve mine. Applied to barite ore, manganese ore, iron ore and other mineral ores, more to the ore size range is wide, the next screen a significant reduction in water supply and so on.
Sawtooth jig Technical Performance Table
|
Parameters Model |
Jigging chamber |
Diaphragm |
mm To the ore size mm |
Sieve under water recharge m3 / + Mine |
Supply water pressure Mpa Mpa |
Capacity t/h t / h |
kw Motor Power kw |
mm Dimension mm |
kg Weight kg |
Notes |
||
Shape |
m2 Area m2 |
mm Stroke mm |
Chong times Times / min |
|||||||||
JT0.57-1 JT0.57-1 |
Ladder |
0.57 0.57 |
( M12 ) 8.5 — 12 (M12) 8.5 - 12 ( M17 ) 10 — 17 (M17) 10 - 17 |
80-180 80-180 |
<6 "6 |
1-3 1-3 |
≥ 0.05 ≥ 0.05 |
1-2.5 1-2.5 |
1.5 1.5 |
1550 × 780 × 1530 1550 × 780 × 1530 |
610 610 |
|
JT1-1 JT1-1 |
Ladder |
1.04 1.04 |
<10 "10 |
1-3 1-3 |
2-4 2-4 |
2.2 2.2 |
2270 × 1110 × 1890 2270 × 1110 × 1890 |
900 900 |
|
|||
JT2-2 JT2-2 |
Rectangular |
2.28 2.28 |
<10 "10 |
1-3 1-3 |
4-8 4-8 |
3 3 |
3225 × 1550 × 2050 3225 × 1550 × 2050 |
1640 1640 |
|
|||
JT3-1 JT3-1 |
Ladder |
3.3 3.3 |
M15 M15 M20 M20 M25 M25 |
80-120 80-120 |
<10 "10 |
1-3 1-3 |
≥ 0.05 ≥ 0.05 |
6-10 6-10 |
5.5 5.5 |
3180 × 2000 × 3030 3180 × 2000 × 3030 |
3260 3260 |
|
JT5-2 JT5-2 |
Ladder |
4.86 4.86 |
<10 "10 |
1-3 1-3 |
10-15 10-15 |
7.5 7.5 |
3600 × 2000 × 2600 3600 × 2000 × 2600 |
4500 4500 |
|
|||
JT1.5-2 JT1.5-2 |
Rectangular |
1.53 1.53 |
M25 M25 |
80-120 80-120 |
<30 "30 |
1-2 1-2 |
≥ 0.05 ≥ 0.05 |
5-8 5-8 |
3 3 |
3200 × 1550 × 2050 3200 × 1550 × 2050 |
1520 1520 |
Large granular Jig |
JT4-2 JT4-2 |
Rectangular |
4.33 4.33 |
M30 M30 |
<30 "30 |
1-2 1-2 |
10-15 10-15 |
7.5 7.5 |
3600 × 1850 × 2600 3600 × 1850 × 2600 |
4600 4600 |
Large granular Jig |
||
Note: The handling capacity and supply water with the particle size of ore, ore properties and operating conditions vary.
