Hematite Ore Jig/Mining Jig Concentrator

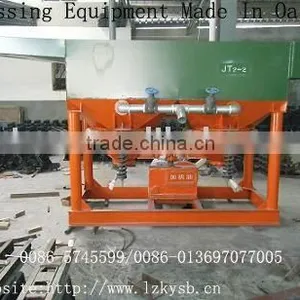

Hematite Ore Jig/Mining Jig Concentrator thumbnail-1

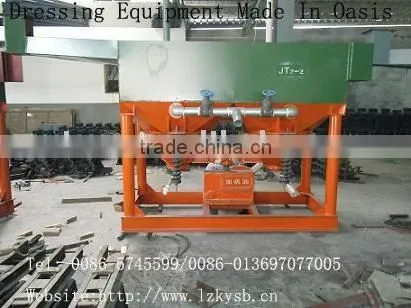

Hematite Ore Jig/Mining Jig Concentrator photo-1
US$ 780 - 6,180 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangxi, China
Brand Name:
OASIS
Model Number:
JT/LTA
Contact Supplier Request Quote Chat Now
Shicheng Oasis Mineral Equipment Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
XiaMen/GuangZhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangxi, China
Brand Name OASIS
Model Number JT/LTA
Condition New

Specifications

Oasis company specialized production lab and large mining machine.Oasis machines passed ISO9001:2008(Tel008613697077005)

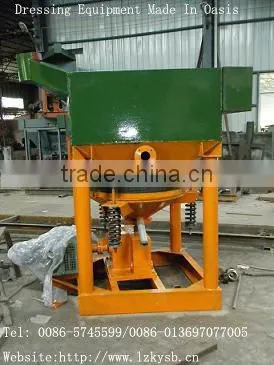

hematite ore jig/Mining Jig Concentrator



hematite ore jig/Mining Jig ConcentratorShiCheng Oasis Mineral Equipment Manufacturing Co., LTD(0086-797-5745599



High quality ,precision manufacturing
High capacity, high recovery ratio
Energy conversation, wide use

Jig is one of the relative new methods for gravity concentration. As a rougher or cleaner device, it is widely applied on the separation of gold, tin, tungsten, titanium, hematite, coal and other minerals due to its high processing capacity, large range of separation size and simplicity of operation and maintenance.

Sawtooth wave jig is a new type of jigs,It is one of the types of modern gravity separation equipment. New it has formed series whose use is expanded. Such type of jig uses electromagnetic stepless speed regulation which features even rotation, smooth ore current, strong adaptability to selected materials, good separation effects of medium and fine grains,  and water saving.



Sawtooth wave jig is a energy-saving gravity concentration device which is based on the traditional jig according to the distribution rule of jigging bed theory, its jig pulse curve likes the saw-tooth waveform which makes the upward flow faster than the downward; the upward flow time is short, the downward is long, which overcomes the shortcoming of upward flow, downward flow and action time produced by the sine-wave pulse curve, enhances the loose degree of the bed and alleviates the inhalation effects, then the heavy mineral particles in the ore are fully settlement, which enhances the sorting ratio and recovery of equipment. Compared with the sine-wave jig, the recovery of Sn increases 3.01%, W: 5.5%, Pb: 1.63%, Zn: 2.04%, respectively; water consumption is reduced by 30%-40%, site area is decreased 1/3, the stroke can be adjusted, dragging by the electromagnetic adjustable speed motor makes the pumping speed can be adjusted endlessly. Its performance reaches the domestic advanced level, it is one of the ideal energy-saving gravity concentration equipments.



Model

JT1-1

JT2-2

JT3-1

JT4-2

JT5-2







Jigging

Chamber



Shape

trapezoidal

rectangular

trapezoidal

rectangular

trapezoidal

Length

(mm)

450~900

1070

960~2000

1510

1200~2000

Width

(mm)

1500

1070

1950

1510

3150

Column

Number

single

single

single

single

single

Chamber

Number

(one)

1

2

1

2

2

Single

Area

(m2)

1

1.14

3.3

2.28

2.12(single)

2.77(double)

Aggregate

Area

(m2)

1

2.28

3.3

4.56

5

Feeding Particle

Size(mm)

5

5

<20

8

8

Processing

Capacity

(t/h)

2~3

7.5~15

10~15

12~16

10~20

Water consumption

(m3/h)

1~2

1~2

1~2

1~2

1~2

diaphragm

stroke

(mm)

15,20,25

12,17

10~47

6.5~26

15,20,25

frequency

(min-1)

80,100,120

60~200

80~100

80~150

80~110

motor

model

YCT160-4A

YCT32-4

YCT-4B

YCT160-4B

YCT200-4A

power

(kw)

2.2

3

5.5

5.5

One chamber

7.5

Two chamber

5.5

One chamber

7.5

Two chamber

dimensions

(mm)

2060×1112×1890

3225×1550×2150

2662×2000×3030

4240×1990×2750

3940×2006×2580

weight(kg)

914

1637

3260

3500

3854
