Product Details
Condition: | New | Type: | Other, Sprial Separator, 6S,LY | Place of Origin: | Jiangxi, China |
Brand Name: | OASIS | Model Number: | YU | Certification: | ISO9001:2008 |
Product Description
ShiCheng Oasis Mineral Equipment Manufacturing Co., LTD(0086-797-5745599 )are production :
High quality ,precision manufacturing
High concentration ratio ,High recovery ratio
Shaking table which is also called table concentrator, is one of the main equipments of gravity concentration.
It is not only widely applied on separating Gold, Tungsten, Tin, Manganese, Iron, Titanium, Zircon, Tantalum, Barium, Chrome, Lead, Zinc, Mercury, Copper, Aluminum ,and other rare metals and the noble metal ore, also applied on sorting coal.
When dealing with the metal ore, the shaker effective recycling granularity scope is 2-0.037 millimeters.
Structure and Style
Three major parts: Head motion, Deck and support device.
Head Motion:
We have three styles of Head motions:6-S Head motion, Yunxi Head motion and LY Head motion. They are made from cast iron machining. They are Easy installation and maintenance, Simple operation.

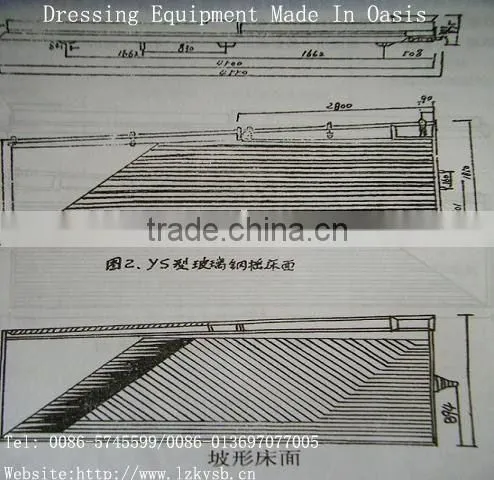

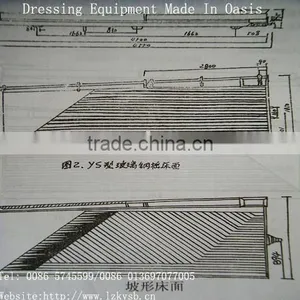

Deck:
We have three styles of deck depend on the different particle size of raw ore. Coarse Ore Deck, Fine Sand Deck and Slime Deck. The decks are constructed of steel framework and covered fiberglass with corundum, this cover its strength reaches as high as 70% of steel, the features of this design are stronger, wear-resistant, Corrosion-resistant, and no distortion, it lengthens the working-life of machine and thus allows machine perform perfectly on different mineral and different weather condition.
Support device:
We have three supporting device types: Tradition type, groove steel support and big channel steel support, The groove support and. Big channel steel support are easy to installation and move.
Features
High enrichment ratio,
High separation precision,
High efficiency beneficiation,
High recovery ratio,
Easy installation and maintenance,
Simple operation,
The work safe and reliable,
Long working life,
It can eventually get the concentrates and tailings.
Technical Parameters
Model | 6-S | 6-S | 6-S | LY | |
Deck Size | Length(mm) | 4500 | 3000 | 2100 | 1100 |
Transmission end width(mm) | 1850 | 1620 | 1050 | 500 | |
Concentrate end width(mm) | 1560 | 1110 | 850 | 430 | |
Beneficiation area(m2) | 7.67 | 4.08 | 2 | 0.51 | |
Feeding Size (mm) | Coarse sand Deck | 2-0.5 | 2-0.5 | 2-0.5 | 2-0.5 |
Fine sand Deck | 0.5-0.1 | 0.5-0.1 | 0.5-0.1 | 0.5-0.1 | |
Slime Deck | 0.1-0.037 | 0.1-0.037 | 0.1-0.037 | 0.1-0.037 | |
Feeding amount (t/h) | Coarse sand Deck | 1-2 | 0.6-1.5 | 0.4-0.8 | 0.1-0.2 |
Fine sand Deck | 0.5-1 | 0.3-0.8 | 0.2-0.5 | 0.05-0.1 | |
Slime Deck | 0.3-0.5 | 0.2-0.4 | 0.1-0.2 | 0.03-0.05 | |
Feeding Density (%) | 10-30 | 10-30 | 10-30 | 10-30 | |
Water Added (t/h) | 0.5-3 | 0.3-1.5 | 0.2-1 | 0.1-0.5 | |
Stroke (mm) | 8-36 | 10-30 | 12-28 | 9-17 | |
Frequency (F) | 240-380 | 240-420 | 240-450 | 280-460 | |
Transverse slope of Deck | 0°-5° | 0°-8° | 0°-10° | 0°-10° | |
Motor | Model | Y70L-4 | Y100L-4 | Y90L-4 | Y80L-4 |
Power (kw) | 1.1 | 1.1 | 1.1 | 0.55 | |
Weight (t) | 650 | 550 | 350 | 150 |
