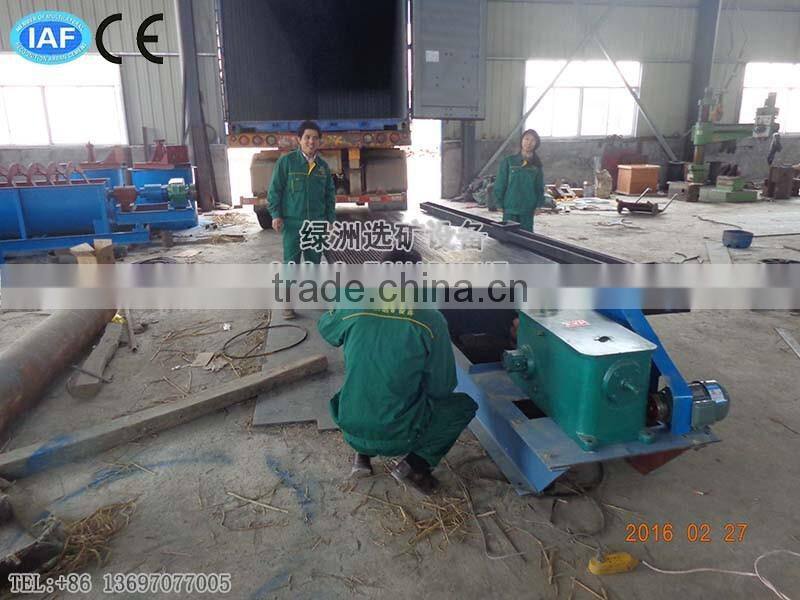

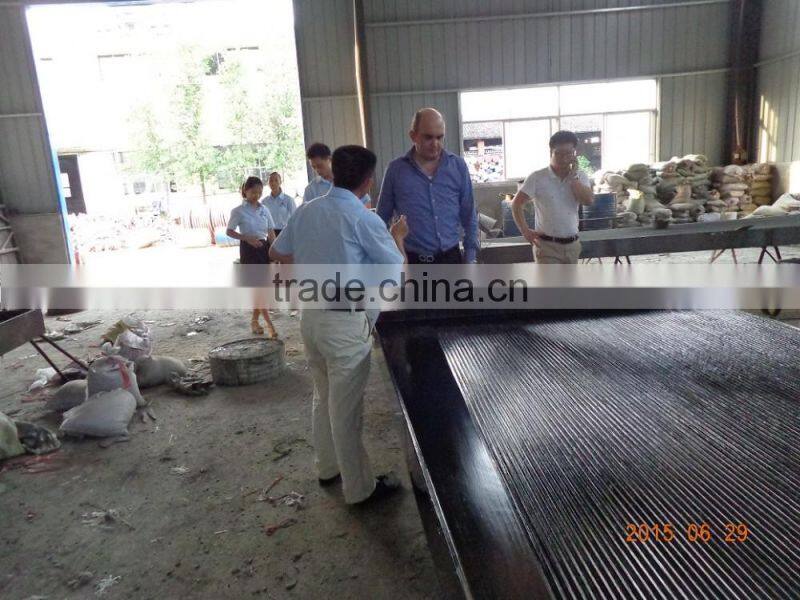

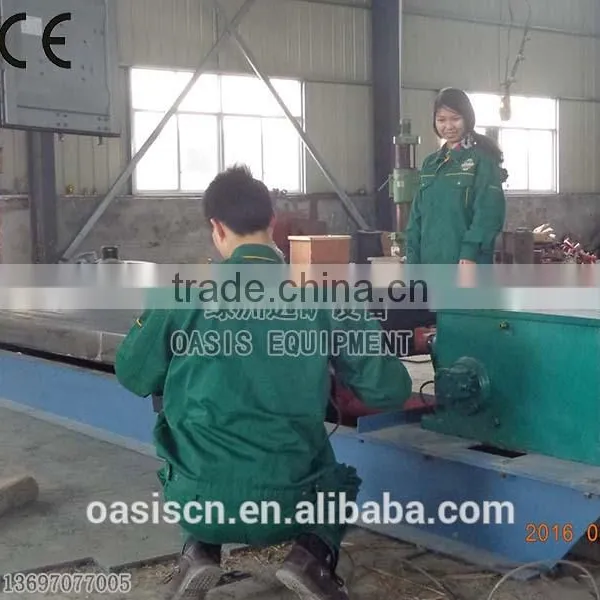

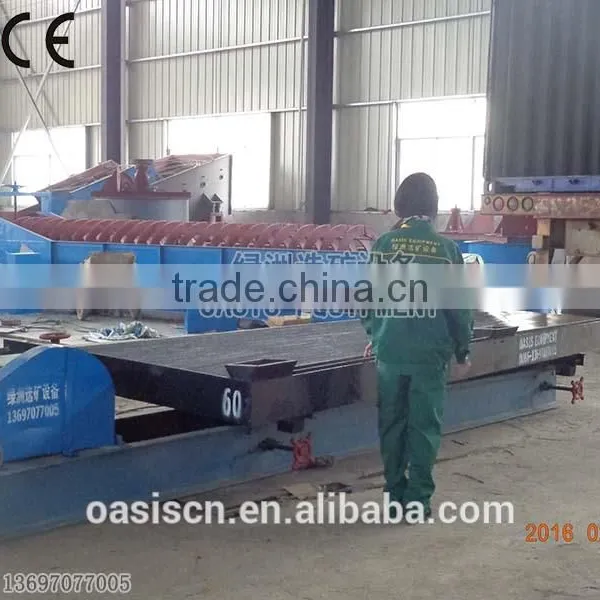

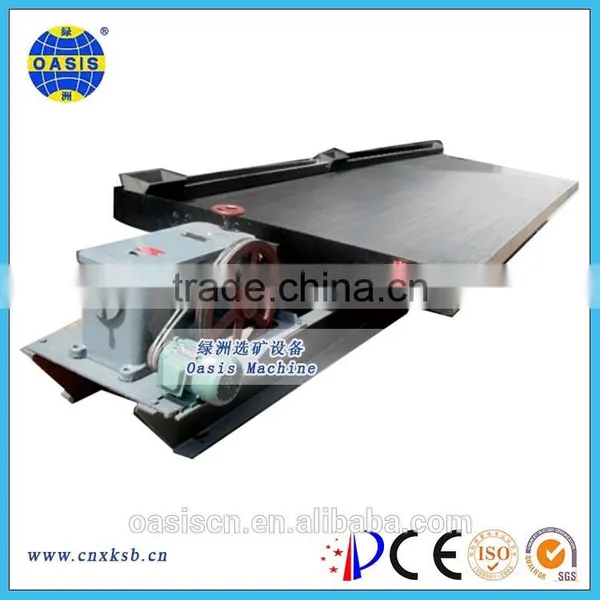

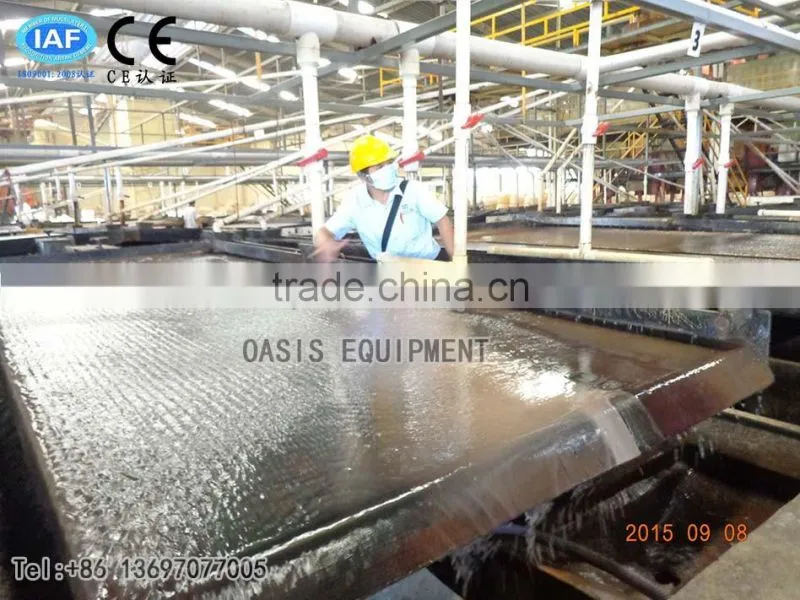

Gold Mining Machine Table Concentrator,gold shaking table,gold washing machine
Shaking table which is also called table concentrator, is a mine separation device for fine minerals working by gravity. They are effective in processing precious and base metal, rare metal and non-metallic minerals, widely used in separation of Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, etc.our shaking table can produce mob type,The coarse ore deck is designed for recovering particles size from 0.5 mm to 2 mm; the fine sand deck is designed for recovering fine particles in the range of 0.074 mm to 0.5 mm; the slime deck is designed for recovering super extremely fine particles in the range of 0.02 mm to 0.074 mm.
Model | 4LZYG | 3LZYG | LZYC7.6 | 2LZLY15.2 | LZ6S7.6 | LZ6S4.08 | LZ6S1.95 | LZLY0.5 | |
Beneficiation area () | 30.4 | 22.8 | 7.6 | 15.2 | 7.6 | 4.08 | 1.95 | 0.5 | |
adjustable layer(piece | 4 | 3 | 1 | 2 | 1 | 1 | 1 | 1 | |
Deck Size | Length (mm) | 4500 | 4500 | 4500 | 4500 | 4500 | 3000 | 2100 | 1100 |
(mm) Transmission width | 1850 | 1850 | 1850 | 1850 | 1850 | 1320 | 1050 | 500 | |
(mm) Concentrate width | 1550 | 1550 | 1550 | 1550 | 1550 | 1100 | 850 | 430 | |
feeding size (mm) | 2-0.074 | 2-0.074 | 2-0.074 | 2-0.074 | 2-0.074 | 2-0.074 | 2-0.074 | ||
Capacity (t/h) | 2-6.5 | 1.5-5 | 0.3-1.3 | 0.6-3.6 | 0.3-1.8 | 0.4-1.5 | 0.3-0.8 | 0.05-0.2 | |
Feeding density (% | 15-30 | 15-30 | 20-30 | 18-25 | 15-20 | 10-30 | 10-30 | 10-30 | |
Stroke (mm) | 8/10/12/18/20/22 | 16-22 | 11-16 | 8-16 | 6-30 | 12-28 | 9-17 | ||
Frequency of stroke (r/min | 270—360 | 240-290 | 250 | 280 | 210-320 | 250-450 | 280-460 | ||
Water consumption (t/h | 0.4-1 | 0.6-1.9 | 0.4-0.7 | 0.4-1.5 | 0.3-1.5 | 0.2-1 | 0.1-0.5 | ||
Power (Kw) | 2.2 | 1.5 | 1.5 | 1.5 | 1.1 | 1.1 | 1.1 | 0.55 | |
