Product Details
Condition: | New | Application: | Stone | Capacity(t/h): | Depends |
Place of Origin: | Jiangxi, China | Brand Name: | Oasis | Model Number: | Feeder Machine |
Power(W): | refer to specification | Dimension(L*W*H): | refer to specification | Weight: | refer to specification |
Certification: | CE ISO SGS | Warranty: | One Year Excluding Wearing Parts | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

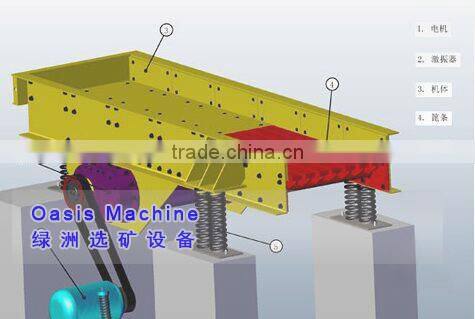

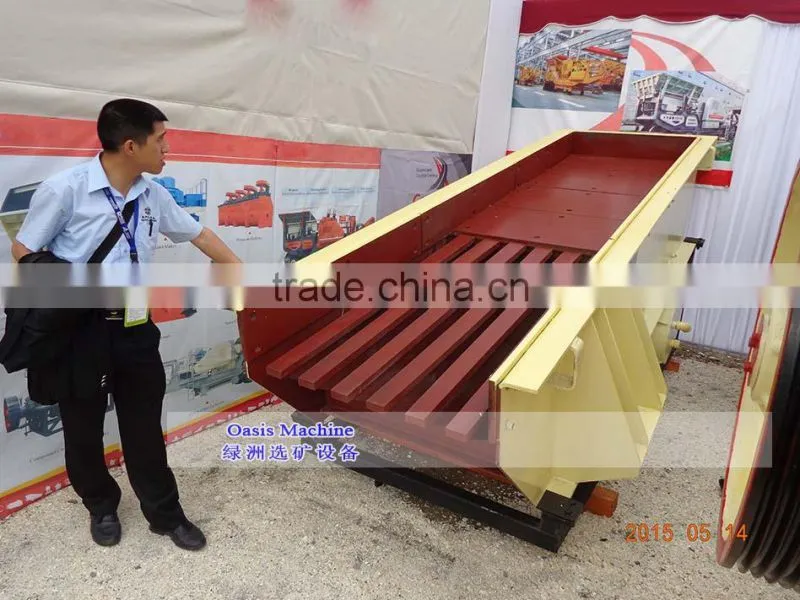

Autosyn Inertial Vibrating Feeder Machine
Vibrating feeder or vibrating grizzly feeder is mainly used to complete the feeding and batching for a variety of bulk materials in ore dressing industry,metallurgy industry,coal, chemical industry,building materials and other industrial sectors.In the production process,it can feed the massive and granular materials from the storage bin to the feeding device uniformly,timely and continuously.In the sand production line,its major role is to feed the crushing equipment and roughly screen the materials.
Vibrating Feeder Machine Technical Specifications
Model | Feed trough size(mm) | Max feed size(mm) | Trough gradient (o) | Capacity (t/h) | Power (Kw) | Weight (t) |
LZZG0828 | 800*2800 | <500 | 12 | 20-70 | 5.5 | 1.2 |
LZZG0930 | 900*3000 | <600 | 12 | 30-80 | 7.5 | 1.6 |
LZZG1030 | 1000*3000 | <700 | 12 | 30-100 | 11 | 2.1 |
LZZG1230 | 1200*3000 | <700 | 12 | 40-130 | 11 | 2.4 |
LZZG1436 | 1400*3600 | <900 | 12 | 50-180 | 15 | 3 |

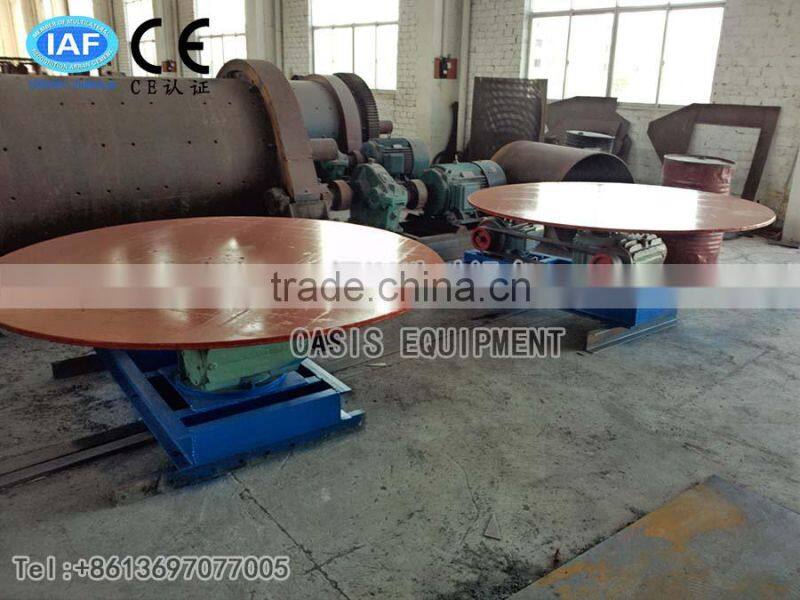

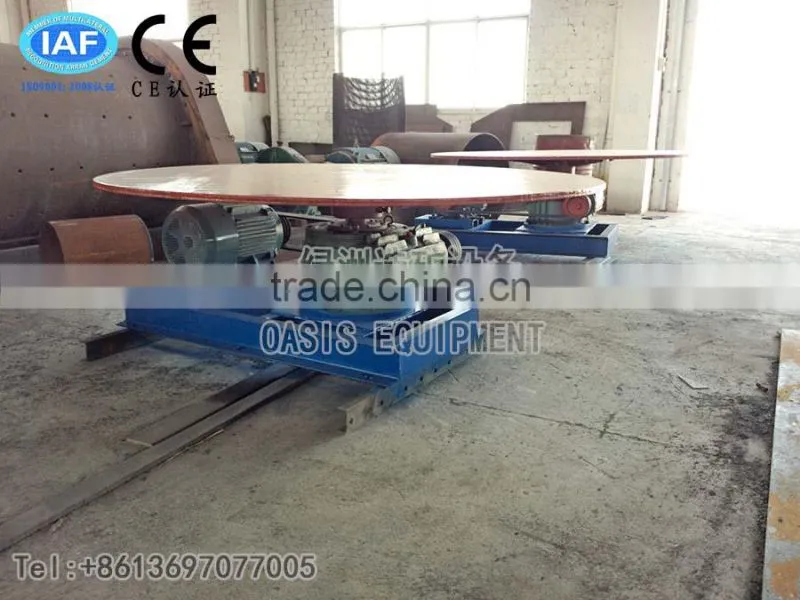

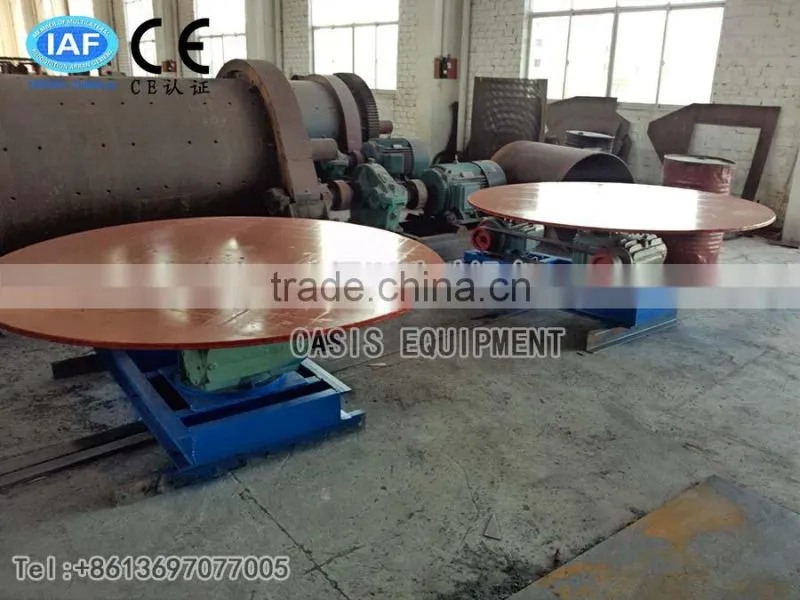

Disc Feeder Machine
It is applicable to feed non viscous material,but not suitable for powder materials with good flow ability.The suitable feeding material:powder,granular or small bulk materials such as coal powder,cement,clinker,limestone,clay,gypsum,slag etc
Disc Feeder Machine Technical Specifications:
Type | Model | Disc diameter (mm) | Rotation speed of disc(r/min) | Max feeding particle size(mm) | Capacity (m³/h) | Motor model | Motor power (kw) | Weight (kg) |
Enclosed hanged | LZYG300 | 300 | 10.0 | 20 | 0-1.8 | Y80L-4 | 0.55 | 115 |
LZYG400 | 400 | 10.7 | 20 | 0-2.6 | Y90L-6 | 1.1 | 120 | |
LZYG500 | 500 | 10.7 | 20 | 0-3.3 | Y90L-6 | 1.1 | 124 | |
LZYG600 | 600 | 8 | 25 | 3.9 | Y90L-6 | 1.1 | 455 | |
LZYG800 | 800 | 8 | 30 | 7.6 | Y90L-6 | 1.1 | 542 | |
LZYG1000 | 1000 | 7.5 | 40 | 16.7 | Y100L-6 | 1.5 | 870 | |
LZYG1500 | 1600 | 8 | 60 | 48 | Y132M1-6 | 4 | 2170 | |
Open hanged | LZDK600 | 600 | 8 | 25 | 3.9 | Y90L-6 | 1.1 | 403 |
LZDK800 | 800 | 8 | 30 | 7.6 | Y90L-6 | 1.1 | 500 | |
LZDK1000 | 1000 | 7.50 | 40 | 16.7 | Y100L-6 | 1.5 | 790 | |
LZDK1300 | 1300 | 6.5 | 50 | 28 | Y112M-6 | 2.2 | 1110 | |
LZDK1600 | 1600 | 6 | 60 | 48.6 | Y132M1-6 | 4 | 1980 | |
LZDK1800 | 1800 | 5 | 70 | 60 | Y132M2-6 | 5.5 | 2836 | |
LZDK2000 | 2000 | 5 | 80 | 88.4 | Y132M2-6 | 5.5 | 3070 |
Our Services
♦ Pre-sale services: Passion &thoughtful
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
♦ Sale services: Oversea Technicians
Oversea technicians will be sent to the jobsite for guiding the installation training operators and finishing the check and accept together with you.
♦ After-sale services: Faithfulness
One year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
Company Information
—We have passed ISO9001:2008 and CE and SGS certification
—Our products have obtained the title of "China High Quality Well-Known Products".
—Our products are sold to more than 28 provinces/cities in China and are exported to Russia, Africa, Indonesia ,the Middle East, Philippines, Mongolia, Sudan, Kazakhstan, Brazil, Chile , Nigeria ,Canada and Australia.
—We have won high reputations from all of our clients for our machines and services.
1.Why buy from us?
1)Our factory covering an area of over 36,000 square meters
2)Our company having more than 36 sets of heavy processing equipment and with an annual output of more than 2600 sets of mining machinery
3)Our products are sold to more than 28 provinces/cities in China
4)Our products have exported to Russia,Africa,Indonesia,the Middle East,the Philippines, Mongolia, Sudan, Kazakhstan, Brazil, Chile, Canada , Nigeria, Australia and so on
5)Delivery fast -----Goods be sent out within 5 to 20 days based on order quantity
6)Best service-----Answering e-mails or solving questions timely. Delivery and update information on time. Trust, good quality and service are the basic of long-term business
2.What Information should customers give to us in order to let we provide you with efficient & suitable quotation and assistance.
1). What type is the mining? Is it rock stone? or it is sand?
2). If rock stone,What is the general particle size(mm) of the raw ore?
3). What is the handling capacity(tons per hour) you plan to work with?
4).What is the elements of the raw ore? How much percent % of each minerals?
3.Can we send the mineral samples to your company, let your company run the ore-dressing experiments test for us?
Yes, we can run the ore-dressing experiments for our customers. After the test, we will based on the results to give you the reasonable flowchart, suitable solution and equipments selection. etc.
4. How long is the warrenty of your equipments? Does your company supply the spare parts?
The warranty period of Oasis equipments is one year. And of course we will supply the spare parts for you for life-long time at lowest cost.
5. If i need the complete mineral processing line. is Oasis able to help us build it?
Yes, we can help you combine a complete mineral processing line. and give you related professional advices as long as you need.
There is a rich experience engineer team of us. we had already build many mining projects in China & Overseas. You can believe our quality and service.
