Mining equipment pendulum feeder/swing feeder mining machine,Mineral Ore Disk Feeder DK YG type Disk Feeder
- 50 Set / Sets per Month
- xiamen
- ZSW850 Electromagnetic Mining Vibrating Grizzly Screen Feeder Price
- Hanging Vibrating Feeder Screw ZSW Series Vibration Feeder For Quarry Stone
- Coal Mining Industry Vibratory Feeder Industrial And Vibrating Feeder Capacity Calculation
- Vibratory Feeder Industrial And Vibratory Feeder Controller Price
- Vibratory Feeder Industrial And Vibrating Feeder Capacity Calculation
- Mining Selecting Vibratory Feeder Industrial For Sale
Product Details
Condition: | New | Application: | Stone | Power Type: | Electric |
Capacity(t/h): | refer to specification | Place of Origin: | Jiangxi, China | Brand Name: | Oasis |
Model Number: | feeder machine | Power(W): | refer to specification | Dimension(L*W*H): | refer to specification |
Weight: | refer to specification | Certification: | CE;ISO;SGS | Warranty: | one year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Pendulum Feeder is suitable for concentrating coal chemical industry and other departments,makes the grain delivery to various set of accepting the material from the store chute by the filter. The pendulum feeder is not suitable for delivering the dry power of the too big material or else, it may appear the fly-ash pollution or the jam of the output..
Swing Feeder Machine Technical Specifications
Model | feeder size(mm) | Swinger Frequency(r/min) | Swinger (mm) | Capacity(m³/h) | Motor (kw) | Dimensions(mm) | Weight(kg |
LZB300/300 | 100 | 68 | 0-90 | 7 | 1.1 | 1070/550/560 | 613 |
LZB400/400 | 50 | 47 | 0-170 | 17 | 2.2 | 1345/620/740 | 411 |
LZB600/600 | 50 | 45.8 | 0-220 | 25 | 2.2 | 1345/820/740 | 550 |
Disk feeder machine is applicable to feed non viscous material,but not suitable for powder materials with good flow
ability.The suitable feeding material:powder,granular or small bulk materials such as coal powder,cement,clinker,limestone,clay,gypsum,slag etc
Disk Feeder Machine Technical Specifications
Type | Model | Disc diameter(mm) | Rotation speed of disc(r/min) | Max feeding particle size(mm) | Capacity(m³/h) | Motor model | Motor power(kw) | Weight(kg) |
Enclosed hanged | LZYG300 | 300 | 10.0 | 20 | 0-1.8 | Y80L-4 | 0.55 | 115 |
LZYG400 | 400 | 10.7 | 20 | 0-2.6 | Y90L-6 | 1.1 | 120 | |
LZYG500 | 500 | 10.7 | 20 | 0-3.3 | Y90L-6 | 1.1 | 124 | |
LZYG600 | 600 | 8 | 25 | 3.9 | Y90L-6 | 1.1 | 455 | |
LZYG800 | 800 | 8 | 30 | 7.6 | Y90L-6 | 1.1 | 542 | |
LZYG1000 | 1000 | 7.5 | 40 | 16.7 | Y100L-6 | 1.5 | 870 | |
LZYG1500 | 1600 | 8 | 60 | 48 | Y132M1-6 | 4 | 2170 | |
Open
hanged | LZDK600 | 600 | 8 | 25 | 3.9 | Y90L-6 | 1.1 | 403 |
LZDK800 | 800 | 8 | 30 | 7.6 | Y90L-6 | 1.1 | 500 | |
LZDK1000 | 1000 | 7.50 | 40 | 16.7 | Y100L-6 | 1.5 | 790 | |
LZDK1300 | 1300 | 6.5 | 50 | 28 | Y112M-6 | 2.2 | 1110 | |
LZDK1600 | 1600 | 6 | 60 | 48.6 | Y132M1-6 | 4 | 1980 | |
LZDK1800 | 1800 | 5 | 70 | 60 | Y132M2-6 | 5.5 | 2836 | |
LZDK2000 | 2000 | 5 | 80 | 88.4 | Y132M2-6 | 5.5 | 3070 |
Swing feeder machine:

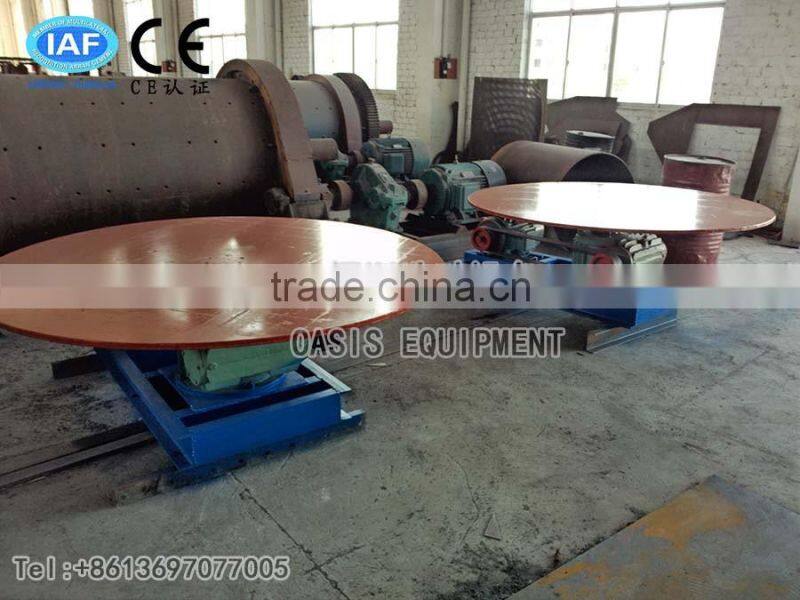

Disc feeder machine:
Our Services
♦ Pre-sale services: Passion &thoughtful
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
♦ Sale services: Oversea Technicians
Oversea technicians will be sent to the jobsite for guiding the installation training operators and finishing the check and accept together with you.
♦ After-sale services: Faithfulness
One year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
Company Information
—We have passed ISO9001:2008 and CE and SGS certification
—Our products have obtained the title of "China High Quality Well-Known Products".
—Our products are sold to more than 28 provinces/cities in China and are exported to Russia, Africa, Indonesia ,the Middle East, Philippines, Mongolia, Sudan, Kazakhstan, Brazil, Chile , Nigeria ,Canada and Australia.
—We have won high reputations from all of our clients for our machines and services.
1.Why buy from us?
1)Our factory covering an area of over 36,000 square meters
2)Our company having more than 36 sets of heavy processing equipment and with an annual output of more than 2600 sets of mining machinery
3)Our products are sold to more than 28 provinces/cities in China
4)Our products have exported to Russia,Africa,Indonesia,the Middle East,the Philippines, Mongolia, Sudan, Kazakhstan, Brazil, Chile, Canada , Nigeria, Australia and so on
5)Delivery fast -----Goods be sent out within 5 to 20 days based on order quantity
6)Best service-----Answering e-mails or solving questions timely. Delivery and update information on time. Trust, good quality and service are the basic of long-term business
2.What Information should customers give to us in order to let we provide you with efficient & suitable quotation and assistance.
1). What type is the mining? Is it rock stone? or it is sand?
2). If rock stone,What is the general particle size(mm) of the raw ore?
3). What is the handling capacity(tons per hour) you plan to work with?
4).What is the elements of the raw ore? How much percent % of each minerals?
3.Can we send the mineral samples to your company, let your company run the ore-dressing experiments test for us?
Yes, we can run the ore-dressing experiments for our customers. After the test, we will based on the results to give you the reasonable flowchart, suitable solution and equipments selection. etc.
4. How long is the warrenty of your equipments? Does your company supply the spare parts?
The warranty period of Oasis equipments is one year. And of course we will supply the spare parts for you for life-long time at lowest cost.
5. If i need the complete mineral processing line. is Oasis able to help us build it?
Yes, we can help you combine a complete mineral processing line. and give you related professional advices as long as you need.
There is a rich experience engineer team of us. we had already build many mining projects in China & Overseas. You can believe our quality and service.
