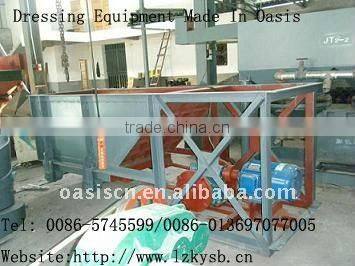

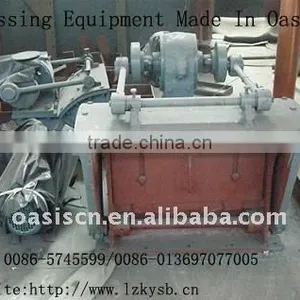

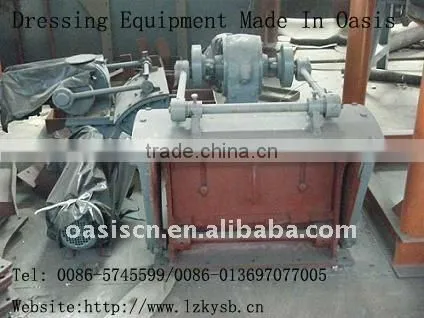

small feeder from china oasis factor
- 50 Set / Sets per Month
- xiamen
- T/T
You May Like
Product Details
| Condition | New | Capacity(t/h) | 50sets per week | |
| Place of Origin | Jiangxi, China | Brand Name | oasis | |
| Model Number | 600/500 | Certification | ISO9001:2008 |
Product Description
Trough to the mining machine and the Pendulum feeder for mineral processing, coal, chemical industry and other sectors will be granular and massive materials sent out from the storage silos by a variety of different types of feed devices, but not suitable for conveying ore powder and other powder materials.
This machine can be used as ball mill and the mine belt conveyor continuous and uniform supply of granular material feed set
Model | Uite | 400/300 | 600/500 | 980/1240 | 1000/1900 | 1060/2900 |
Feed size | mm | 50 | 205 | 300 | 300 | 350 |
Frequency bottom back and forth | r/min | 18.5 | 18.9 | 24 | 27 | 30 |
Crank Stroke | mm | 0-50 | 0-50 | 0-50 | 0-125 | 0-125 |
Capacity | t/h | 0-5 | 10-50 | 36-90 | 200-300 | 400-900 |
Power | kw | 3 | 4 | 7.5 | 11 | 25-40 |
Overall dimensions | mm | 2820/800/600 | 2700/900/850 | 3560/1000/1000 | 3900/1590/1350 | 4580/2950/1750 |
Weighe | kg | 790 | 1050 | 1700 | 2690 | 3200 |
Model | Uite | 300/300 | 400/400 | 600/600 |
Feed size | mm | 20 | 35 | 50 |
Oscillation Frequency | r/min | 68 | 47 | 45.5 |
Eccentric travel | mm | 0-90 | 0-170 | 0-206 |
Capacity | t/h | 8 | 12 | 25 |
Power | kw | 1.1 | 1.1 | 1.5 |
Overall dimensions | mm | 1130/920/850 | 1070/550/560 | 1320/820/740 |
