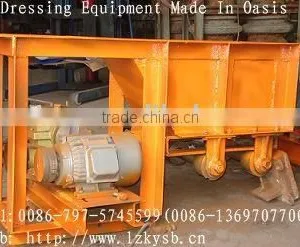

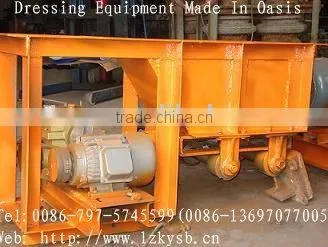

Trough Feeder/Chute Feeder

ShiCheng Oasis Mineral Equipment Manufacturing Co., LTD(0086-797-5745599 ) are production

Detailed Product Description

It is widely used in the industry of the metallurgy, mining, chemical, construction, plant coal and so on.

  Trough feeder is applied in the primary crushing as the equipment of the feeder. It is widely used in the industry of the metallurgy, mining, chemical, construction, plant coal and so on.

   Trough feeder can be set up on the ground and can also be hoisting the ore bin on the discharge port. Slot backplane for reciprocating movement, the pumping of 20-60 times / min, stroke is 20-200mm. Stroke can be adjusted appropriately eccentric device, eccentricity of stroke in half. According to some mine, for cohesive ore, eccentricity should not be less than 30mm. Trough feeder feed trough width of about 2-2.5 times the maximum particle size. The biggest through feeder can meet the particle size is less than 500mm to the mining of iron ore. Most common specification is 980×1240 through feeder, the feeder size for the 350-0mm, for a 400 × 600 jaw crusher feeding equipment.

Trough feeder technical parameters
