Specifications
1. Energy saving ,high quality ,2. warantee: 1 year
3.OEM
Cone Crusher,crusher:
1 The best crusher for breaking stone.
2 Adjustable final products' size.
3 ISO9001:2000,CE.
Cone Crusher,crusher,stone crusher
HPC Cone Crusher Application
HPC series cone crusher with high-efficiency and hydraulic pressure was widely used in mining, concrete factory, sandstone making, etc. The machinerys pressure resistance strength is under 350Mpa. And they are widely suitable for primary crushing of many kinds of mining and rock such as many kinds of ores, concrete, fireproof material, bauxite, quartzite, corundum, perlite, ironstone, basalt, etc.
HPC Cone Crusher Operating Principle

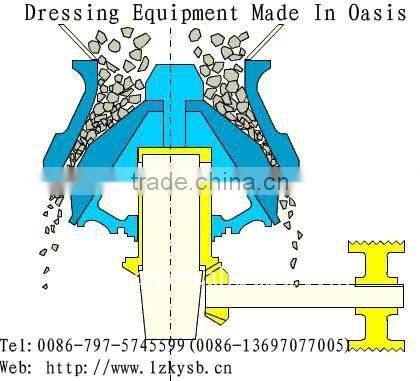

Cone crusher consist of frame, transmission device, hollow eccentric shaft, bowl-shaped bearing, crushing cone, springs and hydraulic pressure station for adjusting discharge opening.
During operation, the motor drives the eccentric shaft shell to turn around through ahorizontal axle and a pair of bevel gear. The axle of crushing cone swings with the force of eccentric shaft shell so that the surface of the crushing wall is close to the roll mortar wall from time to time. In this way, the ores and rocks will be pressed and crooked and crushed.
HPC Cone Crusher Specification
Model |
Cavity (coarse/fine) |
Discharge setting min.(mm) |
Feed opening |
Capacity |
Power |
Weight |
movable cone diameter |
HPC-160 |
C |
13 |
150 |
120-240 |
160 |
13 |
950 |
F |
6 |
76 |
55-180 |
||||
HPC-220 |
C |
13 |
225 |
150-430 |
220 |
18 |
1160 |
F |
6 |
86 |
90-260 |
||||
HPC-315 |
C |
13 |
290 |
190-610 |
315 |
26 |
1400 |
F |
6 |
100 |
108-320 |
||||
HPC-400 |
C |
13 |
320 |
230-700 |
400 |
33 |
1500 |
F |
6 |
110 |
145-430 |
Note: This specification is just reference, any changes are subject to the Cone Crusher products.
