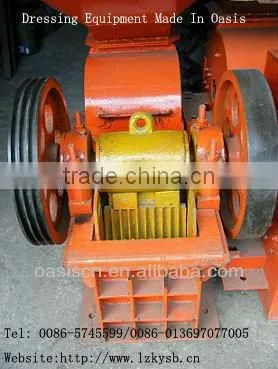

China Leading Jaw Crusher /high efficient, high quality, Durable but not expensive stone jaw crusher with 180t/h

Specifications

1.Large crushing ratio
nical guidance
3.advanced quality management
4.Hot sell jaw crusher

2011 Energy Saving Stone Jaw Crusher 250*1200

The advantages of our Stone Crusher

1. superior quality

2. reasonable price

3. one year gurantee

4. our engineer guiding for installation on site for free

5. our after-sale service team act immediatly on receiving your reports

6. providing high quality spare parts with low prices in order to appreciate your trust on our factory



Application of Stone Jaw Crusher:

This series of jaw crusher manufacturers is mainly used for rough and moderate broken operations of various ore materials those compressive strength are not more than 320 MPa. This crusher has features of high broken ratio, uniform product size, simple structure, reliable operation, convenient maintenance, low operating costs etc, which is widely used in mining, smelting, building, roads, railways, water conservancy and chemical industry.

Working principle of Stone Jaw Crusher:

motor drives the eccentric axis rotating through the belt pulley, so that the movable jaw approaches and leaves the fixed jaw cyclical, which makes the materials squeezed, rubbed, multi-roller crusher, etc. so that the materials are crushed into small size, and then decline gradually, at last discharge from the discharging mouth.

Main technical parameters of Stone Jaw Crusher:

Model	Hopper size (mm)	Max. Feed size (mm)	Capacity (t/h)	Motor Power (kW)	Scope of discharge opening (mm)	Overall dimensions (mm)	Wight (t)
PE-150×250	150×250	125	1-5	5.5	10-40	875×758×850	0.81
PE-250×400	250×400	210	5-20	15	20-60	1450×1315×1296	2.8
PE-400×600	400×600	340	16-65	30	40-100	1565×1732×1586	6.5
PE-600×900	900×600	500	50-120	55-75	65-160	2305×1840×2298	15.5
PE-500×750	500×750	425	45-100	55	50-100	1890×1916×1870	10.1
PE-750×1060	750×1060	630	52-180	110	80-140	2450×2472×2840	28
PE-900×1200	900×1200	750	140-260	110	95-165	3335×3182×3025	50
PE-250×750	750×250	210	15-30	22	25-60	1667×1545×1020	4.9
PE-250×1000	1000×250	210	16-52	30-37	25-60	1530×1992×1380	6.5
PE-250×1200	250×1200	210	20-60	37	25-60	1900×2192×1430	7.7
