Home > Manufacturing & Processing Machinery > Machine Tools > Grinding Machine > ME1350A Cylindrical Grinder

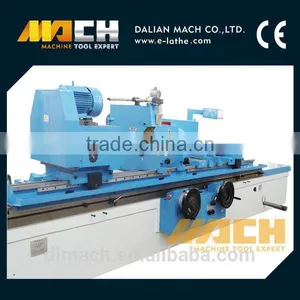

ME1350A Cylindrical Grinder

Name: ME1350A Cylindrical Grinder
Brand: MACH
SKU: 141435298
Availability: InStock

US$ 45,980 - 46,000 MOQ: 1 Unit

Key Specifications

Get Latest Price

Condition:

New

Type:

Cylindrical Grinding Machine

CNC or Not:

Normal

Contact Supplier Request Quote Chat Now

Dalian Mach Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin Port China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Cylindrical Grinding Machine

CNC or Not Normal

Max. Grinding Diameter 500mm

Max. Grinding Length 3000mm

Place of Origin Shanxi, China

Brand Name MACH

Model Number ME1350A

Voltage 380V

Power(W) 19.85KW

Dimension(L*W*H) 7500x2400x2110mm

Weight 11000kgs

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

ME1350A Cylindrical Grinder

Introduction of Cylindrical Grinder

The cylindrical grinder is designed and manufactured for grinding cylindrical or conical external surfaces with accuracy of IT5 and IT6.
The longitudinal travel of worktable is controlled steplessly by hydraulic system,and also by hand wheel.
The rapid approach and withdrawal of wheel head is hydraulic controlled, infeed is carried out by hydraulic and handwheel.

Technical Data of Cylindrical Grinder

TECHNICAL SPECIFICATION
Specification(mm)		Packing size (mm)					Net weight(kg)		Gross weight(kg)
		L		W		H
500×1500		5650		2400		2120	8000		9500
500×2000		5650		2400		2120	9000		10500
500×3000		7500		2400		2110	11000		13000
Grinding dia		With steady rest		mm		Max			200
				mm		Min			30
		Without steady rest		mm		Max			500
				mm		Min			30
Max. workpiece weight				kg		1000
Center high				mm		270
Distance between centers				mm		1500	( ME1350×1500 )
				mm		2000	( ME1350×2000 )
				mm		3000	( ME1350×3000 )
Max. longitudinal travel of worktable				mm		1600	( ME1350×1500 )
				mm		2090	( ME1350×2000 )
				mm		3090	( ME1350×3000 )
wheelstock	Wheel speed			m/s		35
	Spindle speed			r/min		892
	Rapid approach/withdrawal			mm		100
	Max. movement			mm		410
Grinding wheel	Max			mm		750×75×305
	Min			mm		535×75×305
Workstock center				Morse					M6
Tailstock center				Morse					M6
Motor of wheelstock				KW	15
Total power of motors				KW	19.85
GENERAL FEATURE
Movement of sleeve of tailstock			70	Min.manual					0.0025
Auto-periodic feed			Yes	Wheel dressing and compensation					Manual
WORKING ACCURACY
Roundness								mm	0.0025
Uniformity of diameter in longitudinal section								mm	0.008
Roughness								μm	Ra0.2
MAIN ACCESSORIES
Oil tank			1set	Wheel balancing arbor					1set
coolant tank			1set	Measuring plate					1set
Wheel dresser			1set	Driving dog					1set
Wheel with flange			1set	Parallel wedge					12.12.16sets
Wheel dismount tool			1set
Open-type steady rest			2sets	Only for ×2000,3000
MAIN ACCESSORIES SUPPLIED ON SPECIAL ORDER
Radius wheel dresser			1set	Positioner					1set
Half center			1set	Wheel balancing stand					1set

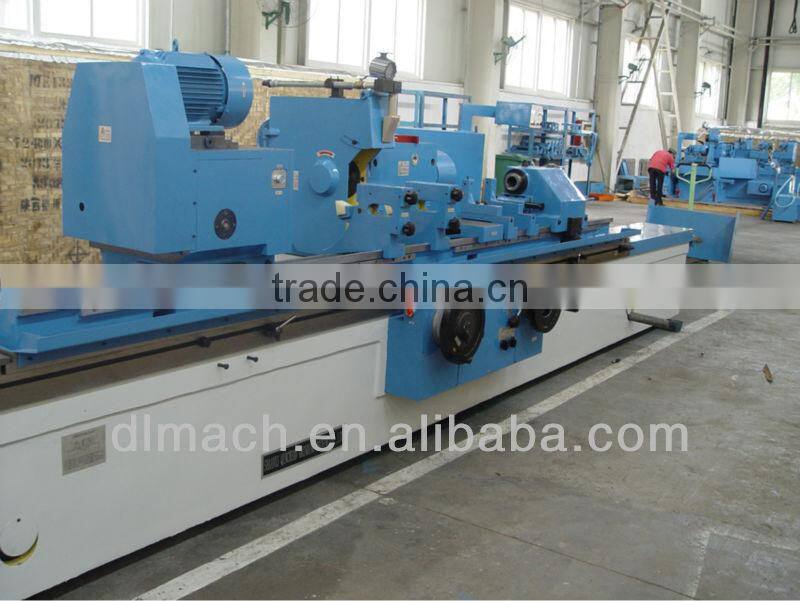

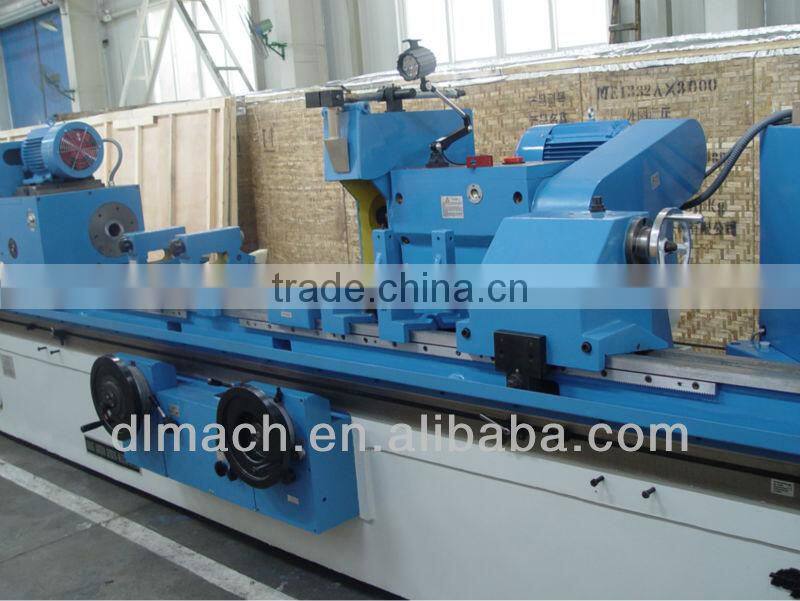

( Main Body of Cylindrical Grinder )

( Running of Cylindrical Grinder )

Quality Guarantee of Cylindrical Grinder

Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the cylindrical grinder. We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows:

The cylindrical grinders are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.
When the cylindrical grinders are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills.
During this period of one year warranty , if the cylindrical grinders were damaged by non-artificial reasons, we are responsible for repairing or changing parts.
During this period of warranty, if there is something wrong with the cylindrical grinder, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.
After the warranty, we charge only cost price for maintaining the cylindrical grinders within three years.
Other after-sale terms can be agreed by buyer and seller in addition.
