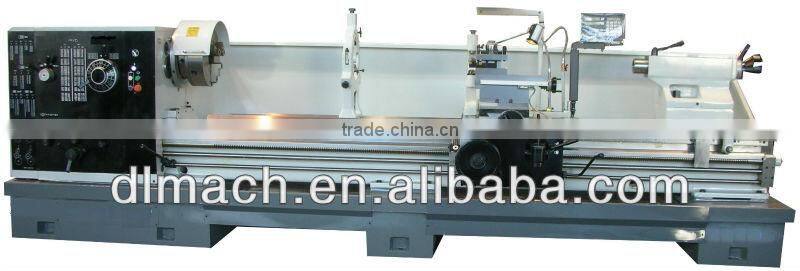

CW6280E DMTG Universal Lather Machine

CW6280E DMTG Universal Lather Machine thumbnail-1
CW6280E DMTG Universal Lather Machine thumbnail-2
CW6280E DMTG Universal Lather Machine thumbnail-3
CW6280E DMTG Universal Lather Machine thumbnail-4
CW6280E DMTG Universal Lather Machine thumbnail-5
CW6280E DMTG Universal Lather Machine thumbnail-6
CW6280E DMTG Universal Lather Machine photo-1
CW6280E DMTG Universal Lather Machine photo-2
CW6280E DMTG Universal Lather Machine photo-3
CW6280E DMTG Universal Lather Machine photo-4
CW6280E DMTG Universal Lather Machine photo-5
CW6280E DMTG Universal Lather Machine photo-6
US$ 16,500 - 33,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
Normal
Contact Supplier Request Quote Chat Now
Dalian Mach Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian Port China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Horizontal
CNC or Not Normal
Automatic Grade Automatic
Max. Swing Diameter 800mm
Place of Origin Liaoning, China
Brand Name DMTG
Model Number CW6280E
Voltage 380V
Power(W) 11KW
Dimension(L*W*H) 7350x1100x1920mm
Weight 6450KGS
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

CW6280E DMTG Universal Lather Machine





Main Features of Lather Machine

1. Big spindle bore with dia. 105mm/130mm;

2. Swing over bed from 630mm to 1000mm;

3. One piece casting lathe bed from c.d.4000mm to 5000mm;

4. Hardened and ground guideway.



CW6280E DMTG Universal Lather Machine



CW6280E DMTG Universal Lather Machine





Technical Data of Lather Machine



Item

CW6263E

CW6280E

CW62100E

Max. swing over bed

630mm

800mm

100 CW6280E Gap Bed Lathe 0mm

Max. swing over carriage

350mm

520mm

720mm

Center distance

750mm 1000mm 1500mm 2000mm 3000mm 4000mm 5000mm 6000mm

Width of gap

320mm

Swing over gap

800mm

1000mm

1230mm

Width of guide way

550mm

Spindle bore diameter

105 mm/130mm

Spindle speed

(18 speeds) 7.5~1000rpm

Longitudinal feed

(64) 0.1~24.3mm/r

Cross feed

(64) 0.05~12.15mm/r

Rapid traverse speed

3.8m/min

Metric thread

(39)1~240mm

Inch thread

(26) 14~1TPI

Module thread

(53) 0.5~120mm

Diametrical pitch thread

(24) 28~1

Max. travel of cross slide

445mm

493mm

493mm

Travel of top slide

200mm

Main motor power

11kW

Rapid traverse motor power

1.1kW

Coolant pump motor power

0.09kW

Wooden box/Pallet packing

750mm

3490×1150×2080/3390×1100×1920

4450/3550kg

4600/3730kg

5000/4050kg

1000mm

3940×1150×2080/3840×1100×1920

4750/3550kg

4950/3730kg

5450/4050kg

1500mm

3940×1150×2080/4420×1100×1920

5250/2850kg

5450/4030kg

5850/4350kg

2000mm

4560×1150×2080/5200×1100×1920

Gross/Net weight

5650/4150kg

5850/4330kg

6250/4560kg

3000mm

5460×1150×2080/5270×1100×1920

6250/4650kg

6450/4830kg

6850/5150kg

4000mm

6520×1150×2080/7310×1100×1920

7150/5450kg

7800/6100kg

8200/6250kg

5000mm

7600×1150×2080/7350×1100×1920

7950/6250kg

8500/6450kg

8900/6750kg







Standard Accessories of CW6280E Lather Machine

3 jaw chuck  ( 400mm )
4 jaw chuck  ( 630mm )
face plate     ( 800mm )
drive plate
coolant system
Oil Gun
Tools
Work light
Opertor Manual

CW6280E DMTG Universal Lather Machine

CW6280E DMTG Universal Lather Machine

CW6280E DMTG Universal Lather Machine



Optional Accessories of CW6280E Lather Machine
2 Axis Sino DRO ( Digital Readout ) factory installed
130mm Large Spindle Bore:
Taper Turning Attachment:
Quick Change Tool Post ( German Type Only )
Chuck Guard
Tool Post Guard
15KW ( 20Hp) Main Motor
Steady Rest ( 20-170mm )
Follow Rest (20-100mm )
Large Steady Rest
Full splash guard
Live Center
Spindle center
Spindle center sleeve
CE Electrics
Thread Chasing Dial
Foot Brake
Anti-Vibration Pads

CW6280E DMTG Universal Lather Machine

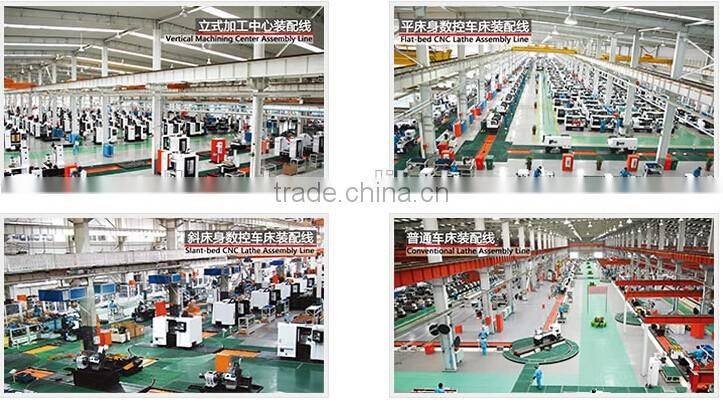

About Our Company
