Home > Manufacturing & Processing Machinery > Machine Tools > Lathe > CKE6180Z FANUC CNC Lathe Machine
US$ 36,000 - 50,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
CNC
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian Port China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CKE6180Z DMTG Siemens CNC Machine ToolUS$ 36,000 - 55,000MOQ: 1 Unit -
ME1350A Cylindrical GrinderUS$ 45,980 - 46,000MOQ: 1 Unit
-
HOT SALE!!! VMC850 Vertical Machining CenterUS$ 28,800 - 30,000MOQ: 1 Unit
-
HOT Sales !!! X6332Z Drilling and Milling MachineUS$ 1 - 8,900MOQ: 1 Unit
-
CDL6241 DMTG Horizontal Lathe MachineUS$ 5,650 - 6,350MOQ: 1 Unit
Condition
New
Type
Horizontal
CNC or Not
CNC
Automatic Grade
Automatic
Max. Swing Diameter
800mm
Place of Origin
Liaoning, China
Brand Name
MACH
Model Number
CKE6180Z
Voltage
380V
Power(W)
11KW
Dimension(L*W*H)
5200x1150x1800mm
Weight
6100kgs
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas

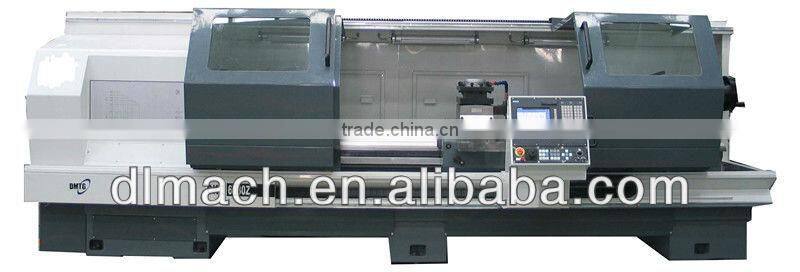

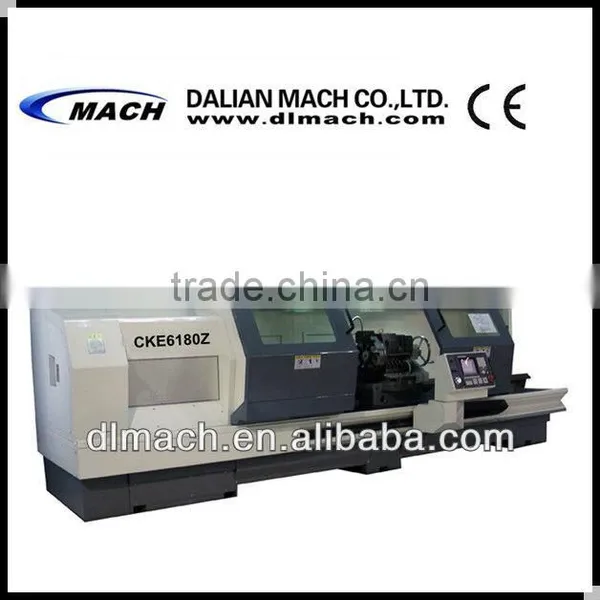

CKE6180 ZD FANUC CNC Lathe Machine
CNC control system:
Siemens 802C control system
Siemens 828D control system
FANUC 0i-mate TD control system
FAGOR 8055i control system
GSK control system
Technical Datas:
| Item | mm | CKE6140i | CKE6150Z | CKE6163Z | CKE6180Z |
| Max. swing over bed | mm | 400 | 500 | 630 | 800 |
| Width of bed | mm | 300 | 400 | 550 | 550 |
| Max. length of work piece | mm | 750/1000 | 750/1000/1500/2000 | 1000/1500/2000/3000 | 1000/1500/2000/3000 |
| Max. swing over slide | mm | 200 | 280 | 320 | 490 |
| X travel | mm | 225 | 280 | 320 | 420 |
| Z travel | mm | 620/870 | 680/930/1430/1930 | 785/1235/1835/2735 | 785/1235/1835/2735 |
| Spindle nose | mm | A2-5 | D8 | C11 | C11 |
| Chuck size | mm | 165 | 250 | 320 | 400 |
| Taper of spindle bore | mm | M5 | 1:20 | 1:20 | 1:20 |
| Spindle bore | mm | 40 | 82 | 100 | 100 |
| Spindle speed Frequency conversion motor | r/min | 200-3500 | 7-135 30-550 110-2200 | 40-178 71-310 124-556 222-1000 | 40-178 71-310 124-556 222-1000 |
| Steps of spindle speed | stepless | 3-step actuator | 4-step actuator | 4-step actuator | |
| Frequency conversion motor power | kw | 5.5 | 7.5 | 11 | 11 |
| Rapid traverse X/Z | m/min | 4/5 | 6/10 | 4/8 | 4/8 |
| Repeatability of tool post | mm | 0.008 | 0.008 | 0.008 | 0.008 |
| Diameter of tailstock quill | mm | 63 | 75 | 100 | 100 |
| Travel of tailstock quill | mm | 130 | 150 | 240 | 240 |
| Taper of tailstock quill | M4 | M4 | M6 | M6 | |
| Net weight | kg | 1800/1953 | 2500/2600/2700/2800 | 4700/4800/5300/5600 | 5200/5300/5800/6100 |

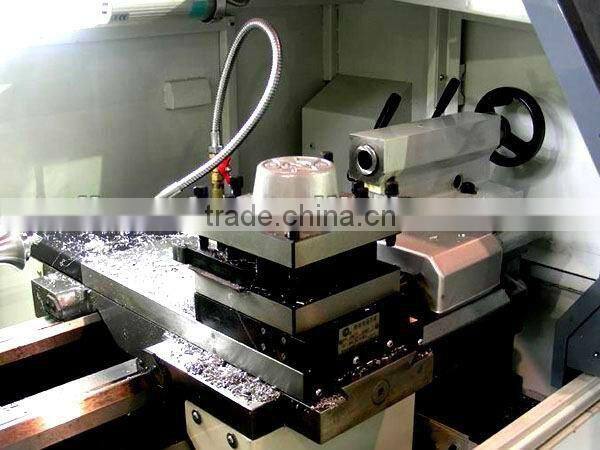

1. STANDARD 4-Station Vertical Toolpost.

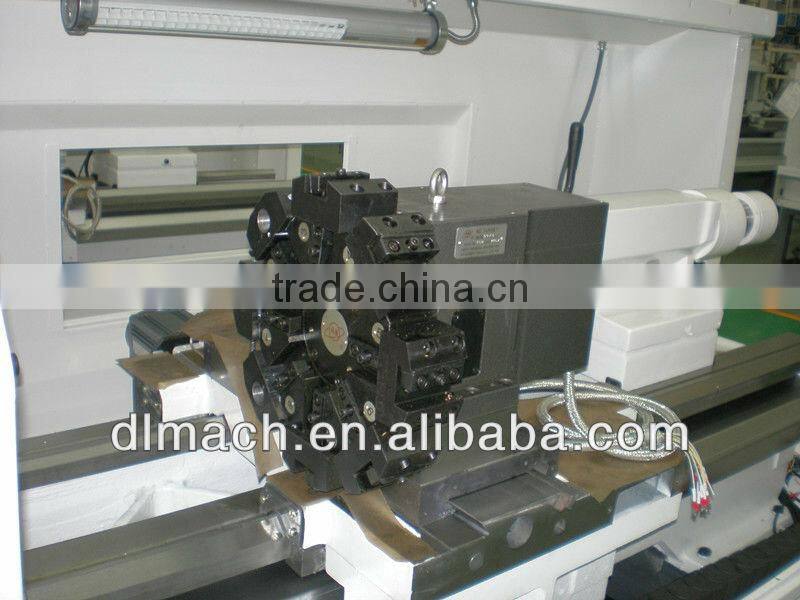

2. OPTIONAL 8- Station Horizontal Toolpost
About our company:
Founded in 1948, Our factory entered the top 8 machine tool builders in the world. turly a leader in the machine tool industry worldwide. Our CNC lathe sell to more than 100 countries and regions worldwide
....
