Home > Manufacturing & Processing Machinery > Machine Tools > Lathe > CKE6150Z DMTG CNC Lathe China Manufacturer
US$ 16,500 - 20,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
CNC
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian Port China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CKE6150Z DMTG CNC Lathe China FactoryUS$ 16,500 - 20,000MOQ: 1 Unit -
CKE6150Z DMTG CNC Lathe China CompanyUS$ 16,500 - 20,000MOQ: 1 Unit
-
CKE6150Z DMTG CNC Lathe in Competitive PriceUS$ 16,500 - 20,000MOQ: 1 Unit
-
CKE6150Z Precision DMTG CNC LatheUS$ 16,500 - 19,500MOQ: 1 Unit
-
LKX3-24000 Light Industry CNCUS$ 6,000 - 10,000MOQ: 1 Unit
Condition
New
Type
Horizontal
CNC or Not
CNC
Automatic Grade
Automatic
Max. Swing Diameter
500mm
Place of Origin
Liaoning, China
Brand Name
DMTG
Model Number
CKE6150Z
Voltage
380V or 220V
Power(W)
7.5KW
Dimension(L*W*H)
2800x1750x1620mm
Weight
2800kgs
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas

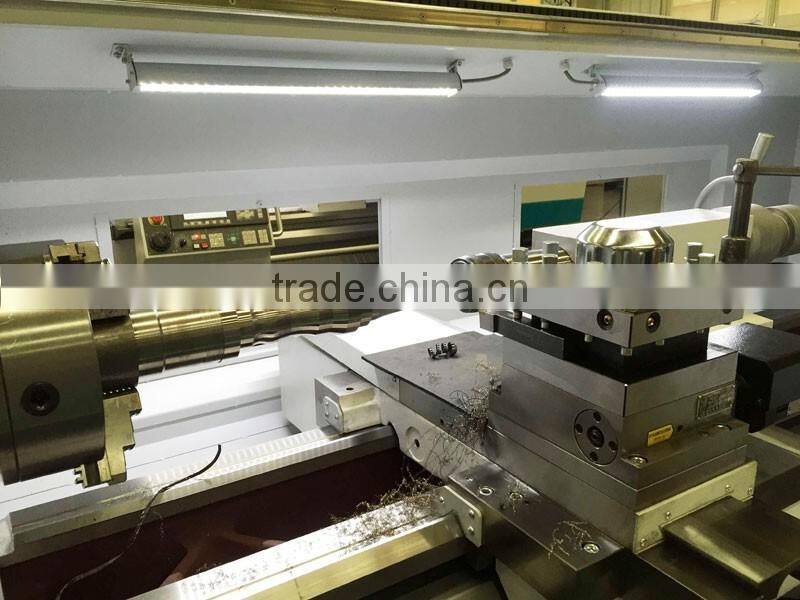

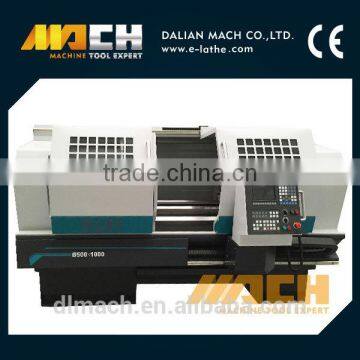

CKE6150Z DMTG CNC Lathe China Manufacturer
Main Specifications of CNC Lathe Manufacturer
| Model | CKE6150Z |
| Max. swing over bed (mm) | 500 |
| Width of bed | 400 |
| Max. length of work piece (mm) | 750/1000/1500/2000 |
| Max. swing over slide (mm) | 280 |
| X travel (mm) | 280 |
| Z travel (mm) | 680/930/1430/1930 |
| Spindle nose | D8 |
| Chuck size (mm) | 250 |
| Taper of spindle bore | 1:20 |
| Spindle bore (mm) | 82 |
| Steps of spindle speed | 3-step actuator (7-135rpm; 30-550rpm; 110-2200rpm ) |
| Frequency conversion motor power (kW) | 7.5 |
| Rapid traverse X/Z (m/min) | 41435 |
| Repeatability of tool post (mm) | 0.008 |
| Vertical 4-position Tool post changing time (s) | 2.4 |
| Horizontal 6-position Tool post changing time | 3 |

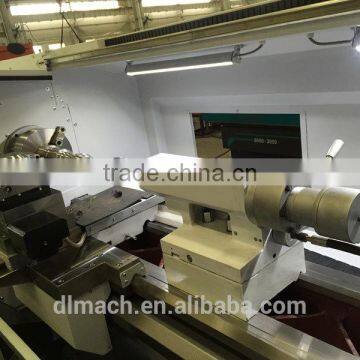

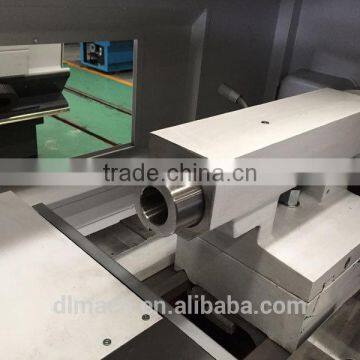

| Diameter of tailstock quill (mm) | 75 |
| Travel of tailstock quill (mm) | 150 |
| Taper of tailstock quill | M5 |
| Net weigh (kg) | 2550/2600/2700/2800 |
| Overall dimensions (mm) | 2580×1750×1620 |
| 2830×1750×1620 | |
| 3330×1750×1620 | |
| 3830×1750×1620 |
Control System of CNC Lathe Manufacturer

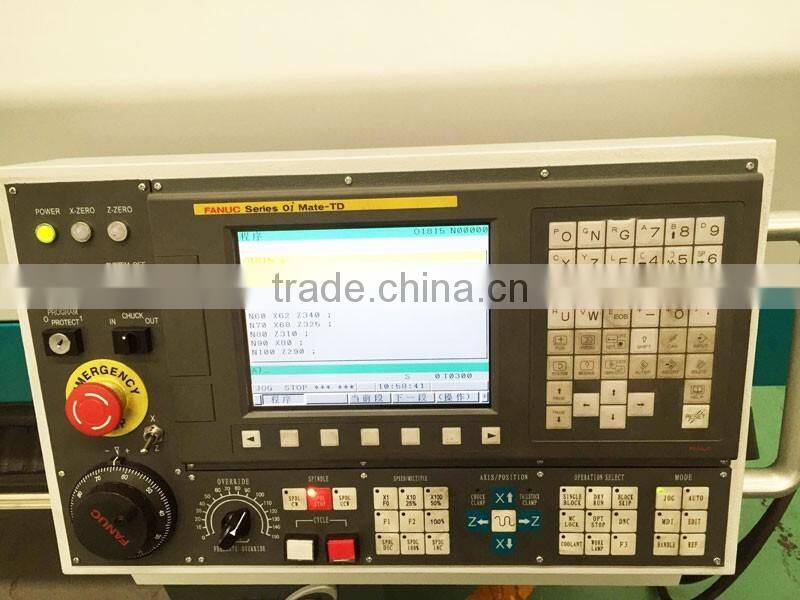

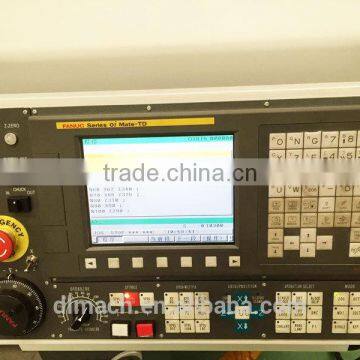

- With FANUC 0i mate TD control system
- With Siemens 802C/828D control system
- With FAGOR 8055i control system
- With GSK control system
Standard Accessories of CNC Lathe Manufacturer
Inverter motor control spindle ( automatic changes )
Concentrated lubrication device ( can be controlled by programs )
Headstock independent lubricate system
3-jaw chuck
Coolant system

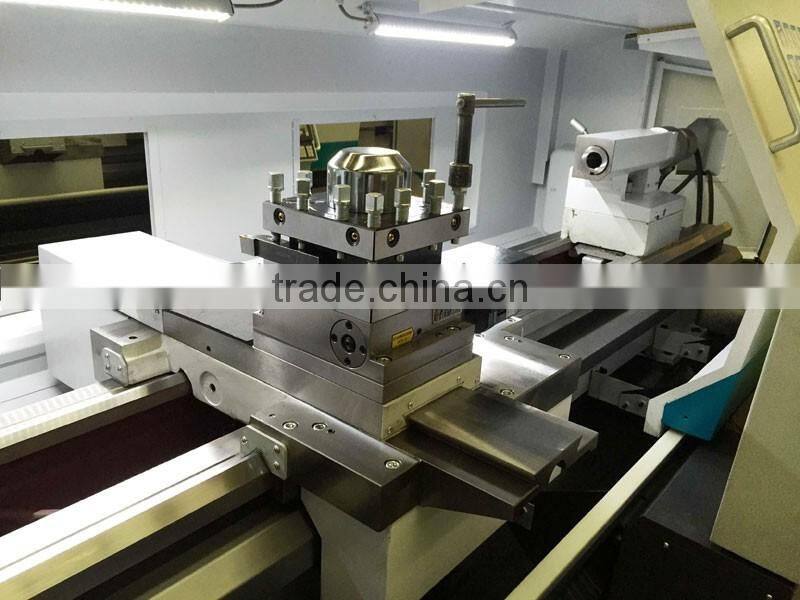

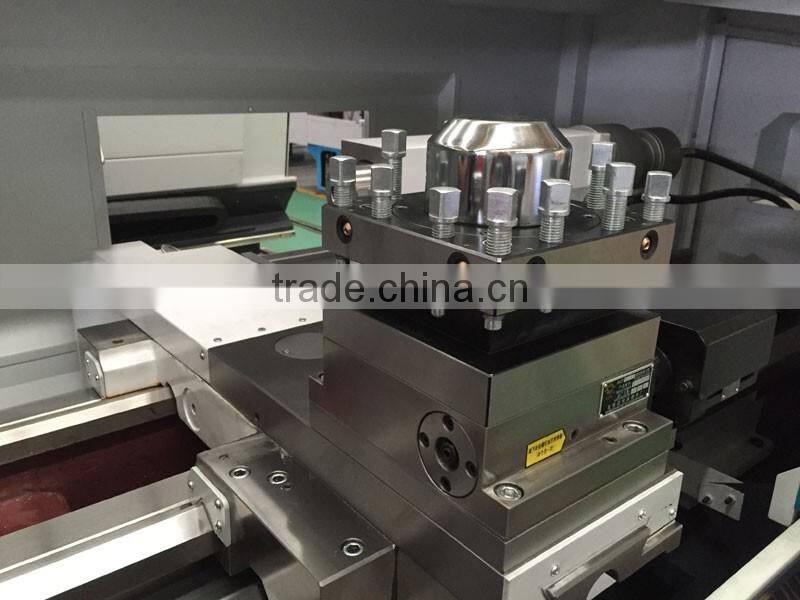

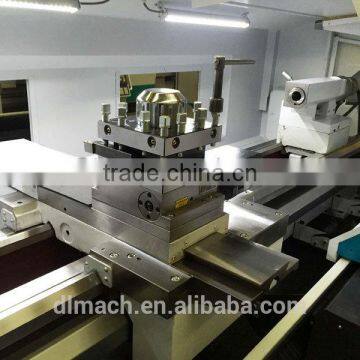

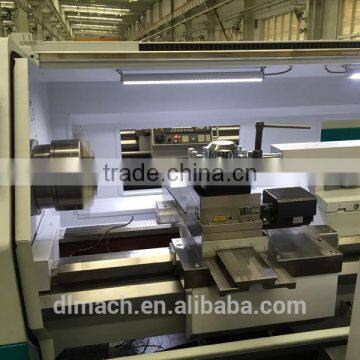

Vertical 4-Station Electric Turret
Oil Gun
Tool Kit
Oil Gun
Tool Kit
90 degree movable control console
Operation manual
Optional Accessories of CNC Lathe Manufacturer
4-jaw chuck Dia: 400mm
Steady rest Dia:30-200mm
M5 Live Center
Horizontal 6-Station Turret
250mm hydraulic chuck (through-hole)
Hydraulic Station
Hydraulic Tailstock
CE electrics
Door interlock
Anti-vibration pads
Quality Guarantee of CNC Lathe Manufacturer
We will supply enough spare parts and accessories with our DMTG cnc lathe china manufacturer when shipment. Within one year after receiving our DMTG cnc lathe china manufacturer, Under the right operation of our machine, If there are any damaged parts or accessoreis, We will replace them to you by air-mail FREE OF CHARGE.

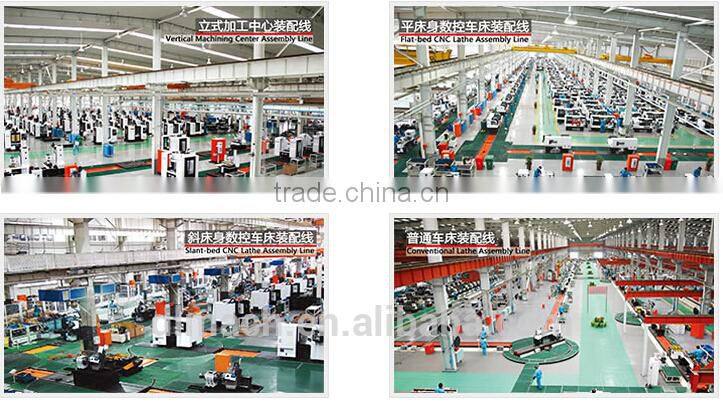

About Our Company
Founded in 1948, Our factory entered the top 8 cnc lathe builders in the world. turly a leader in the cnc lathe industry worldwide. Our CNC lathes sell to more than 100 countries and regions worldwide
FAQ
Q: Why choose our DMTG CNC Lathe China Manufacturer?
A: 1 . High quality with competitive price
2 . 25 years export experience
3 . CE,ISO Certificates
4 . 24 HOURS ONLINE SERVICE (MSN,SKYPE, Trademanager)
6 . 12 months quality warranty
7 . Oversea engineers available for problem resolving
2 . 25 years export experience
3 . CE,ISO Certificates
4 . 24 HOURS ONLINE SERVICE (MSN,SKYPE, Trademanager)
6 . 12 months quality warranty
7 . Oversea engineers available for problem resolving
Q: Can we start with small quantity? What's the MOQ?
A: We can accept orders with any quantity. The MOQ is 1 unit.
Q: Do you have QC or any safety standards for your DMTG CNC Lathe China Manufacturer?
A: yes,we have established a highly strict quality control department to guanrantee good quality.
Q: How can we learn to operate the DMTG CNC Lathe China Manufacturer?
A: Operation teaching video and instructions even engineer are available.
Similar Products: More DMTG CNC Lathes Please Click The Image Below
