CKE6150Z DMTG CNC Lathe China Company
USD $16,500 - $20,000
/ Unit
1 Unit(Min.Order)
- 50 Unit / Units per Month
- Dalian Port China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
Condition: | New | Type: | Horizontal | CNC or Not: | CNC |
Automatic Grade: | Automatic | Max. Swing Diameter: | 500mm | Place of Origin: | Liaoning, China |
Brand Name: | DMTG | Model Number: | CKE6150Z | Voltage: | 380V or 220V |
Power(W): | 7.5KW | Dimension(L*W*H): | 2800x1750x1620mm | Weight: | 2800kgs |
Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

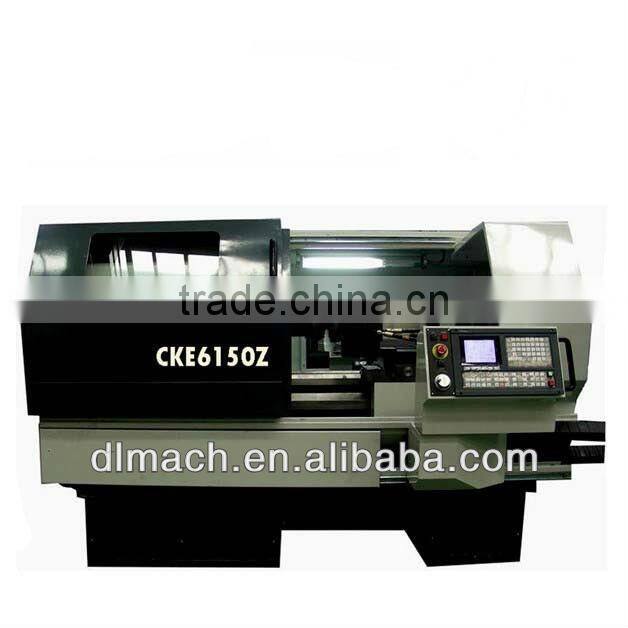

CKE6150Z DMTG CNC Lathe China Company
With FANUC 0i mate TD control system
With Siemens 802C/828D control system
With FAGOR 8055i control system
With GSK control system
Main Specification:
Model | CKE6150Z |
Max. swing over bed (mm) | 500 |
Width of bed | 400 |
Max. length of work piece (mm) | 750/1000/1500/2000 |
Max. swing over slide (mm) | 280 |
X travel (mm) | 280 |
Z travel (mm) | 680/930/1430/1930 |
Spindle nose | D8 |
Chuck size (mm) | 250 |
Taper of spindle bore | 1:20 |
Spindle bore (mm) | 82 |
Steps of spindle speed | 3-step actuator (7-135rpm; 30-550rpm; 110-2200rpm ) |
Frequency conversion motor power (kW) | 7.5 |
Rapid traverse X/Z (m/min) | 41435 |
Repeatability of tool post (mm) | 0.008 |
Vertical 4-position Tool post changing time (s) | 2.4 |
Horizontal 6-position Tool post changing time | 3 |
Diameter of tailstock quill (mm) | 75 |
Travel of tailstock quill (mm) | 150 |
Taper of tailstock quill | M5 |
Net weigh (kg) | 2550/2600/2700/2800 |
Overall dimensions (mm) | 2580×1750×1620 |
2830×1750×1620 | |
3330×1750×1620 | |
3830×1750×1620 |
Standard accessories
Inverter motor control spindle ( automatic changes )
Concentrated lubrication device ( can be controlled by programs )
Headstock independent lubricate system
3-jaw chuck
Coolant system
Vertical 4-Station Electric Turret
Oil Gun
Tool Kit
Oil Gun
Tool Kit
90 degree movable control console
Operation manual
Optional accessories
4-jaw chuck Dia: 400mm
4-jaw chuck Dia: 400mm
Steady rest Dia:30-200mm
M5 Live Center

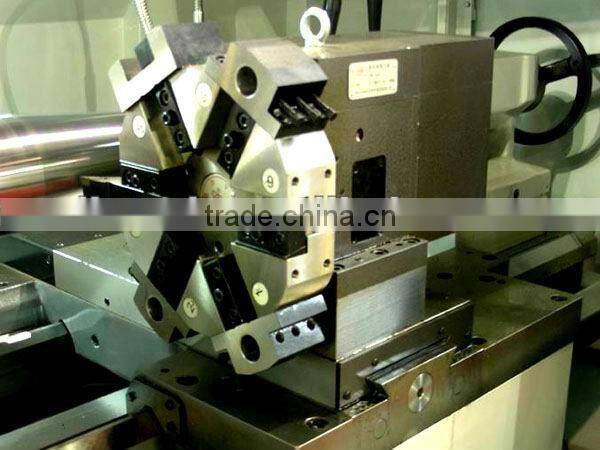

Horizontal 6-Station Turret
250mm hydraulic chuck (through-hole)
Hydraulic Station
Hydraulic Tailstock
CE electrics
Door interlock
Anti-vibration pads
About our company:
Founded in 1948, Our factory entered the top 8 machine tool builders in the world. turly a leader in the machine tool industry worldwide. Our CNC lathe sell to more than 100 countries and regions worldwide
....
