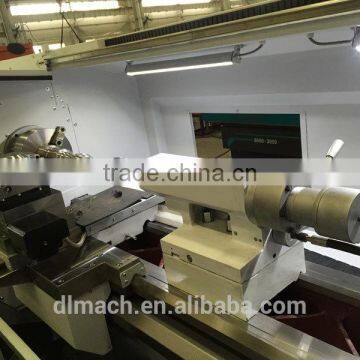

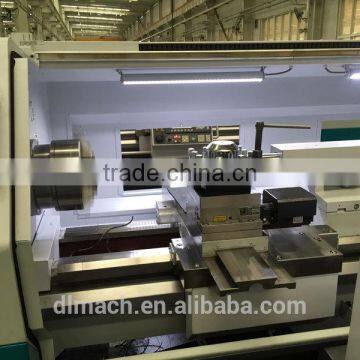

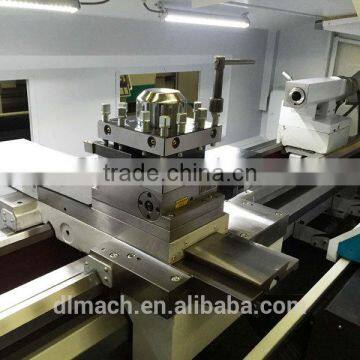

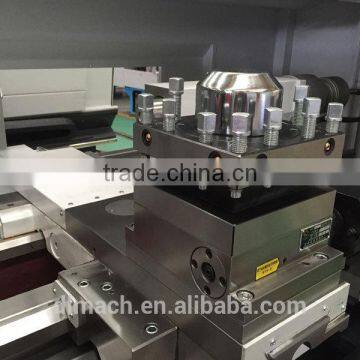

CKE6150Z Precision DMTG CNC Lathe
| Model | CKE6150Z |
| Max. swing over bed (mm) | 500 |
| Width of bed | 400 |
| Max. length of work piece (mm) | 750/1000/1500/2000 |
| Max. swing over slide (mm) | 280 |
| X travel (mm) | 280 |
| Z travel (mm) | 680/930/1430/1930 |
| Spindle nose | D8 |
| Chuck size (mm) | 250 |
| Taper of spindle bore | 1:20 |
| Spindle bore (mm) | 82 |
| Steps of spindle speed | 3-step actuator (7-135rpm; 30-550rpm; 110-2200rpm ) |
| Frequency conversion motor power (kW) | 7.5 |
| Rapid traverse X/Z (m/min) | 41435 |
| Repeatability of tool post (mm) | 0.008 |
| Vertical 4-position Tool post changing time (s) | 2.4 |
| Horizontal 6-position Tool post changing time | 3 |
| Diameter of tailstock quill (mm) | 75 |
| Travel of tailstock quill (mm) | 150 |
| Taper of tailstock quill | M5 |
| Net weigh (kg) | 2550/2600/2700/2800 |
| Overall dimensions (mm) | 2580×1750×1620 |
| 2830×1750×1620 | |
| 3330×1750×1620 | |
| 3830×1750×1620 |
Control System of DMTG CNC Lathe

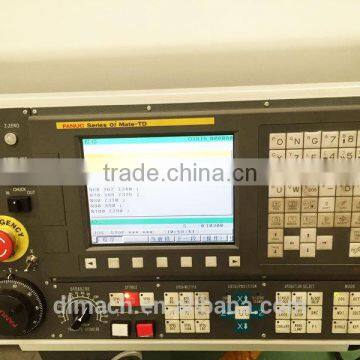

- With FANUC 0i mate TD control system
- With Siemens 802C/828D control system
- With FAGOR 8055i control system
- With GSK control system
Oil Gun
Tool Kit
Quality Guarantee of DMTG CNC Lathe
We will supply enough spare parts and accessories with our DMTG cnc lathe machine when shipment. Within one year after receiving our DMTG cnc lathe machine, Under the right operation of our machine, If there are any damaged parts or accessoreis, We will replace them to you by air-mail FREE OF CHARGE.
About Our Company
Founded in 1948, Our factory entered the top 8 cnc lathe builders in the world. turly a leader in the cnc lathe industry worldwide. Our CNC lathes sell to more than 100 countries and regions worldwide
Q: Why choose our DMTG CNC Lathe?
2 . 25 years export experience
3 . CE,ISO Certificates
4 . 24 HOURS ONLINE SERVICE (MSN,SKYPE, Trademanager)
6 . 12 months quality warranty
7 . Oversea engineers available for problem resolving
