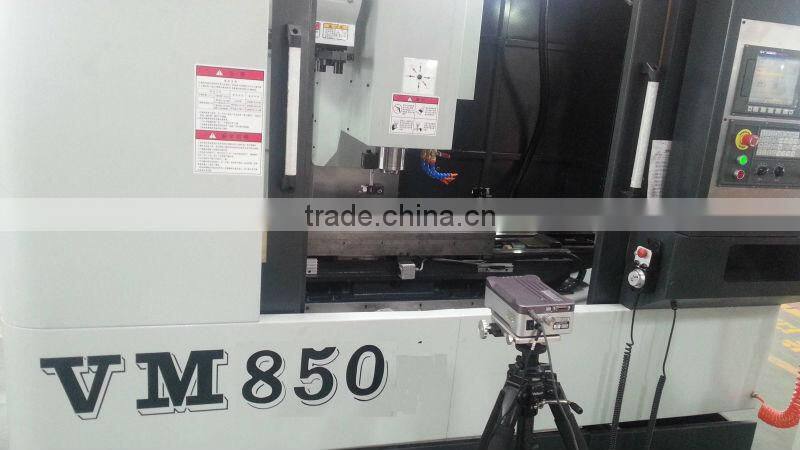

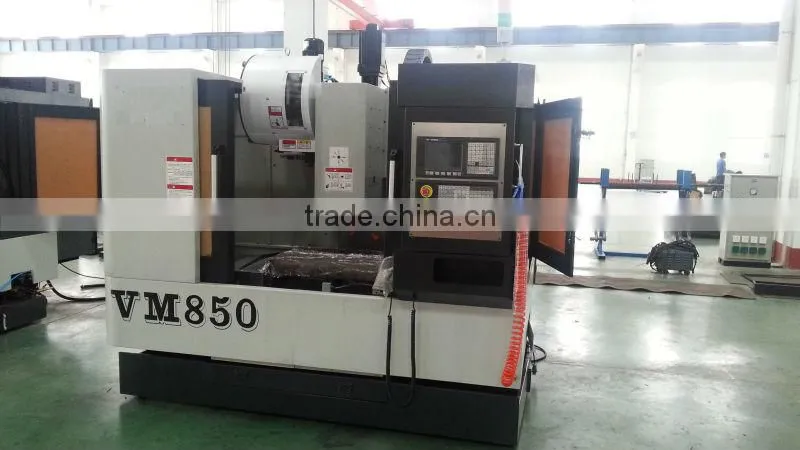

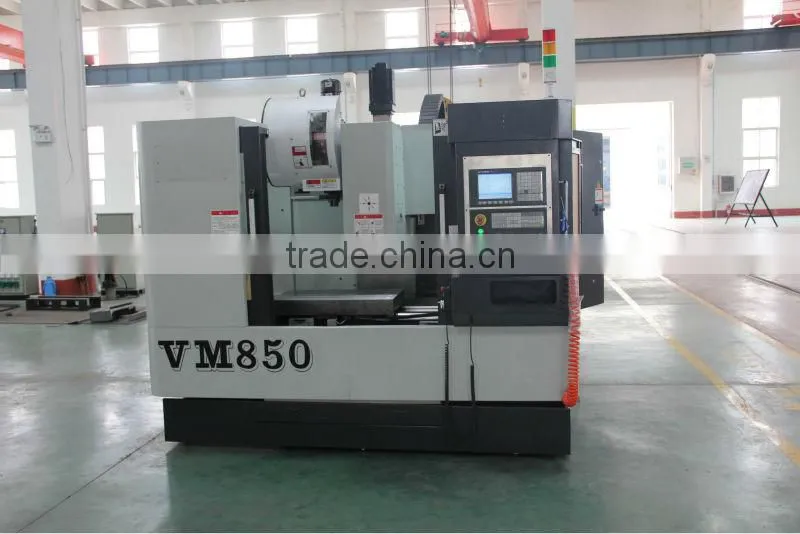

VM850 FANUC CNC Milling Machine in Competitive Price

VM850 FANUC CNC Milling Machine in Competitive Price thumbnail-1
VM850 FANUC CNC Milling Machine in Competitive Price photo-1
US$ 24,800 - 32,800 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
MACH
Contact Supplier Request Quote Chat Now
Dalian Mach Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Dlian Port China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shandong, China
Brand Name MACH
Model Number VM850
Type Universal
CNC or Not CNC
Voltage 220V, 380V, 415V, 440V,etc
Power(W) 7.5kw
Dimension(L*W*H) 2450x2200x2300mm
Weight 4650kgs
Certification CE, ISO certificate
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

VM850 FANUC CNC Milling Machine in Competitive Price





Product Description



Main Specification:

Table

Area

Unit

  800×510 mm

T-slot

mm

  5-18H8

Max. load

kg

  500

Travel

Moving range X, Y, Z

mm

  800×500×500

Spindle nose to table surface

mm

  150 to 650

Spindle center to column guideway

mm

  540

Feed

Rapid feed speed  X, Y, Z

m/min

  18

Feed speed  X, Y, Z

mm/min

  2 to 4000

Spindle

Taper



  BT40

Speed

r/min

  (AC servo) 40 to 6000

Power

kW

  AC servo 7.5

Accuracy

Positioning accuracy

mm

  ±0.015

Re-positioning accuracy

mm

  ±0.0075

Net Weight

kg

  4650





CNC Control System:

There are the following control systems for your selection:



FANUC Oi mate MD system,

Siemens 808D system,

GSK 980M system









Standard Accessories:
45 degree overall slant bed.
Hydraulic 3-jaw non through-hole chuck
12 stations hydraulic turret
Automatic chip conveyor with chip cart
Hydraulic Tailstock
Fully-enclosed guarding


Optional Accessories:
Through-hole Chuck + Cylinder
Tool Setter(RENISHAW)
Door safty Inter-lock



Packaging & Shipping





Packing Dimension:
2230x2080x2460mm

Gross Weight / Net Weight:
2750 Kgs / 2900 Kgs


Standard Style:
VM850 FANUC CNC Milling Machine in Competitive Price

VM850 FANUC CNC Milling Machine in Competitive Price



VM850 FANUC CNC Milling Machine in Competitive Price



VM850 FANUC CNC Milling Machine in Competitive Price







Company Information



About our company:

We are one of biggest manufacturer of producing CNC Milling Machine, Vertical machining Center, Universal Milling Machine, CNC Lathe,etc in China. We entered the top 8 machine tool builders in the world.  Our CNC Milling Machine sell to more than 100 countries and regions worldwide.







...
