Home > Manufacturing & Processing Machinery > Machine Tools > Milling Machine > VM850 FANUC CNC Milling Machine China Company

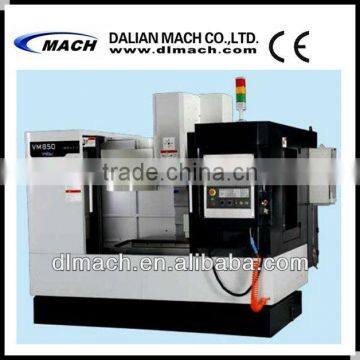

VM850 FANUC CNC Milling Machine China Company

Name: VM850 FANUC CNC Milling Machine China Company
Brand: MACH
SKU: 141435142
Availability: InStock

Dalian Mach Co., Ltd.

VM850 FANUC CNC Milling Machine China Company thumbnail-1

VM850 FANUC CNC Milling Machine China Company photo-1

US$ 24,800 - 32,800 MOQ: 1 Unit

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

MACH

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Dlian Port China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Shandong, China

Brand Name MACH

Model Number VM850

Type Universal

CNC or Not CNC

Voltage 220V, 380V, 415V, 440V,etc

Power(W) 7.5kw

Dimension(L*W*H) 2450x2200x2300mm

Weight 4650kgs

Certification CE, ISO certificate

Warranty one year

After-sales Service Provided Engineers available to service machinery overseas

VM850 FANUC CNC Milling Machine China Company

Main Specification:

Table	Area	Unit	800×510 mm
	T-slot	mm	5-18H8
	Max. load	kg	500
Travel	Moving range X, Y, Z	mm	800×500×500
	Spindle nose to table surface	mm	150 to 650
	Spindle center to column guideway	mm	540
Feed	Rapid feed speed X, Y, Z	m/min	18
Feed	Feed speed X, Y, Z	mm/min	2 to 4000
Spindle	Taper		BT40
	Speed	r/min	(AC servo) 40 to 6000
	Power	kW	AC servo 7.5
Accuracy	Positioning accuracy	mm	±0.015
Accuracy	Re-positioning accuracy	mm	±0.0075
Net Weight		kg	4650

CNC Control System:

There are the following control systems for your selection.

FANUC Oi mate MD system,

Siemens 808D system,

GSK 980M system

Standard Accessories:

45 degree overall slant bed.

Hydraulic 3-jaw non through-hole chuck

12 stations hydraulic turret

Automatic chip conveyor with chip cart

Hydraulic Tailstock

Fully-enclosed guarding

Optional Accessories:

Through-hole Chuck + Cylinder

Tool Setter(RENISHAW)

Door safty Inter-lock

Packing Dimension:

2230x2080x2460mm

Gross Weight / Net Weight:

2750 Kgs / 2900 Kgs

About our company:

We are one of biggest manufacturer of producing CNC Milling Machine, Vertical machining Center, Universal Milling Machine, CNC Lathe,etc in China. We entered the top 8 machine tool builders in the world. Our CNC Milling Machine sell to more than 100 countries and regions worldwide.

...
