High Speed PP Material Colorful Straight Plastic Drinking Straw Extrusion Machine

High Speed PP Material Colorful Straight Plastic Drinking Straw Extrusion Machine photo-1

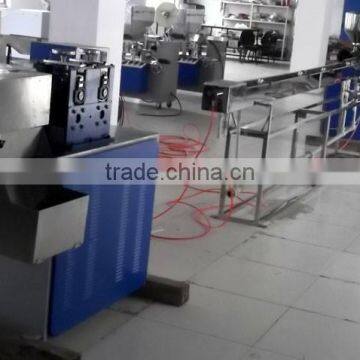

High Speed PP Material Colorful Straight Plastic Drinking Straw Extrusion Machine photo-2
High Speed PP Material Colorful Straight Plastic Drinking Straw Extrusion Machine photo-3
High Speed PP Material Colorful Straight Plastic Drinking Straw Extrusion Machine photo-4
High Speed PP Material Colorful Straight Plastic Drinking Straw Extrusion Machine photo-5
High Speed PP Material Colorful Straight Plastic Drinking Straw Extrusion Machine photo-6
US$ 11,000 - 16,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Liaoning, China
Brand Name:
MACH
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian Port China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Liaoning, China
Brand Name MACH
Model Number CY01
Voltage 380V
Power(W) 25KW
Dimension(L*W*H) 3500x1200x1850mm
Weight 1850kgs
Certification CE
Warranty One Year
After-sales Service Provided Engineers available to service machinery overseas

High Speed PP Material Colorful Straight Plastic Drinking Straw Extrusion Machine





Product Description



Brief Introduction:



High Speed PP Material Colorful Straight Plastic Drinking Straw Extrusion Machine Model:CY01 is a tubing extrusion line.

It is composed of extruder and die,Vacuum calibration and cooling unit, hauloff and rotary cutter or coiler,

all the machine's controls base with the control elements ergonomically adapted to permit easy operation.

The system is also suitable for extruding straws, refiltubes and most small diameter tubing and a wide

range of industrial applications.









Main Specification:


Typical Capacity:
Drinking Straws            30,000 --- 40,000pcs/hour
Cotton swab sticks          60,000pcs/h
Pen Refills                      40,000pcs/h
Min. Diameter:                3.0mm
Max.Diameter:                12.00mm
Min. Length:                    90mm
Max.Length:                    300mm

Diameter of Extruder Screw:  50mm

Total Power:                   25 KW
Working Power:             10 KW
Material:                          PP
Ends:                              90°/90°,90°/45°,90°/60°,45°/45°,60°/60°
Colors:                            Single,Two or Three, SPIRAL STRIPES,STRAIGHT STRIPES.
Operator:                        One operator is sufficent to run the line
Area Requirement:         Length: around 8 meter.    Width: around 2 meter.

Raw Material:                Polypropylene (P.P )
Grade:                             Extrusion & Drawing
Shape:                             Pellet
Melt Index:                        2.5
Drawing Intensity:            380/ 350
Kneading Modulus:          17000
Rockwell Hardness:         100
Vica Soften Temperature: 160 C


Extruder:

The main extruder's screw designed to suit plastic material specified. Tube die head with die pin/bush assembly manufactured in tool steel. They are controlled by inverter.


Vaccum Calibration and Cooling:

Water bath in stainless steel with full adjustment in three planes for accurate alignment With extrusion die. Fitted with venturi vacuum sizing unit with stainless steel vaccum chamber, reservoir tank and lid, circulating pump, and all necessary pipe work and controls.


Haul-off:
Caterpillar haul-off with linatex covered belt or haul-off with rollers, driven by motor with control for variable linear speed between 10 and 200 metres/minute or to suit customer's requirements. This unit provides two functions for added choice straight or spiral stripes on the tubing surface. Inverter control


Rotary Cutter:
Fitted with either single or double rotary cutter, suitable for light duty applications driven by variable speed gearbox. Inclides cutting and quick bushes with necessary guarding. Inverter control
Hall-off and Rotary Cutter:
Hall-off be combined with Rotary cutter.





Pictures:

 High Speed PP Material Colorful Straight Plastic Drinking Straw Extrusion Machine



High Speed PP Material Colorful Straight Plastic Drinking Straw Extrusion Machine



High Speed PP Material Colorful Straight Plastic Drinking Straw Extrusion Machine



High Speed PP Material Colorful Straight Plastic Drinking Straw Extrusion Machine



We can supply High Speed Automatic Drinking Straw Extrusion Machine  in one color, two colors, three colors.



High Speed PP Material Colorful Straight Plastic Drinking Straw Extrusion Machine



Packaging & Shipping



High Speed PP Material Colorful Straight Plastic Drinking Straw Extrusion Machine



Company Information

Dalian Mach Co., Ltd. have a group of professional engineers in charge of technology, manufacturing, installing and testing, so we can guarantee that our plastic straw making machine will put on good performance based on high quality.

Our drinking straw extrusion machine have been exported to more than 60 countries such as Canada, the U.S.A., Italy, France, Guatemala, Brazil, Bolivia, Chile, Russia, Romania, Saudi Arabia, Syria, Jordan, the U.A.E., Indonesia, Singapore, Thailand, India, Pakistan, South Africa, Egypt, Nigeria, Kenya and Ghana.

We sincerely hope to establish a long-term cooperative relationship with you and become your true partner when you need our service





FAQ



Q:Why choose our drinking straw extrusion machine?

A: 1 . High quality with competitive price
     2 . 25 years export experience
     3 . CE,ISO Certificates
     4 . 24 HOURS ONLINE SERVICE (MSN,SKYPE, Trademanager)
     6 . 12 months quality warranty
     7 . Oversea engineers available for problem resolving

Q:Can we start with small quantity ?What's the MOQ?
A:  We can accept orders with any quantity. The MOQ is 1 unit.

Q: Do you have QC or any safety standards for your drinking straw extrusion machine?
A:  yes,we have established a highly strict quality control department to guanrantee good quality.

Q: How can we learn to operate the drinking straw extrusion machine?
AOperation teaching video and instructions even engineer are available.

Q:  Do you have any other models for me to choose?
 A: More Drinking Straw Machine Please Click The Image Below.
