CE Certification High Efficiency

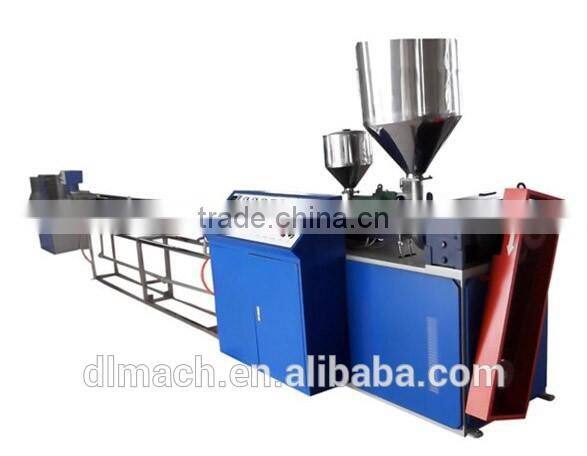

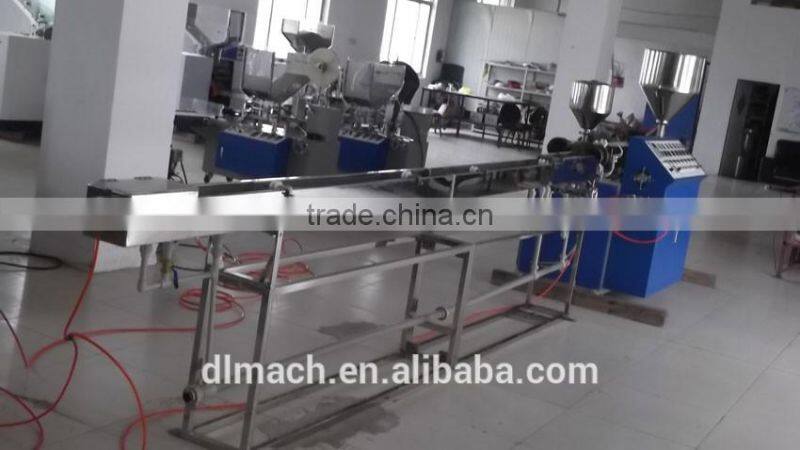

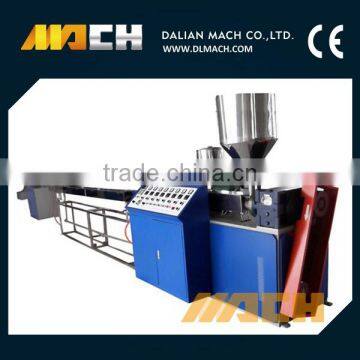

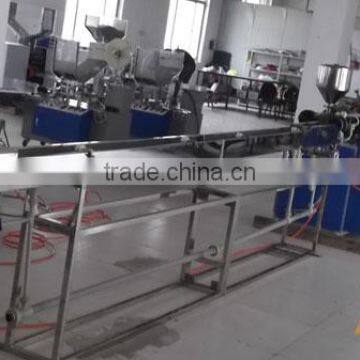

CY Series Automatic Straw Making Machine
Brief Introduction of CY Series Automatic Straw Making Machine:
Cotton swab sticks 60,000pcs/h
Pen Refills 40,000pcs/h
Material: PP
Ends: 90°/90°,90°/45°,90°/60°,45°/45°,60°/60°

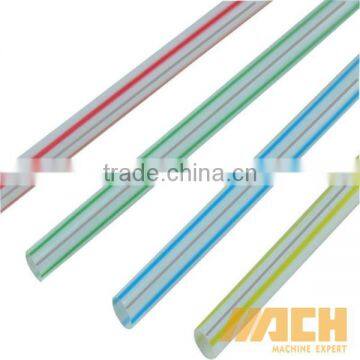

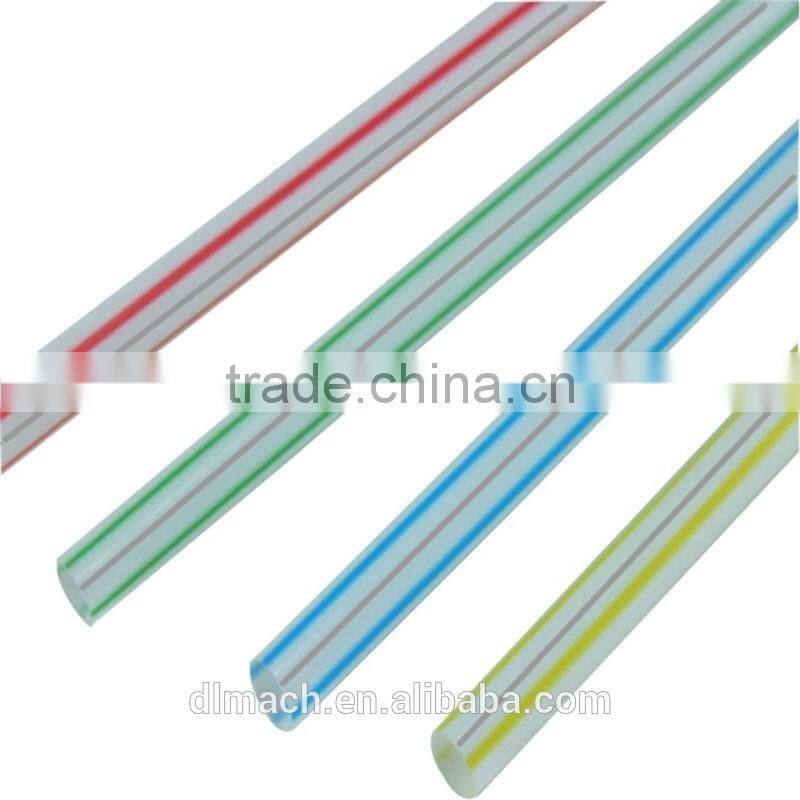

Colors: Single,Two or Three, SPIRAL STRIPES,STRAIGHT STRIPES.
Operator: One operator is sufficent to run the line

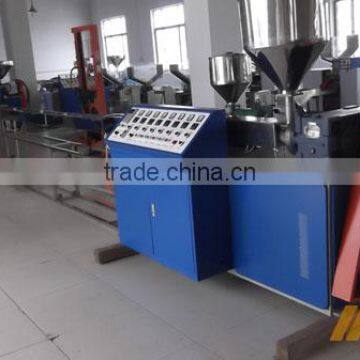

Extruder:
The main extruder's screw designed to suit plastic material specified. Tube die head with die pin/bush assembly manufactured in tool steel. They are controlled by inverter.

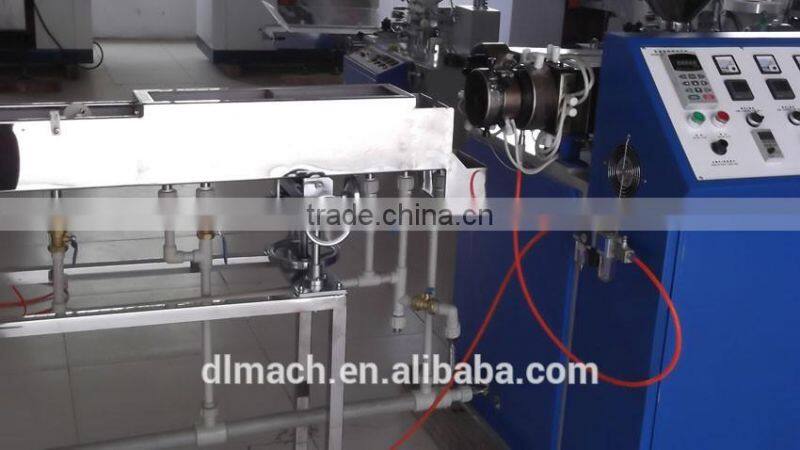

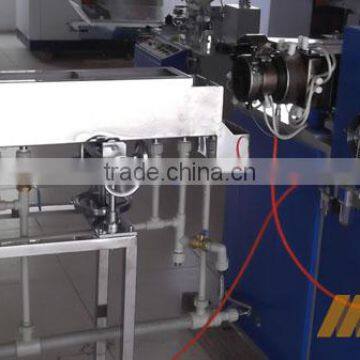

Vaccum Calibration and Cooling:
Water bath in stainless steel with full adjustment in three planes for accurate alignment With extrusion die. Fitted with venturi vacuum sizing unit with stainless steel vaccum chamber, reservoir tank and lid, circulating pump, and all necessary pipe work and controls.
Haul-off:
Caterpillar haul-off with linatex covered belt or haul-off with rollers, driven by motor with control for variable linear speed between 10 and 200 metres/minute or to suit customer's requirements. This unit provides two functions for added choice straight or spiral stripes on the tubing surface. Inverter control
Rotary Cutter:
Fitted with either single or double rotary cutter, suitable for light duty applications driven by variable speed gearbox. Inclides cutting and quick bushes with necessary guarding.
Inverter control

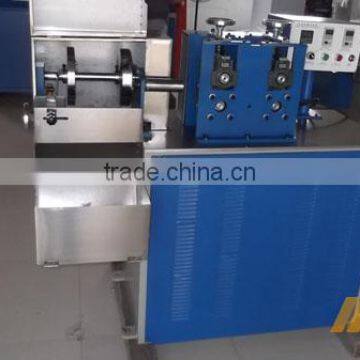

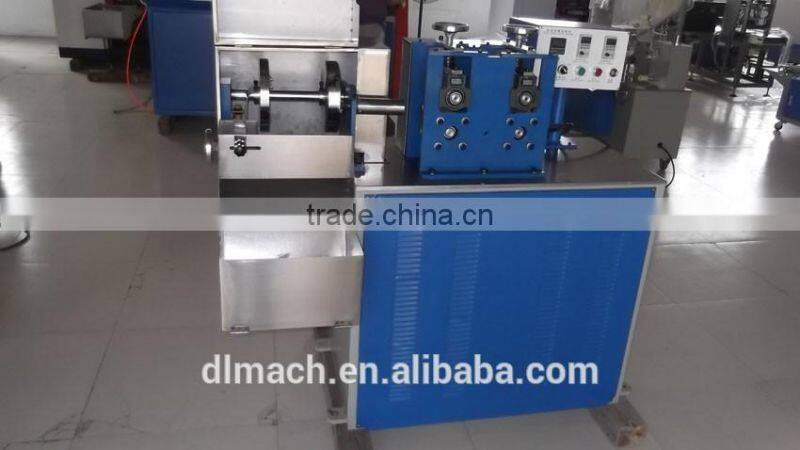

Hall-off and Rotary Cutter:
Hall-off be combined with Rotary cutter.
Packing in Standard Exporting Wooden Cases
Quality Warranty:
Export History:
Q: Why choose our cy series automatic straw making machine?
A: 1 . High quality with competitive price
2 . 25 years export experience
3 . CE,ISO Certificates
4 . 12 months quality warranty
5 . Oversea engineers available for problem resolving
Q: Can we start with small quantity ?What's the MOQ?
A: We can accept orders with any quantity. The MOQ is 1 unit.
Q: How can we learn to operate the cy series automatic straw making machine?
A: Operation teaching video and instructions even engineer are available.
We also have the related products like Plasrtic Straw Making Machine,Plastic Straw Packaging Machine and Plastic Spoon Making Machine as follows:
Any interest please click the pictures:
