Specifications
charcoal making machine1. 30 years experience
2.Competitive price
3. CE, ISO certificates
charcoal making machine bbq charcoal
Brief introduction of charcoal making machine bbq charcoal:
Production description of the charcoal making machine bbq charcoal:
Raw material is coconut shell charcoal powder, wood charcoal powder, bamboo charcoal, sawdust charcoal powder,etc all charcoal powder can be used as raw material.
The size of the final powder is less than 3mm, If not, should be crushed first.
Finished charcoal briquettes are hollow quadrangular, hexagonal or cyclindical 40-80mm diameter rod shape, with 15-20mm hole in it, it can used as fuel, boiler heating, cooking and other field. not only it has long burning time, but also smokeless, smelless, clean, widely used in barbecue market.
Complete production line: raw material---crusher---wheel mixer---binder mixer---hydraulic charcoal machine.

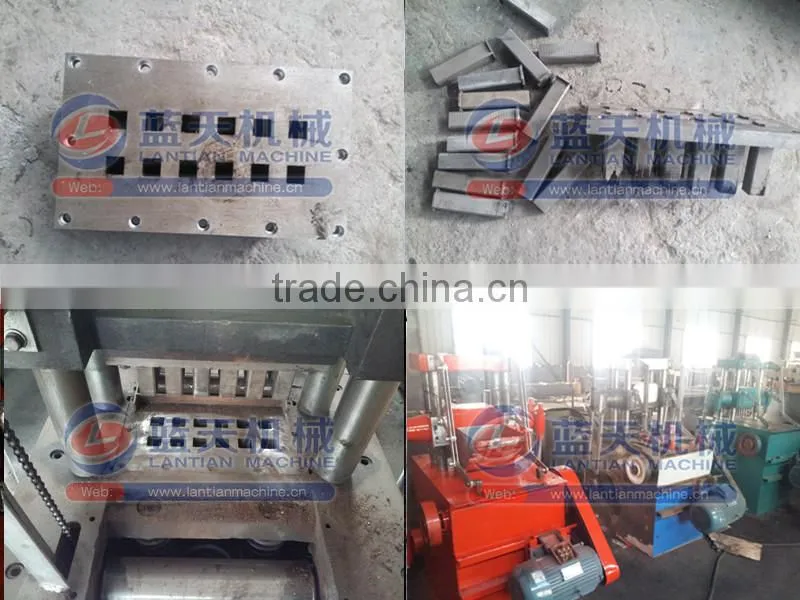

Pictures about the main parts of charcoal making machine bbq charcoal:
1) the material of part is chromium steel, the feature is high hardness, wear-resistant, corrosion-resistant and not rust, the service time is 3-4 years( 6-8 hours working time per day),
2) the mold use wire cutting process technology, so the size of mold is very precise. if the mold is abrasion, we can provide the mold with low price and high quality,
the mold is easy to repair and install.
Main features of the charcoal making machine bbq charcoal:
1)Special design is suitable for light powder materials.
2)Reasonable structure with easy clearance and maintenance.
3)Transmission system in main gear box below airtight is completely separated, reducing noise and wear.
4)The model of hookah charcoal pressing machine is changeable.different model meet different requirements.
Two types of charcoal making machine bbq charcoal:
One Mechanical press type, the other is Hydraulica press type

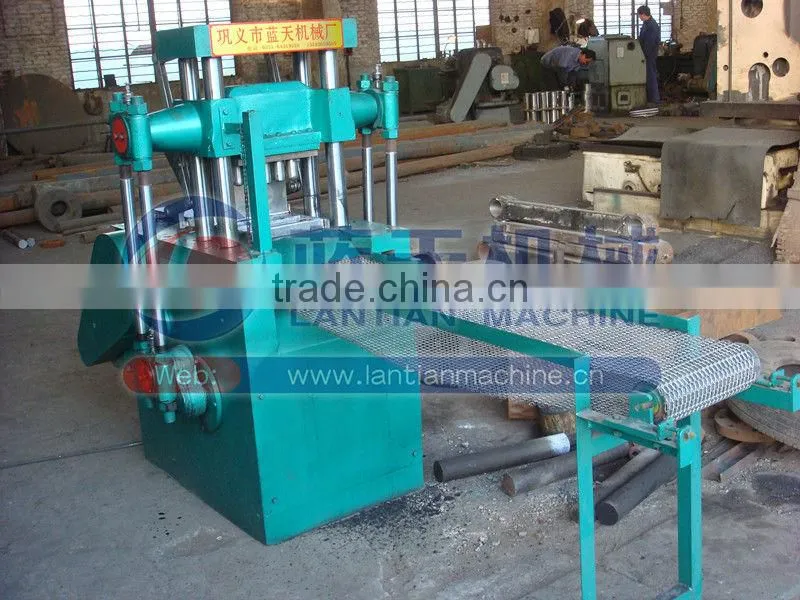

the first type: Mechanical press charcoal making machine bbq charcoal: (11-16 pieces per time, 20-40 times per minture)

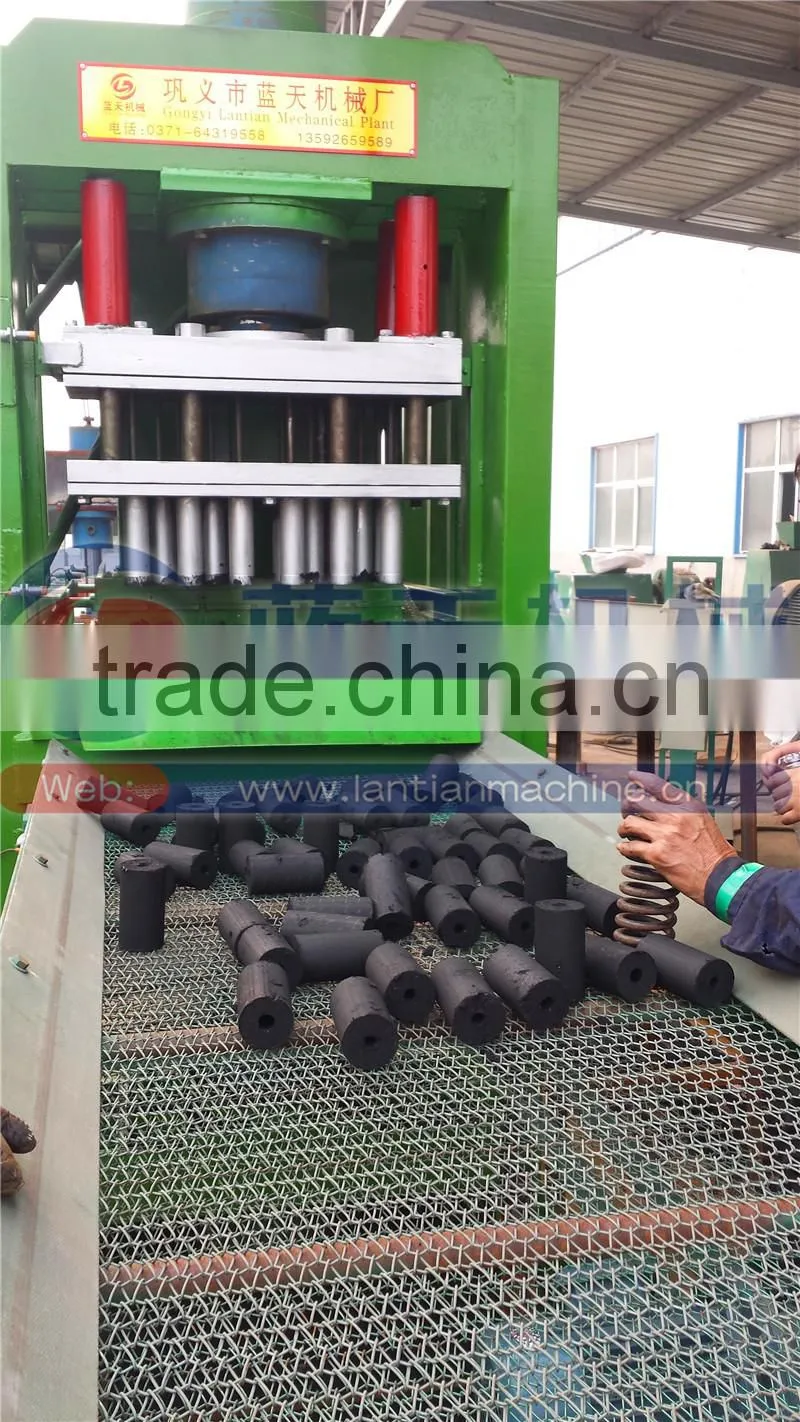

The second type: Hydraulic press type charcoal making machine bbq charcoal, the length can be from 20mm to 120 mm.
Include four parts:1) electric control cabinet, 2) touch screen, 3) hydraulic cyclinder, 4) main engine.

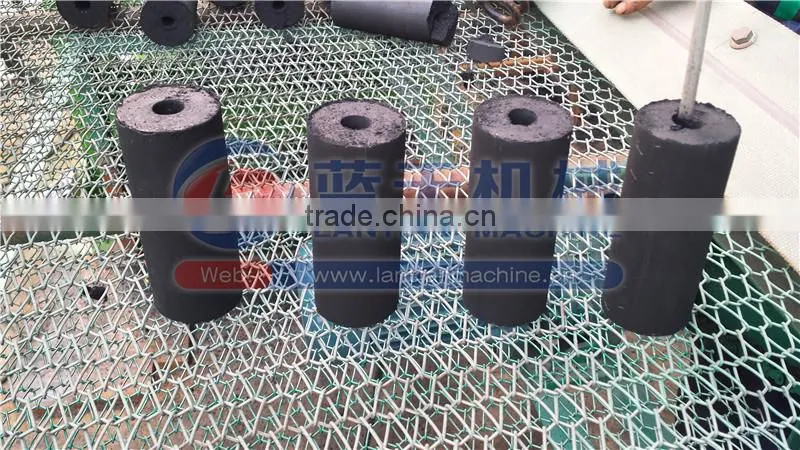

The final products of bbq charcoal:
1.The outlet bbq are good looking, smokeless, non toxic, long buning, one piece can burning 4 hours, easy fire and high heat.
2. we can provide the special binder formula after the order for free.
3. change the mould can be different shape, we can customize the mould as your requirements.

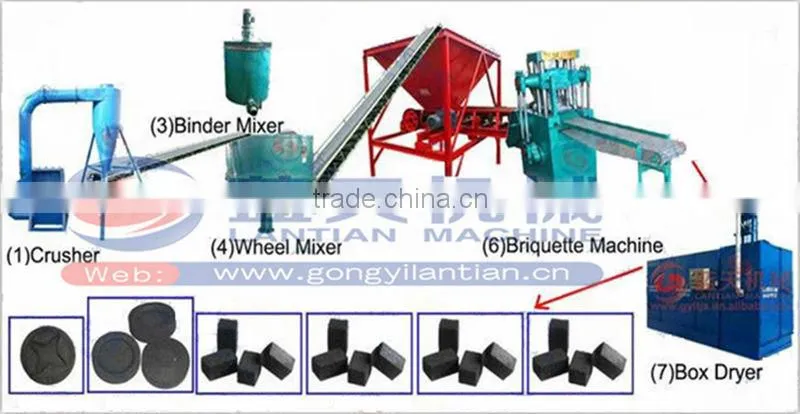

The whole production line related to charcoal making machine bbq charcoal:
Raw materials----carbonization furnace----charcoal crusher----binder mixer----wheel mill----
shisha charcoal machine----finished shisha charcoal briquettes----dryer
If want to make good shisha, must need to make attention on following:
1. Raw material: hardwood charcoal, coconut shell charcoal, bamboo charcoal are good material for make shisha briquettes.
2. only good quality shisha charcoal tablet press machine can make good shisha hookah briquettes,our machine are patented products,
we have hydraulic type and mechanical press type for you choose.
3.It need to confirm the binder formula is natural, smelless, nontoxic.we can provide the special binder foumula after order for free.
4.also we can depend on your specific situation design the production line to you.
Technical parameters of charcoal making machine bbq charcoal:
Model |
LTYJ-9 |
LTYJ-48 |
Applicable materials |
Charcoal powder, coal powder, sawdust, any powder material |
|
Capacity |
11-16 pieces/time 20-40 times/min |
48 pieces per time(30mm) 8-20 times/min |
Motor |
7.5 kw ( 4 pole) |
18.5 kw (4 pole_ |
Diameter of briquettes |
20, 25,30, 35, 38, 40, 43mm( round): 20-40mm( cubic) |
20, 25,30, 35, 38, 40, 43mm( round): 20-40mm( cubic) |
Feeding materials |
≤3mm |
≤3mm |
Briquette shape |
Round shape and cubic shape or as customers’ request |
Round shape and cubic shape as customers’ request |
Pressure |
40-60tons (adjustable) |
40-150tons |
Pressure type |
Mechanical press |
Hydraulic press |
Overall size |
2500*950*1550mm (include conveyor) |
3500*2000*1800mm (include conveyor) |
Packing size |
1500*1200*1750mm |
2100*2100*1900mm |
Weight |
1500kg |
5500kg |
Pre-sale service:
1.According to the customer needs to recommend relative models machine.
2.According to the customer's special requirements to customize equipments.
3.Our engineers will supply the site and equipment drawing.
After-sale service:
1.According to the purchase contract,our company can send engineers to help installation.
2.The quality guarantee is 1 year,not including the wearing parts.
3.Collecting customer feedback,solve the real problems faced by customers.
4.Our company supply sapre parts the whole year.

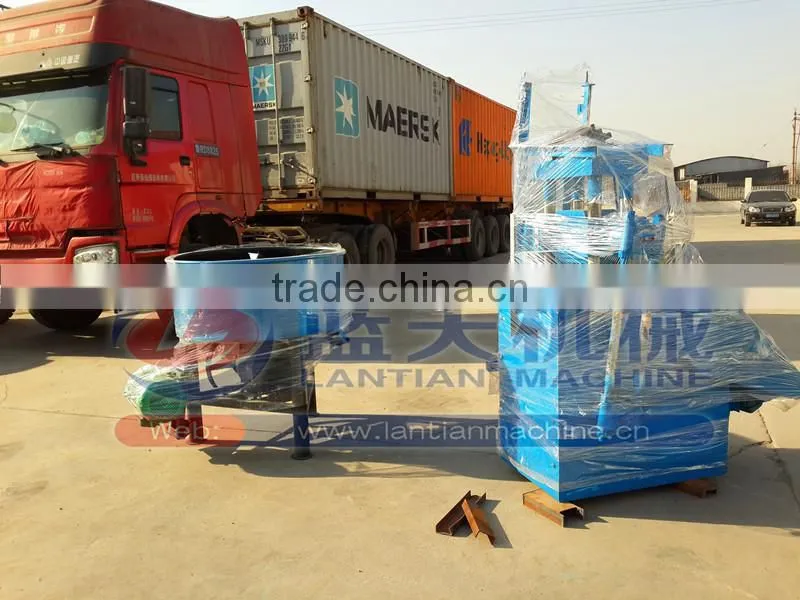

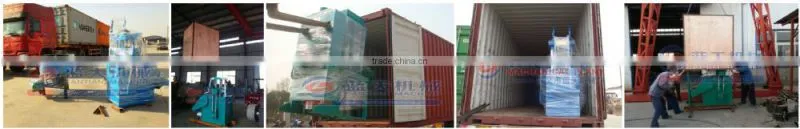

1. All the machines will be wrapped up with plastic film first (including the motor).
2. The plastic film bag wrapped machine, according to the size and weight to make wooden or iron box, put machine in and fixed the box after loading. (The box material can be made as your requirements)
3. The machine parts need to be put in a fixed container, should be fixed well, lest collision and wear, or lost.

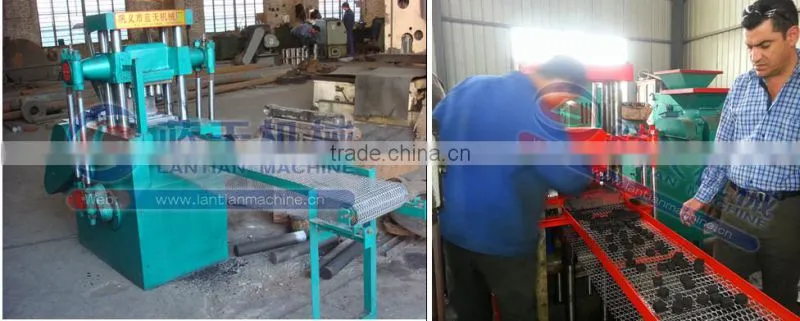

Our working experience about the charcoal making machine bbq charcoal for 30 years

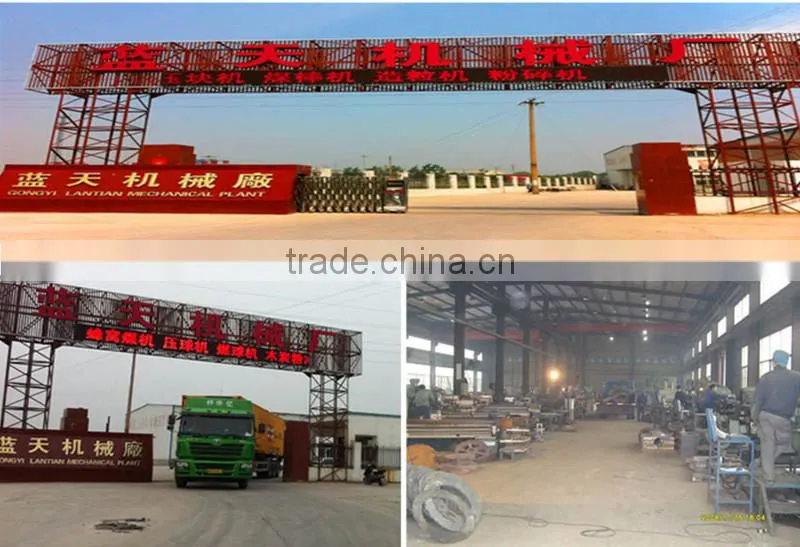

Lantian Mechanical Plant, which located in Gongyi, Henan province,is a modern enterprisewhich setsthe scientific research,
production and sales as a whole.We have a modern management system,the first-class processing art, perfect detection means, high quality science and technology talent team
and after-service system. Our company has been rated as "Quality Trustworthy Unit" "Brand-name
and High-quality products" and "QualityManagement Advanced Unit".In order to meet the different

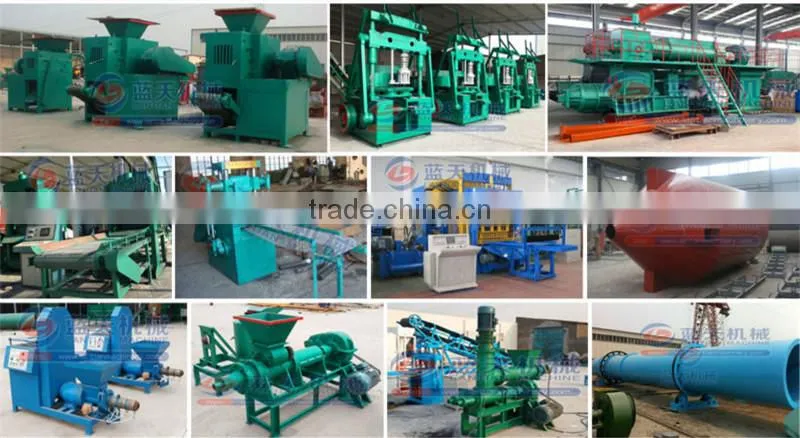

requirements of customers, we designed and researched many types of charcoal processing
machine including charcoal & coal briquette machine, Shisha/hookah charcoal machine,sawdust
charcoal briquette machine, tablet press machine, rotary dryer vertical dryer, belt mesh dryer
and mixer, crusher, blinder, etc.
Other assistant equipments of charcoal making machine bbq charcoal

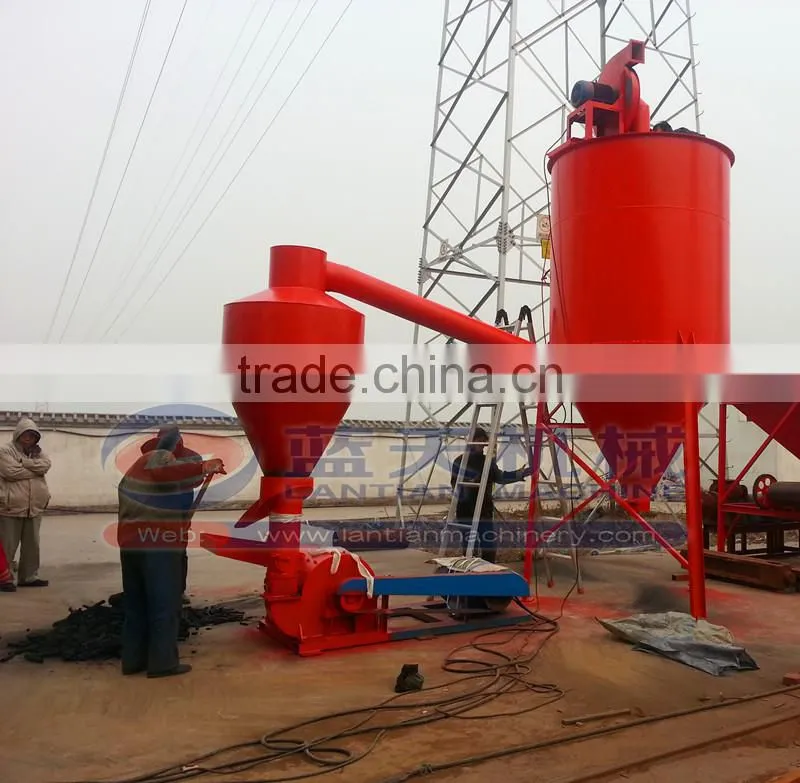

1)crusher
the first step is to crush raw material into fine hookah powder. The smaller the hookah powder's size is, the better.

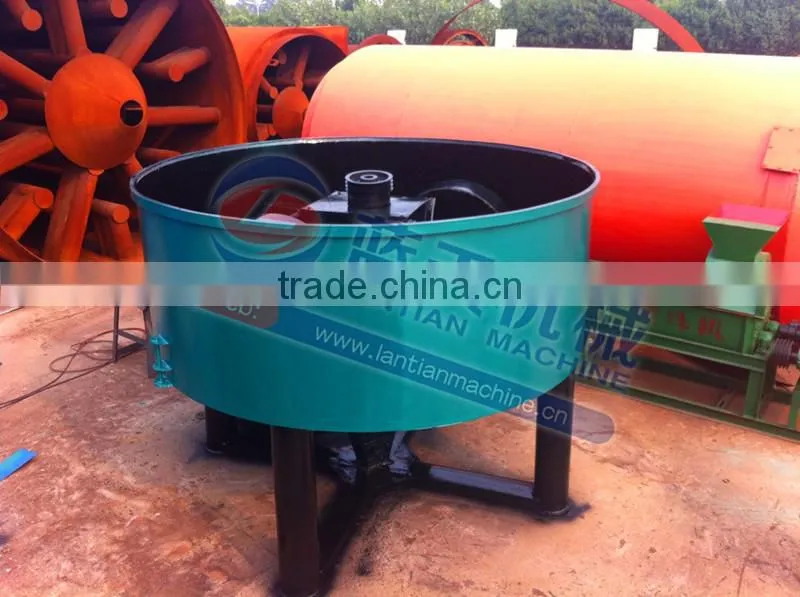

2) wheel mixer
The second step of charcoal making machine bbq charcoal is to mix charcoal powder with natural binder evenly. The reason why we use wheel mixer is that wheel mixer can not only improve shisha powder's density, but also press shisha powder into smaller size.

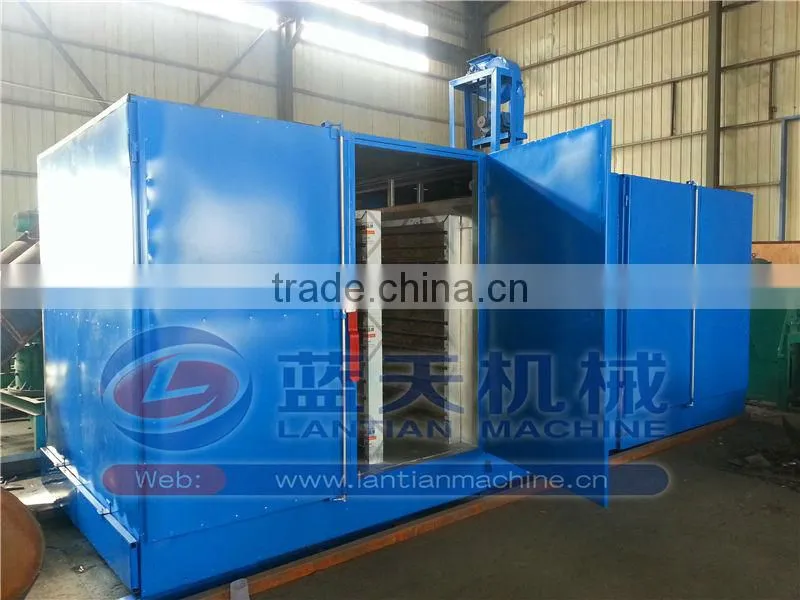

3) Box dryer:
The last step of the charcoal making machine bbq charcoal is to dry bbq briquettes in box dryer. Due to the liquid binder the final briquettes will have 15-20% water content, so we need to dry the briquettes to 3-5%.
Welcome to our factory to check performance of the shisha charcoal briquette machine or contact with me at any moment.
