Introduction of the coal ball press machine:

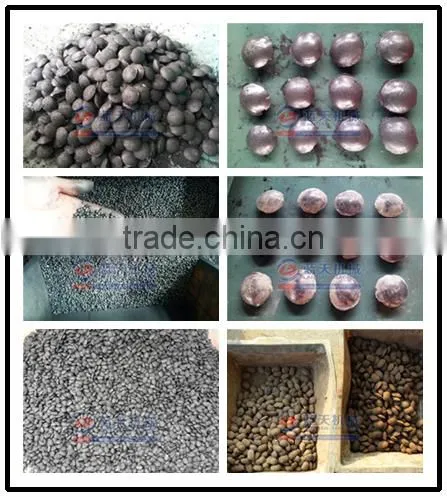

Coal briquette machine can be used to make coal briquettes of differen shapes. The raw material comes from small size waste charcoal broken in storage or while transportation, or comes from charcoal chunk after biomass burned. With this machine, the waste charcoal chunk can be made into charcoal briquettes or cahrcoal stick and recycled for barbecue, room heating etc.
charcoal ball press machine Application materials:
A: Coal/coke/charcoal powder.
B: Metal powder: Iron powder, magnesium oxide powder, copper powder, chromium ore, lead, zinc scrap, bauxite, nonferrous metal powder, silicon manganese alloy powder etc.
C. Mineral powder: aluminum powder, toner, gypsum, sludge, desulphurization gypsum powder etc
charcol ball press machine Working Priciple
This series of briquette machine will pass the power on to the two pressure roller through the reducer.The two sides and roll rotation, in both the rotating roll,Natural materials to enter the ball roll mode, with the roll rotation, material pressure on a small become larger, When the material to the two rollers rotating line contact point, the pressure of materials has reached the peak. Tremendous pressure in the role of line, the materials become a finished product from the powder ball
Ball press machine include coal briquetting machine,coke briquetting machine,mineral powder briquetting machine,lime briquetting machine.

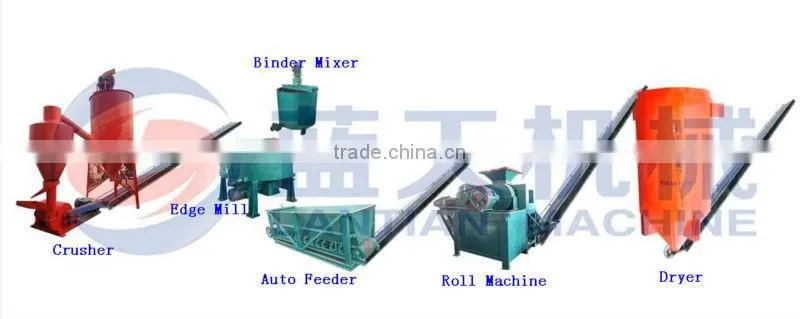

Raw materials ---crushing---feeding---mixing---briquetting---drying---finished products
The related machine display:

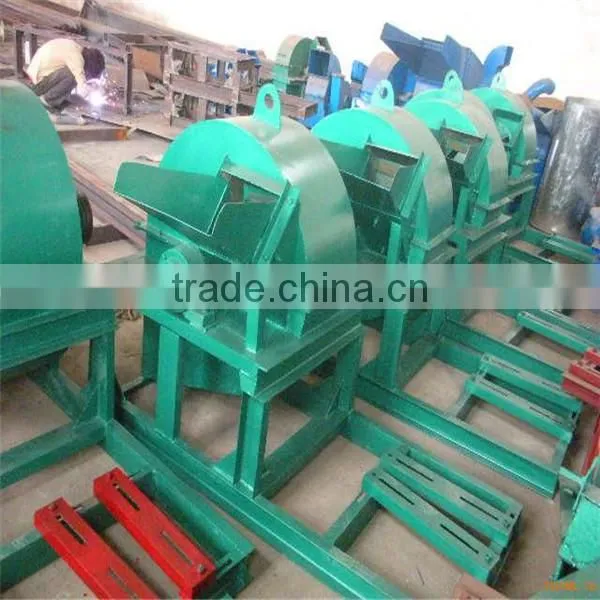

(1) Charcoal crusher
Usually many customers raw materials are wood charcoal, coconut shell charcoal, bamboo charcoal, etc; Or some customers raw materials are small charcoal pieces and particles, but please pay attention: the charcoal powder diameter need less than 3mm, so you can make better quality charcoal briquettes. Our crusher can crush charcoal into 1mm powder, so finished charcoal
surface is more smooth.

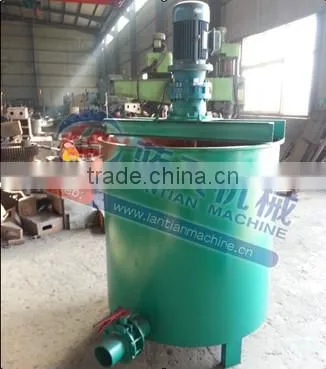

(2) Binder mixer
Using this binder mixer can mixing the liquid binder(special formula) uniformly, then add this liquid binder into charcoal powder, to make the finished charcoal briquettes much stronger, not easy broken, also has smooth surface and long burning time.
(3) Wheel mill
After adding liquid binder into charcoal powder, this wheel mill can mix binder and charcoal powder uniformly.

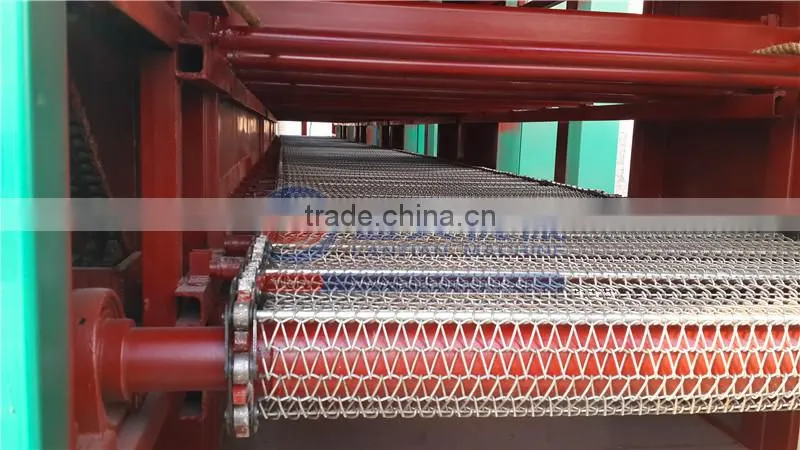

(4) Conveyor belt
If you want to achieve automation, this machine can save manpower largely.

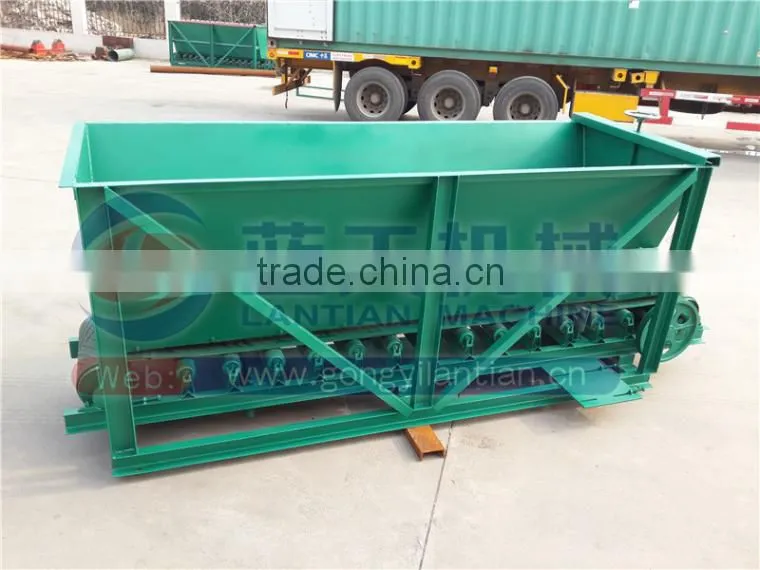

(5) Quantitative feeder
In order to prevent feed more or less one time, this feeder is better choice, the speed can be adjusted according to your capacity demands.

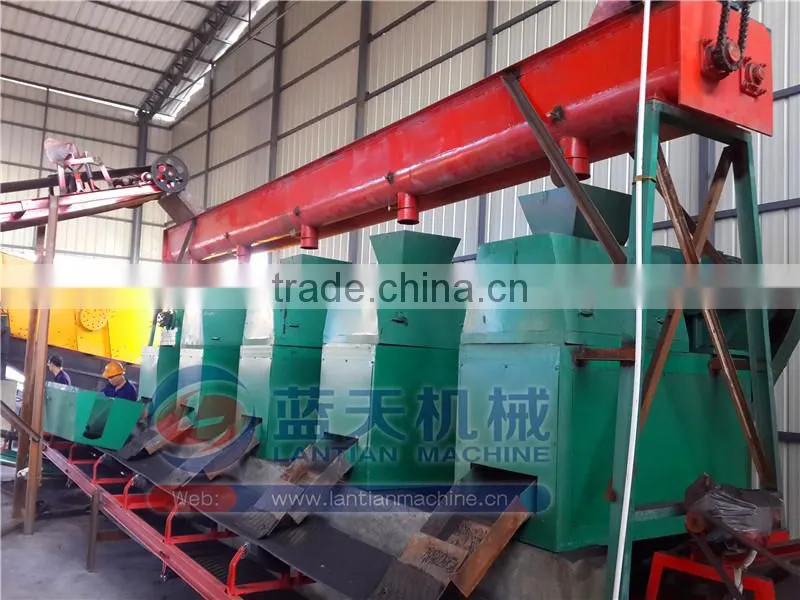

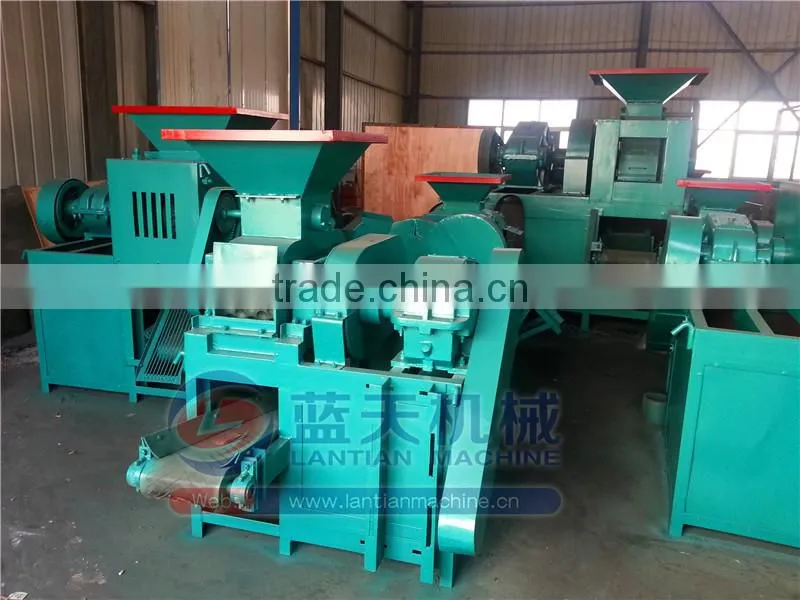

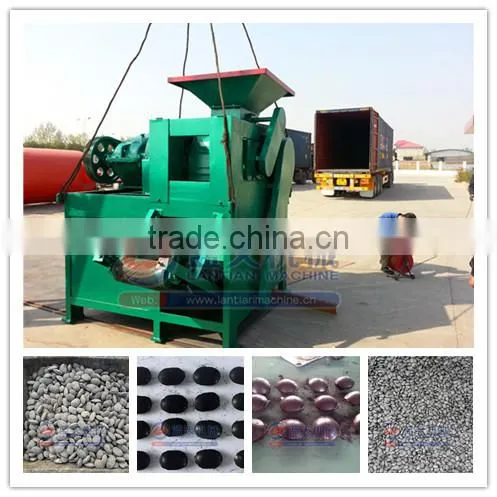

(6) charcoal ball press machine
I am very willing to suggest suitable types if you share me your ideal capacity requirements.
Parameters:
The capacity below is based on the coal powder, and the real machine and real capacity is accordiing the materials you use.
| Type | Roller Diameter | Capacity | Motor power | Outlet shape and size |
| YQJ-290 | 290mm | 1-2 ton/h | 5.5 kw | Customized |
| YQJ-360 | 360mm | 3-4 ton/h | 7.5 kw | Customized |
| YQJ-450 | 450mm | 5-6 ton/h | 15 kw | Customized |
| YQJ-550 | 550mm | 6-10 ton/h | 18 kw | Customized |
| YQJ-650 | 650mm | 10-15 ton/h | 25 kw | Customized |
| YQJ-850 | 850mm | 15-25 ton/h | 30-55 kw | Customized |
| YQJ-1000 | 1000mm | 25-35 ton/h | 75-130 kw | Customized |
Pre-sale services: We can provide you with project design, process design, suitable purchase program for your equipment.Also design and manufacture products based on your specific needs, to train your technical personnel.
During Sale: We will accompany you to complete the equipment inspection, construction plan and assist in the development process in detail.
After Sale Service: We send technicians to the scene to guide the equipment installation, commissioning and training your operating personnel.
