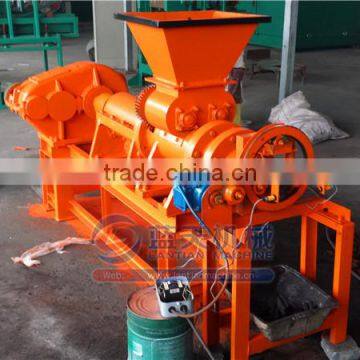

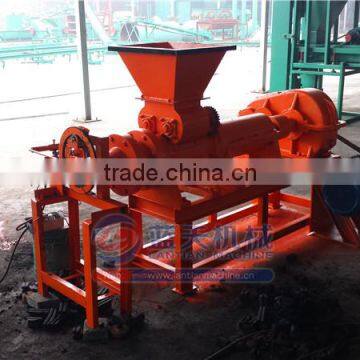

Extruding Type Charcoal Log Making Machine

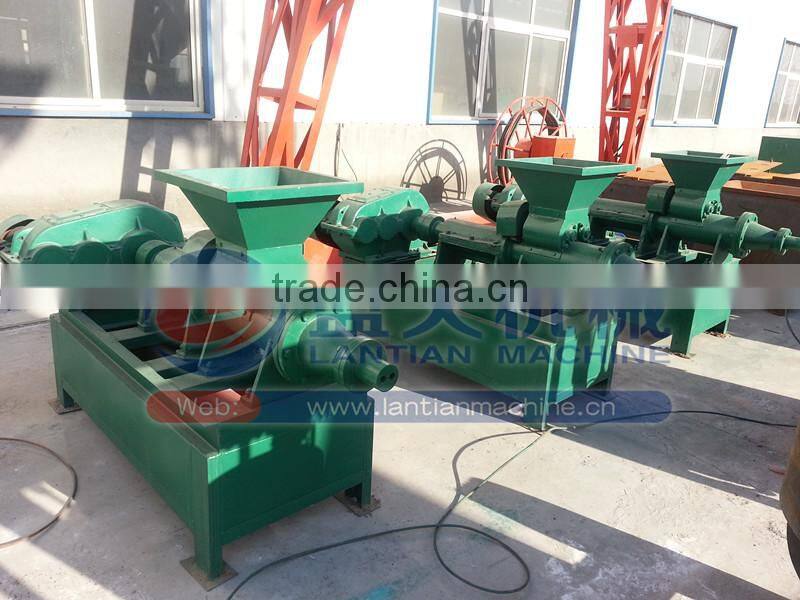

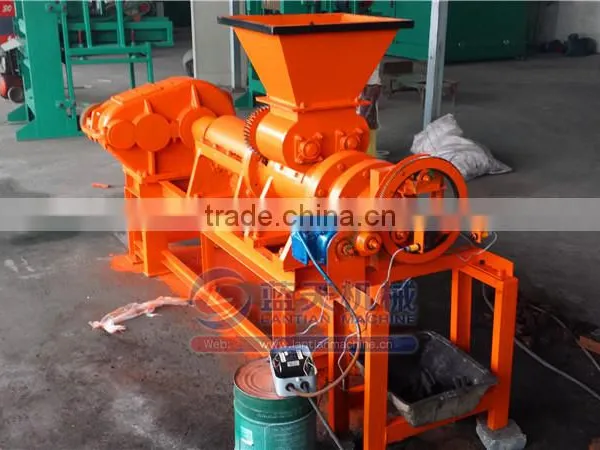

Model 140

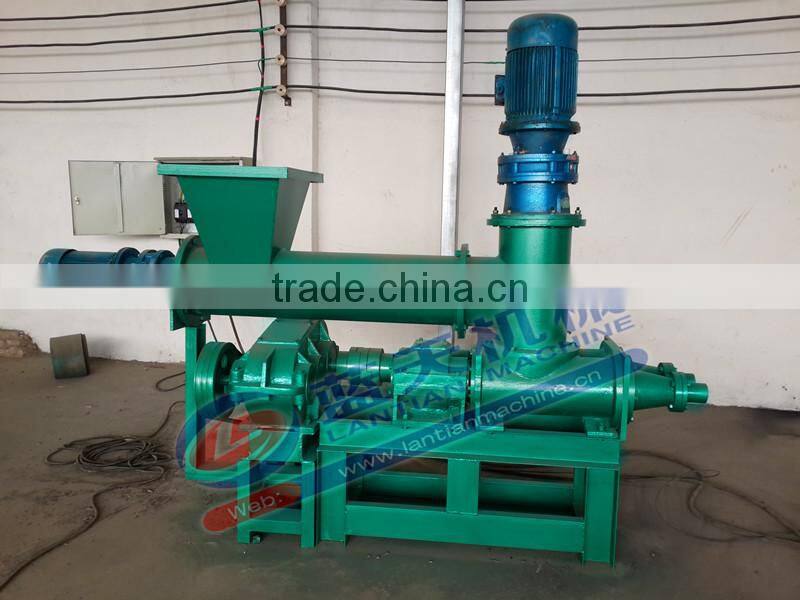

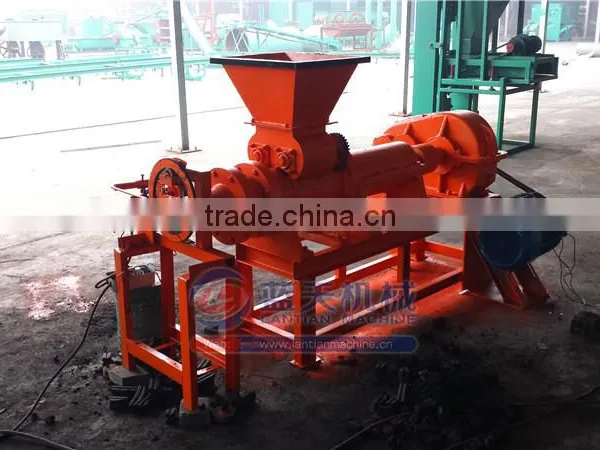

Model 180

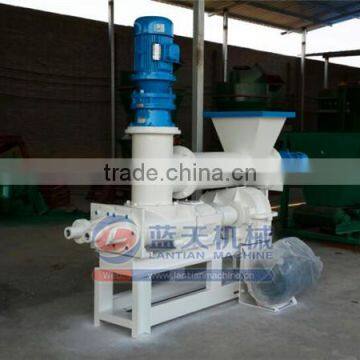

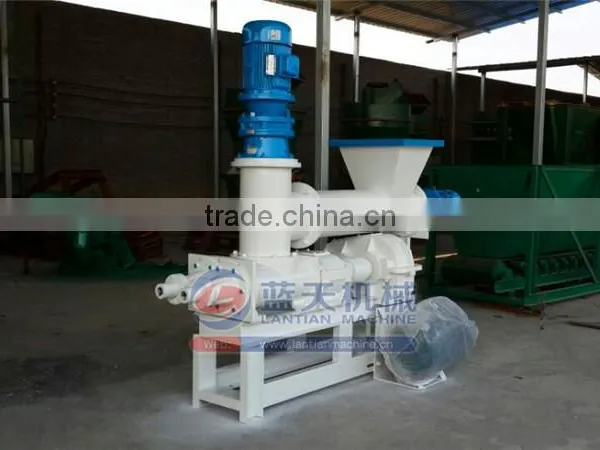

Model-360
Our this charcoal powder briquette extruding machine is the device of using the screw extrusion principle to squeeze the charcoal powder, coal powder materials and other materials (chemical materials, refractory materials, cement materials iron ore, copper or other matallurgical materials) into certain density stick shape briquettes (round, rectangular, hexagonal, plum-flower, triangular etc.) with or without hole in the middle. It is also an ideal equipment for large, medium and small smelting plant, refractory plant, charcoal and coal processing industry, fertilizer plant, chemical plant, boiler, blast furnace, gas producer, shaft kiln, cement plant etc. This charcoal powder briquette extruding machine can make full use of charcoal resources, and in the production process, it can reduce the fuel cost and improve the calorific value of coal, which increase the efficiency greatly.

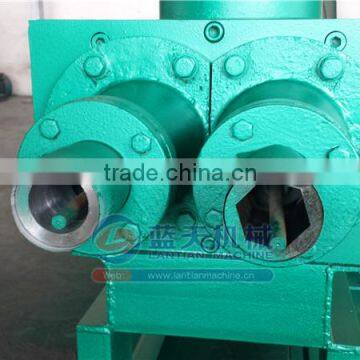

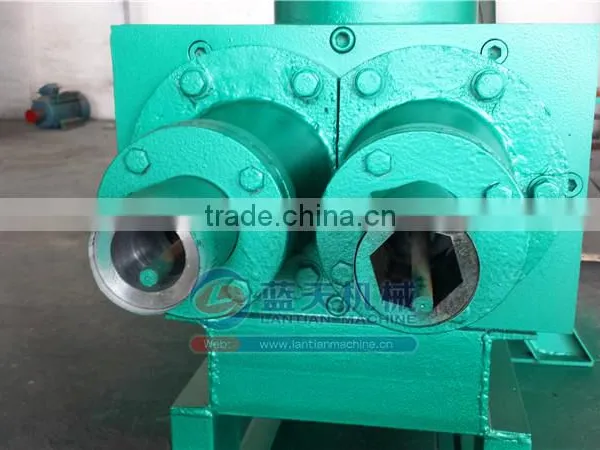

At present, we have models of 140, 180 and 360. Our new type Model 360 charcoal powder briquette extruding machine which is patended by our factory has three electric motors and two discharging heads which can strengthly producing the briquettes with high density. The new type machine also can make different shapes of hollow or solid briquettes. And its output capacity is twice than the old ones.
The outlet briquettes of charcoal powder briquette extruding machine:
The requirements for feeding materials:

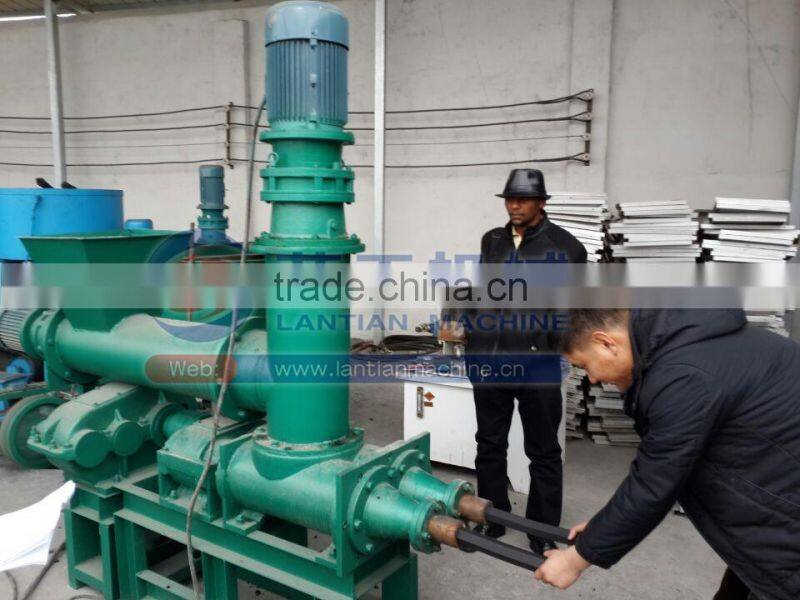

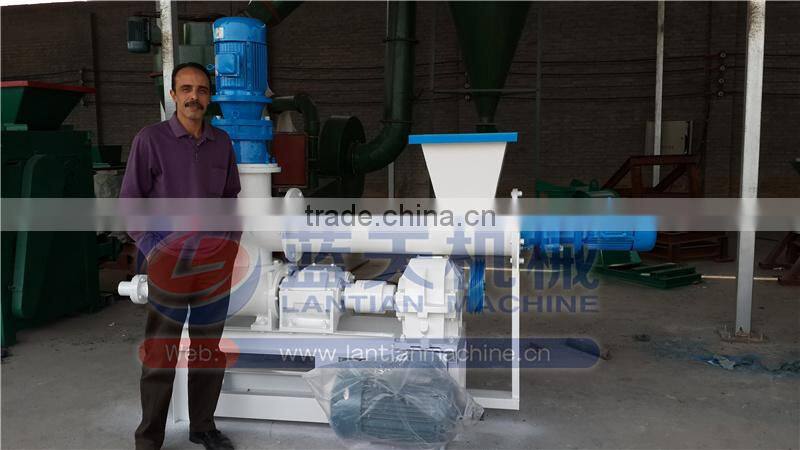

Our customers come our factory to try running this charcoal powder briquette extruding machine:
1. We can provide the service of try runing our charcoal powder briquette extruding machine when each comes our factory.
2. If the customers order our machines, we can provide them our special formula.
3. We can equip the automaic or semi-automatic production line for each client.
4. We can design the machines or production line according to the clients requirements.
Features and advantages of charcoal powder briquette extruding machine:
1. Our this charcoal powder briquetting extruding machine absorbs the advanced technique at home and abroad.
2. Innovative design and reliable quality. The vane wheel is thickening blades which are made of wearing steel materials, and the lifetime will be 4-5 times higher than the normal.
3. Our this machine adopts hard tooth face reducer, although it is small volume, but it has the high bearing and carring capacity.
4. Key parts are processed by imported high quality materials. The forming barrel are made of wearing removable alloy steel, and it can be easily changed and replaced.
5. The machine head and barrel are installed by the way of splicing, which is convenient for changing the vane wheel when we check and fix the machine.
6. High strength and toughness.
7. Temperature control, durability, adaptability.
8. High production capacity.
9. Besides the normal products, we can also design and manufacture special moulds as the customers’ requirements.
10. The customers can purchase complete machine with other kind of moulds, then the machine can be multipurpose, and the customers can save capitals.
| Model | Power | Capacity | Speed | Outlet diameter | Helical blade |
| MBJ-140 | 7.5-11 kw | 1-2 ton/h | 46-60 r/min | 15-50 mm | 4 pcs |
| MBJ-180 | 18.5-22 kw | 2-3 ton/h | 39-60 r/min | 15-60 mm | 4 pcs |
| MBJ-360 | 15+5.5+4 kw | 3-5 ton/h | 45-60 r/min | 15-60 mm | 4 pcs |
If your raw materials is raw charcoal, you have to crusher the raw charcoal into charcoal powder, then through mixer and briquette machine, you will get final charcoal briquettes.
the production line design is as follows:
Gongyi Lantian Mechanical Plant has 30 year's experiences of producing all kinds of briquette machines, and dryers such as honeybomb briquette machine, ball press machine, shisha charcoal briquette machine, coal charcoal extruder machine, biomass briquette machine, rotary dryer, verticle dryer, mesh dryer, box dryer, etc. We have professional engineers, processing workers and special sales workers. We expect and sincerely hope to cooperate with you.
