Brief introduction of Coal briquette ball press machine
This machine is specially designed according to the characteristics of charcoal powder: specially used for charcoal powder industry, mainly used in producing kindle carbon and charcoal briquettes.
The final product that machine give is smokeless, non-toxic, non-toxic,no peculiar smell and environment protective, applicable to the outdoor or indoor barbecue with ventilation, asthe heat very large,
production time is twice more than traditional With advantages of high pressure, high molding rate, high output, easy operation, rare flyash, evenly distributed heatand stable quality.
Main Features of Coal briquette ball press machine
1) Coal briquette ball press machine has larger pressure, also this pressure can be adjusted according to different raw material. For example, some customers want to get better quality barbecue charcoal (small density, strong, hard and not easy broken), so they adjust pressure larger.
(2) Height become higher, this machine press 13cm height is no problem.
(3) It's more convenient to maintain.
(4) Simple operation, it has automatic and manual operation two kinds, you just need press button step by step.
(5) There many types production, for example, 290, 360 ,430, 450, 500, 850, 1000
Such as 290, it is said the size of roller is 290mm.

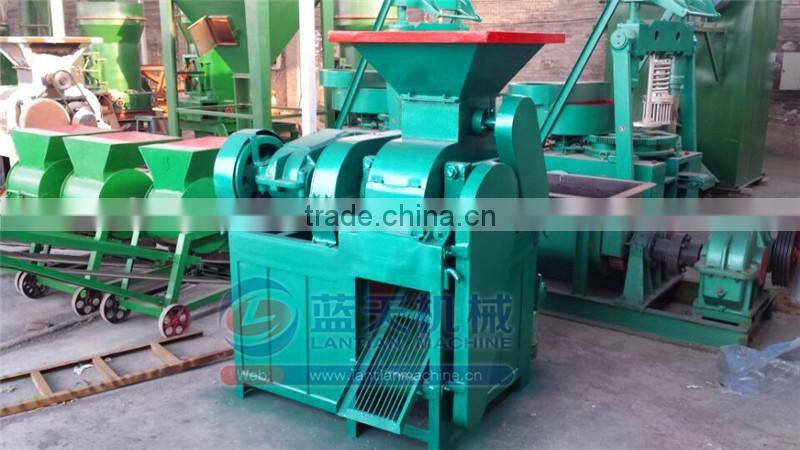

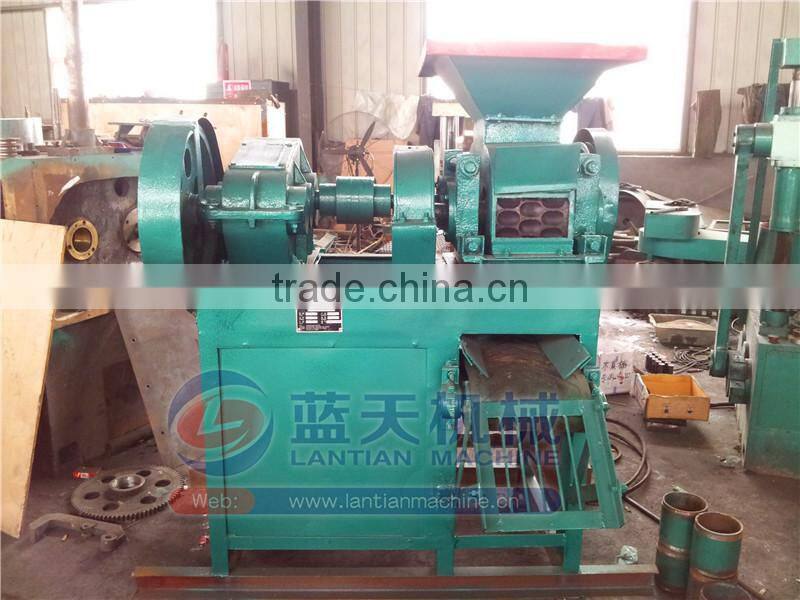

The photo 290 show:

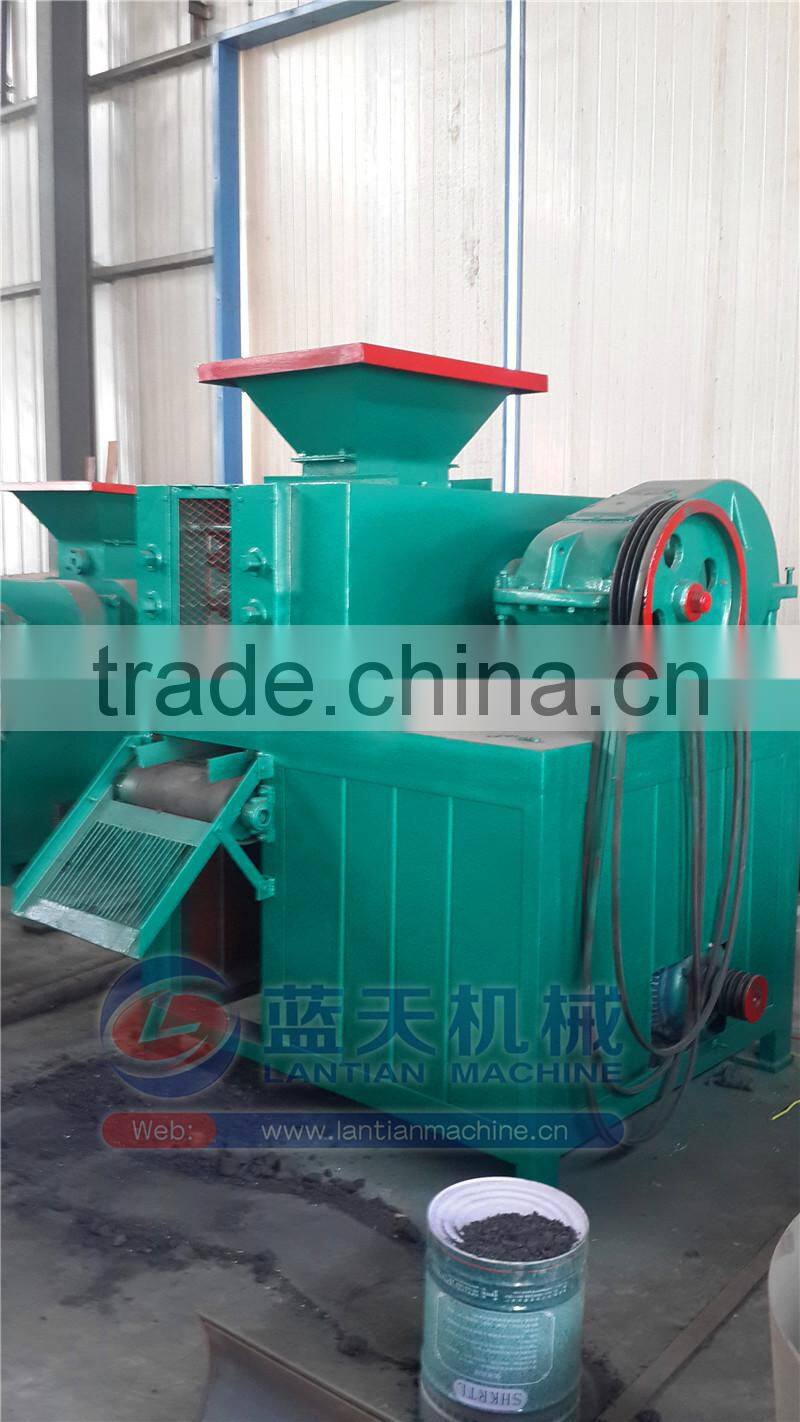

360 type show

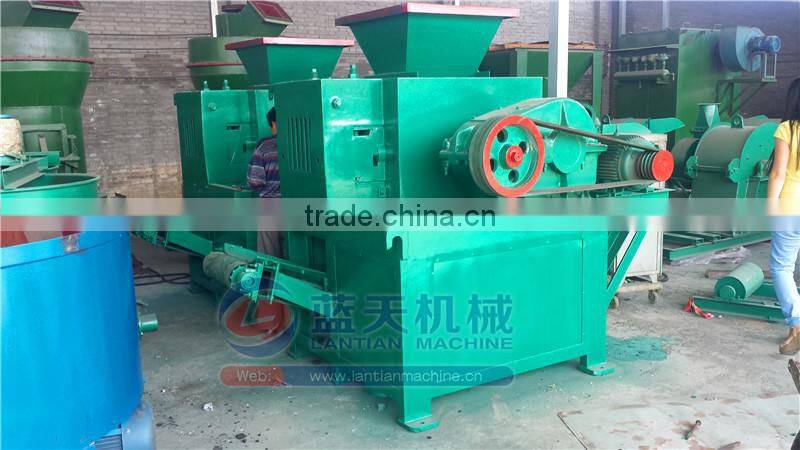

430 type show

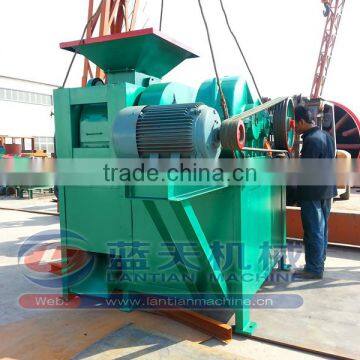

450 type show
500 type show

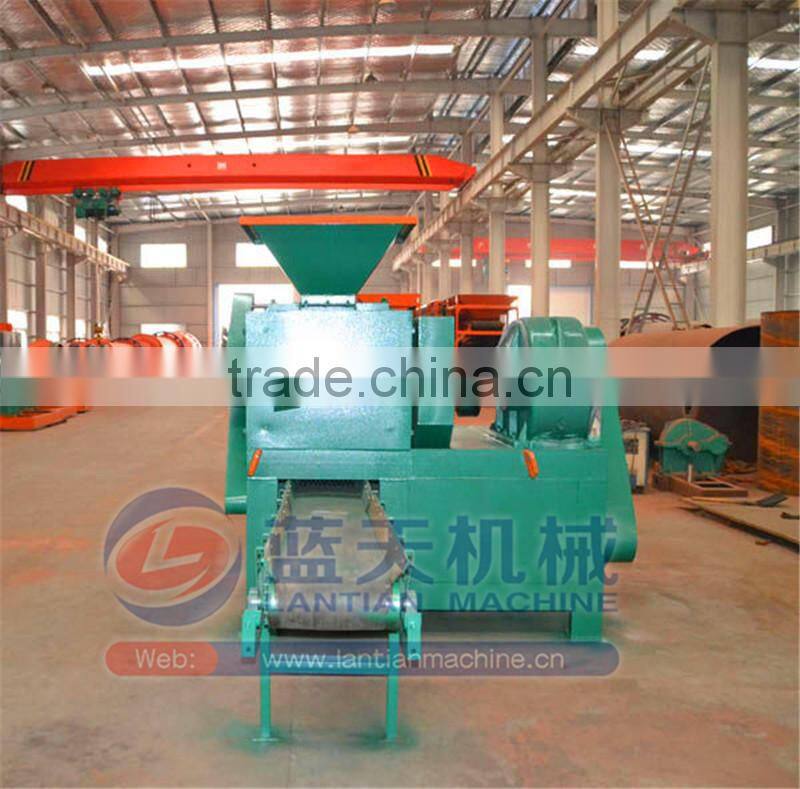

650 type show
1000 type show:
The parameter of coal briquette ball pres machine
| Type | Dimension | Max Output(t/h) | Motor Poedwr | Gross Weight | |
| Coal | Charcoal | ||||
| 290(2) | 1.5*1.25*1.55m | 2-3 | 1-1.5 | 5.5KW | 600 |
| 290(4) | 1.5*1.2*1.6m | 2-3 | 1-1.5 | 5.5KW | 800 |
| 360(2) | 1.6*1.45*1.65m | 4-5 | 1.5-2 | 7.5KW | 1000 |
| 360(4) | 1.6*1.4.*1.82m | 4-5 | 1.5-2 | 7.5KW | 1500 |
| 450 | 2.6*1.7*2.1m | 5-7 | 3-4 | 18.5KW | 3000 |
| 450(hydraulic) | 2.6*2*2.1m | 5-7 | 3-4 | 18..5KW | 3500 |
| 650 | 2.6*3.3*2.3m | 10-15 | 7-8 | 30KW | 5000 |
| 850 | 3.85*2.2*2.3m | 15-20 | 9-10 | 55KW | 8000 |
| 1000 | 3.85*2.6*2.5m | 20-25 | 13-15 | 75KW | 10000 |

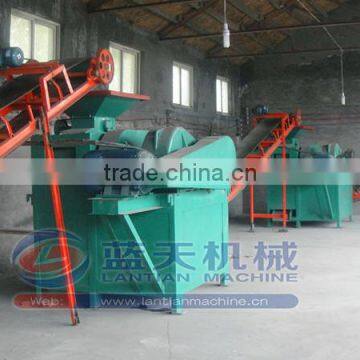

The production line of coal briquette ball press machine:
Crusher--Conveyer--Feeder--Wheel mixer--Ball press machine--Dryer
Crusher: The crusher crushing the big size raw material into the required size less than 3mm.
Conveyer: according to your special needs,through adjusting the speed of conveyor belt to decide the quantity to feed.
Feeder: Feeder mainly used to send the coal powder,shell charcoal powder,sawdust and some similar granular materials from the bunker evenly,timing,continuously to the converyor belt in the production process.
Wheel mixer: Using this binder mixer can mixing the liquid binder(special formula) uniformly, then add this liquid binder into coal powder, to make the finished coal briquettes much stronger, not easy broken, also has smooth surface and long burning time.
Briquette machine: Coking coal briquette making machine will make the crushed raw materials processed into products of any shape you want.
Dryer:We all know in the process of mix natural binder into coking coal powder and the final production may contain about water to some extent so we need to dry up briquettes by dryer.
Gongyi Lantian established of a set of complete service system and experienced service team after 30 years of exploration.Free for customers planning field, flow chart of design and installation, to provide the most professional technical training, and send technicians to guide the field installation and debugging of the equipment.So far, the company has won eight national patents, long-term exchanges and cooperation with overseas countries, won a wide range of international market. our main products involve ball press machine, charcoal briquette machine, coal ball press machine, pellet machine, sawdust Extruder machine, mechanical pressure punching machine, charcoal tablet press machine, honeycomb machine, hookah charcoal tablet press machine and etc.
1. Pre-sales service:
1). sales person, project manager, technology engineer, accountant staff.
2). pofessional responding team: would be very fastly and exactly to send you offer.
3). choose suitable machines and make producing plan according to the raw materials, final shapes and output capacity.
4). offer reasonbal price to meet your budget.
5). invite customers to our factory, demostrate the machines, let you know how the machine work, and compare the quality with other suppliers.
6). producing super and solid quality of machines.
7). arrange shipping and fastly delivery.
8). standard export package or as your requirements.
2. After-sales service:
1). assistance to build factory.
2). repairing and maintain if any problems occur in the warranty.
3). help for installation or clerk training, if necessary, dispatch technicians to your country to install the machines.
4). supply spare and wearing parts of our machines.
5). any feedback of our briquette machine for carbon black can be told us, and we will try our best to support you.
6). technology knowlogy shares with you.
7). help for any other machine that we haven't.
