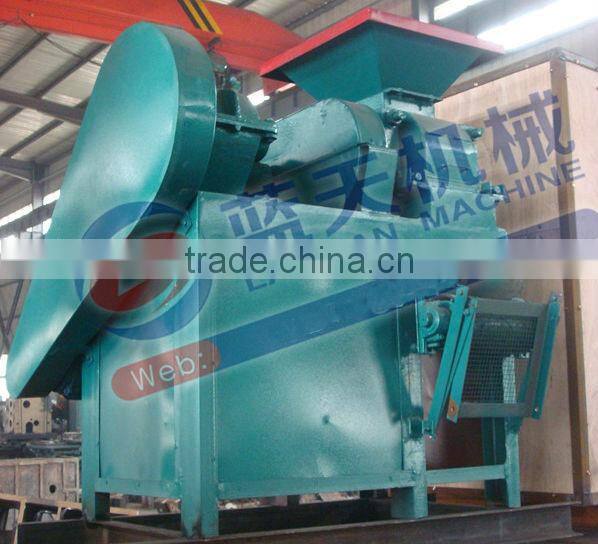

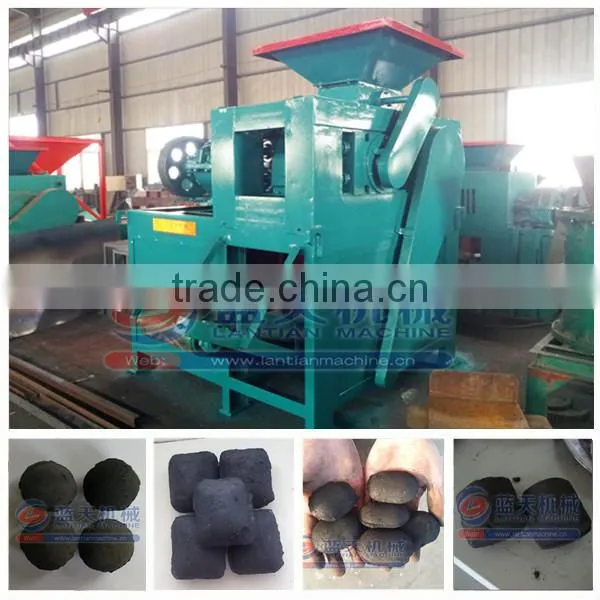

Coal Charcoal Briquetting Press Machine/roller Charcoal Making Machine
US$ 3,000 - 16,666
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
Lantian
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao shanghai Lianyungang etc
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Over 20 Years Experience Ball Press Coal Pellet Briquette Making MachineUS$ 1,500 - 6,600MOQ: 1 Set -
LTQ Series Coal Dust Pellet MachineUS$ 1,500 - 6,600MOQ: 1 Set
-
Coconut Shell Charcoal Briquette Machine/honeycomb Charcoal Briquette Machine in ChinaUS$ 5,333 - 16,333MOQ: 1 Set
-
Lignite Screw Coal Briquettes Charcoal Making Machine Honeycomb Briquettes Extruding MachineUS$ 66 - 6,666MOQ: 1 Set
-
Easy and Simple to Handle and Press Machine Machine Made CharcoalsUS$ 150 - 6,666MOQ: 1 Set
Condition
New
Place of Origin
Henan, China
Brand Name
Lantian
Model Number
YQJ
Voltage
220V/380V
Power(W)
7.5kw,15kw,etc
Weight
According to different types
Dimension(L*W*H)
Types
Certification
CE ISO ISO9001
Warranty
12 Months, 12 months
After-sales Service Provided
Engineers available to service machinery overseas
Product Description
Charcoal briquetting press machine also named coal briquette machine,charcoal making machine .Our factory can provide various kinds charcoal briquette machine .
1.Raw materials: charcoal powder ,coal powder, fertilizer,salt,iron powder,coal dust,coal mud, coking coal,iron scale,slime peat,iron sludge,metalic powder,fireproof material,magnesium powder,metalic powder,biomass powder, and so on.

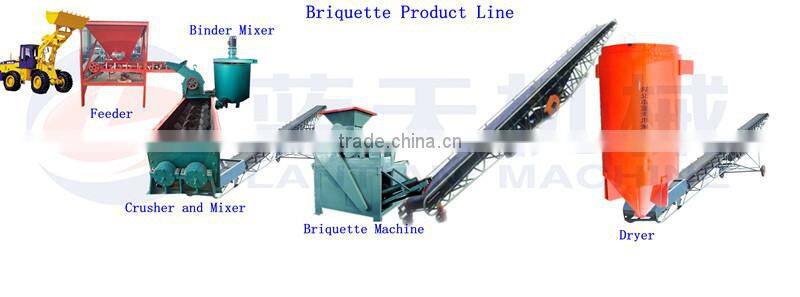

2.The process of charcoal briquetting press machine:Crushing--Mixing-Feeding-Briquetting-Drying.
3.Technical Parameters and Types:
4.Working Principle of charcoal briquetting press machine:
| Type | Roller Diameter(mm) |
Motor Power(kw) | Capacity |
| YQJ-290 |
290
|
5.5 | 1-2t/h |
| YQJ-360 | 360 | 7.5 | 3-4t/h |
| YQJ-450 | 450 | 15 | 5-6t/h |
| YQJ-550 | 550 | 18 | 6-10t/h |
| YQJ-650 | 650 | 25 | 10-15t/h |
| YQJ-850 | 850 | 30-55 | 15-25t/h |
| YQJ-1000 | 1000 | 75-130 | 25-35t/h |
a.Through reducer simultaneously transmitted the power to two pressure rollers and made them rotated in opposite directions.
b.In two pressure rollers rotation,materials naturally enter into the ball molds on pressure,roller and materials pressure vary from small to large with the rotation of the pressure roller.
c.When the material is rotated to two rollers line contact points,materials pressure has reached a peak.
d.Under enermous pressure,the powder materials are suppressed into finished ball.
5.The photo of final shape
Packaging & Shipping
Our Services
(1)Pre-sales service
a.Sales team will introduce a suitable project
b.Technical team analyse and design molds which meet you special requirements
c.If you want to visit our factory,we wii pick you up at ai airport and arrange hotel-booking
d.when you want to travel other places,we will arrange.
(2)After-sales service
a.Help you set up production line.
b.Mount and maintain machines.
c.Teach your workers to master operation.
d.Offer technical assistance by phone or online tools.
