Introduction:
ball press machine is specially used for compressing the pulverized coal, iron powder, coking coal, aluminum powder, scrap iron and tin oxide, carbon powder, slag, gypsum, tailings, sludge, kaolin, activated carbon, coke, waste residue etc.It is widely used in refractories, power plant, metallurgy, chemical, energy, transportation, heating, etc.
The final products are environmental protection,smokeless,non-toxic,no peculiar smell, easy to transport,applicable to the outdoor or indoor barbecue with ventilation.
Features:
---the roller is made by hard materials, with good wear resistance and long life time;
---the service life of wearing parts is up to 4000 hours;
---the machines electricity cost reduces by 60%;
---the machine is easy to operate and maintain;
---the molding material is energy-saving, easy to transport and higher utilization of waste.
---the final product is smokeless, non-toxic, none peculiar and environmental protection.

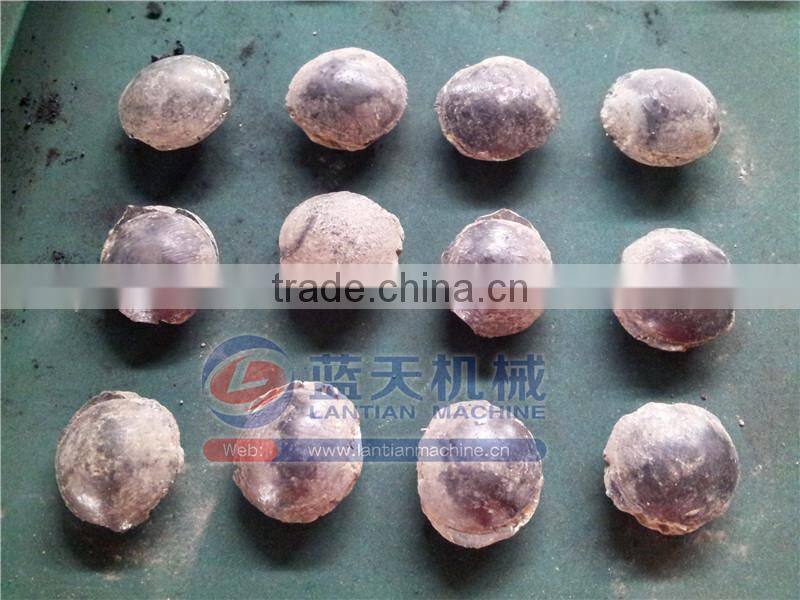

---the end products shapes include oval, round, square, ball egg-shaped and pillow-shaped.
The requirements of raw materials
1.The materials powder size must be less than 5 cm. If not, you should crush it firstly.
2.Any raw materials with metal is not allowed, otherwise it will damage the surface of rollers.
Working principle:
ball press machine will pass the power on to the two pressure roller through the reducer.The two sides and roll rotation, in both the rotating roll,Natural materials to enter the ball roll mode, with the roll rotation, material pressure on a small become larger, When the material to the two rollers rotating line contact point, the pressure of materials has reached the peak. Tremendous pressure in the role of line, the materials become a finished product from the powder ball.
Technical Parameters:
Model | Diameter of roller sheet (mm) | Output (t/h) | Motor Power (kw) | Weight (kg) |
TZJ-290 | 290 | 1-3 | 5.5 | 1300 |
TZJ-360 | 360 | 4-6 | 7.5 | 1850 |
TZJ-430 | 430 | 6-8 | 11 | 2300 |
TZJ-450 | 450 | 8 | 15 | 3000 |
TZJ-500 | 500 | 8-10 | 18 | 4500 |
TZJ-650 | 650 | 12-15 | 25-30 | 5000 |
TZJ-800 | 800 | 15-18 | 30 | 5300 |
TZJ-1000 | 1000 | 20-25 | 55 | 6900 |

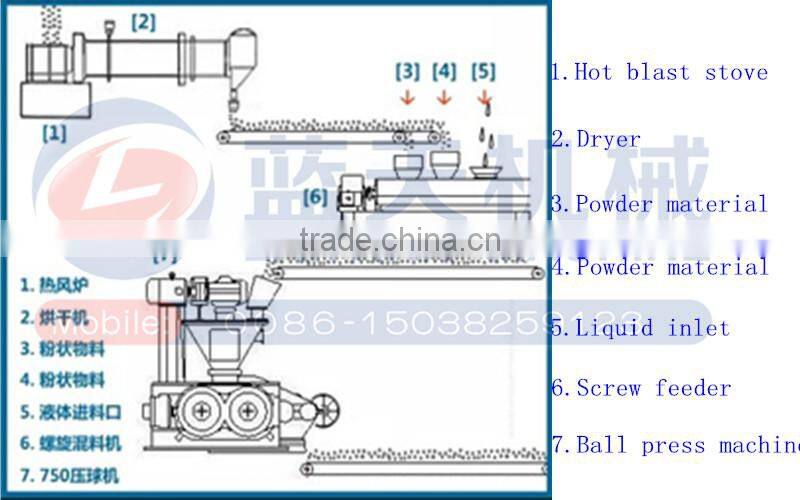

Introduction of every equipment
1.crusher:
Introduction
The Vertical Complex Crusher is a new type of rough grinding and fine crushing product combined the domestic and foreign crushing technologies
together, developed and designed by our team of highly qualified engineers on main technical parameter. It can be widely used in the medium
cement plants to crush crude cement material and chamotte. It provides an ideal fine crushing equipment of technical reconstruction or setting
up new cement production lines for cement plant. Also it is suitable for crushing iron ore, sandstone, gypsum, slag, gangue, lump coal and other hard ore
Special features:
a.high and cubic crushing ration
b.low energy consumption
c.steady running
d.smart structure and easy operation and maintain ,. Etc
nveyor
Belt conveyor
The machine is used to conveyor powder material, grain material and small lumpy material that are easy to fish out, it can be also used to the pack material such as coal , detritus , gravel , cement, fertilizer, etc , whose conveying pile density is less then 1.67t/m3. the temperature of the conveyed material is less than 60’C. the length of the machine and the shape can be made according to the demand of the client. When you transmit the material . you can use the electric roller of driving –equipment with driving –stand.
3.Feeder
This machine is used to feed the grinded charcoal dust (charcoal powder) with water and binder etc. It can flip on the side to
drop the charcoal automatically after mixing without taken by hand.
4.mixer
This machine is used to mix the grinded charcoal dust (charcoal powder) with water and binder etc. It can flip on the side
to drop the charcoal automatically after mixing without taken by hand.
roller mixer

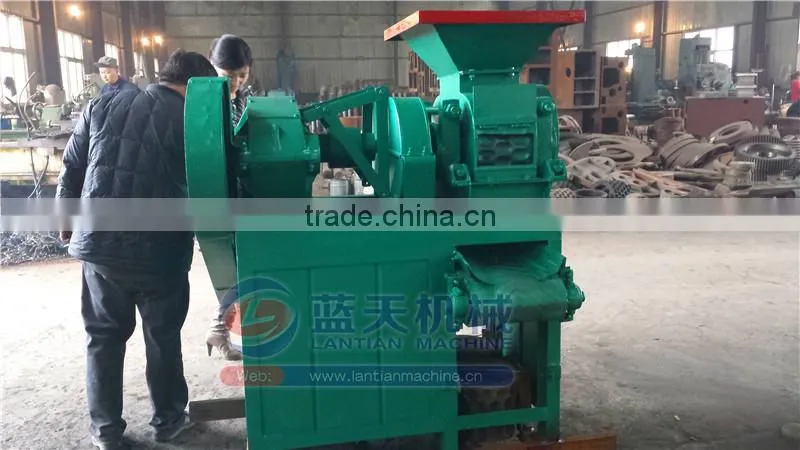

5. Charcoal coal Briquette Press
This series of coal briquette press machines can be used to make coal briquettes of different shapes.
The raw material comes from small size waste charcoal broken in storage or while transportation, or comes from charcoal chunk after biomass burned. With this machine, the waste charcoal chunk can be made into charcoal briquettes or charcoal stick and recycled for barbecue, room heating etc.

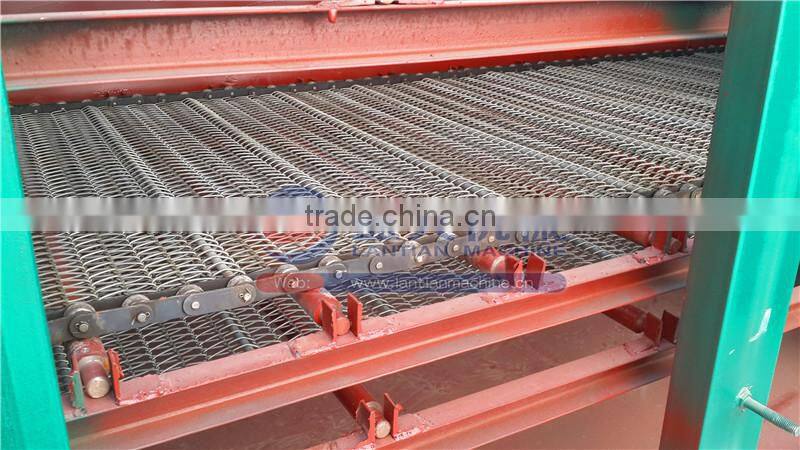

Dryer
This series of coal briquette press machines can be used to makecoal briquette drying, can be preserved more time.

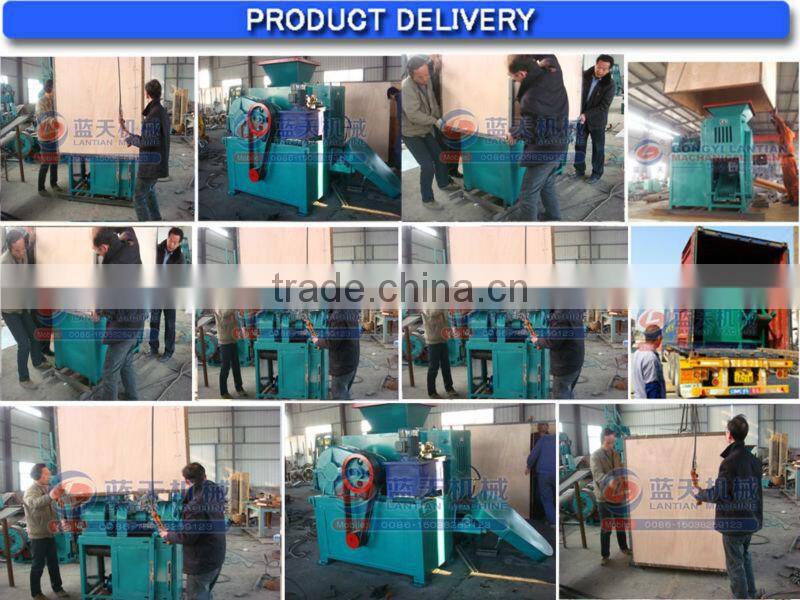

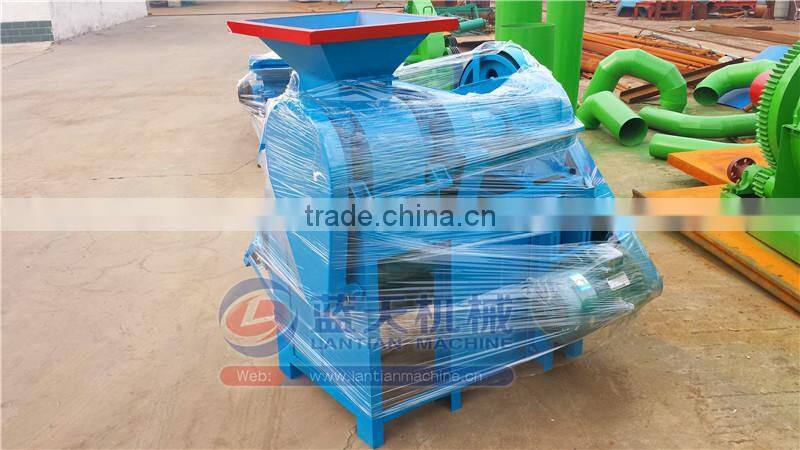

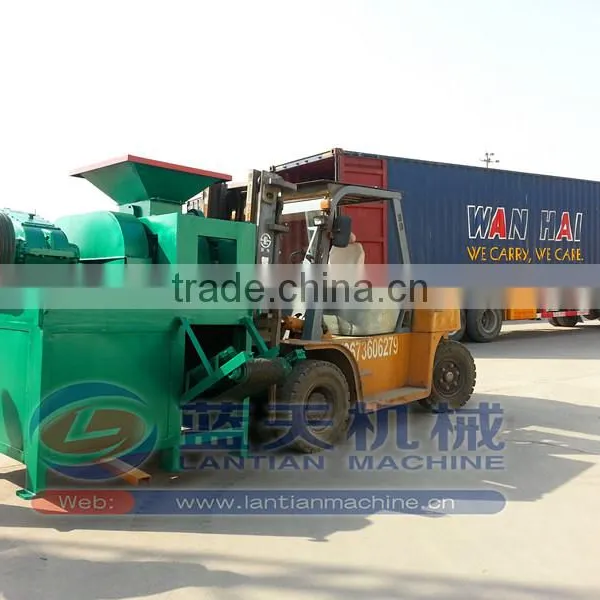

1.Single machine will be packed in standard wooden box with steel frame.
2.Bulk mchine be loaded in the container with or without package
