High Efficiency Coal Ball Press Machine View Larger Image Good Quality High Efficiency Coal BallUS$ 1,500 - 13,000MOQ: 1 Set

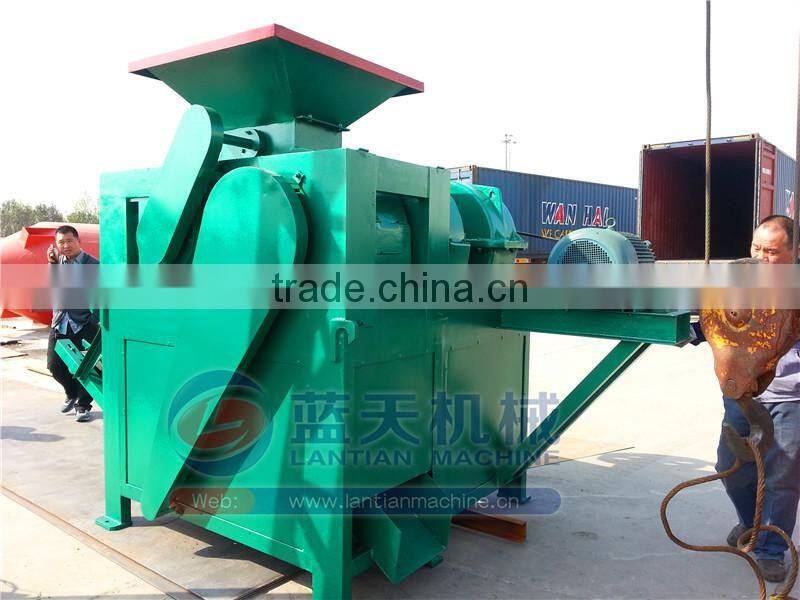

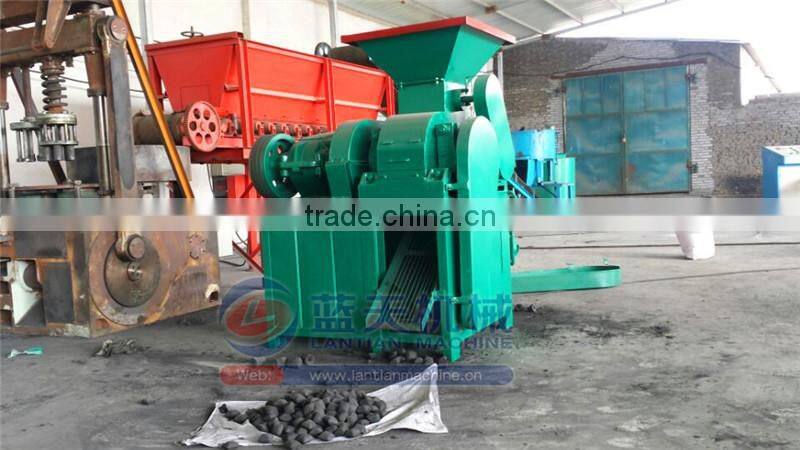

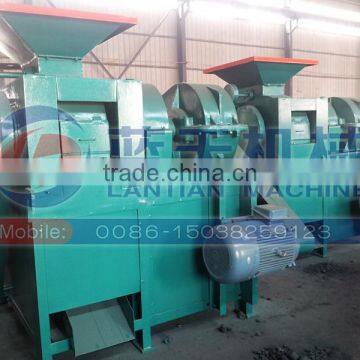

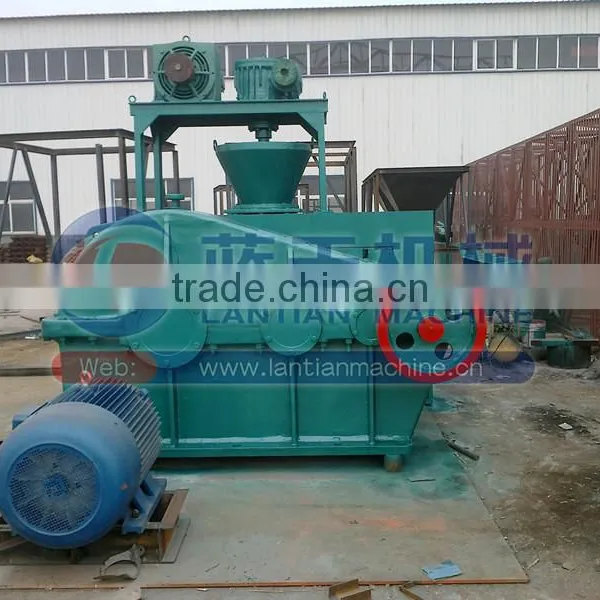

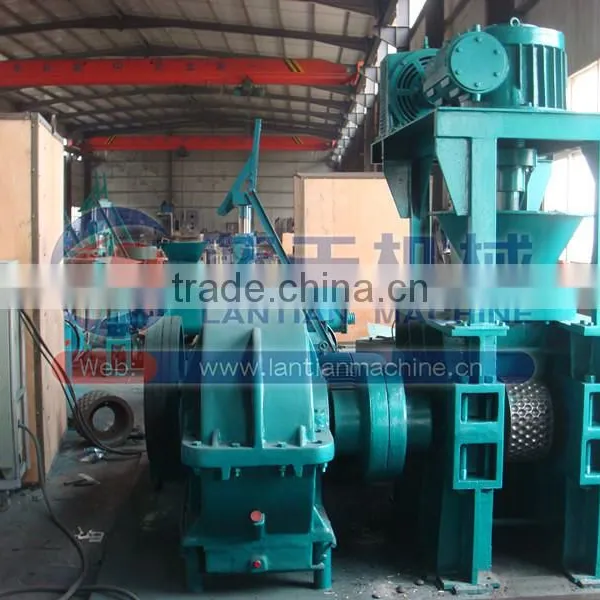

This briquette machine is a featured production in our factory. It is used to make briquettes from powder, dust or granule, such as charcoal powder carbon black, coal dust, iron powder. After the pressing of our machine, powder and granule are formed into various shapes of balls. This processing changes the using way of coal brings many good efforts. First, small pellet/briquette/ball provide gap for burning, so the efficiency can be improved, and the energy can be saved. Second, during briquetting, we fill blinder in the raw material, as a result, SO2 and solid dust are reduced, our environment can be protected. Third, briquetting changes the defect of a single coal performance, diversifies the using way of coal. Fourth, briquetting can effectively alleviate.
This series of ball press machine excellent in briquetting machinery industry. The ball press machine can be used to press various types of powder such as coal powder, iron powder, coking coal, slag, oxidation iron sheet, carbon dust, gypsum, tailings, sludge, active carbon and burnt powder, etc. Ball press machine applies in industries such as refractory material, electric powder plant, metallurgy, chemical industry, energy, transportation and heating, etc.
Working principle of metal scrap ball press machine
With the two pressure-roller of the machine rotating, the materials were forced into the ball mould between two rollers. The space between the two rollers become narrow and narrow, and the pressure become larger and larger when the two rollers rolling. When the materials came to the line of the contact point of the two rollers', the pressure to the materials reached the peak. After the tremendous pressure of the roller, the materials become the finished product.
The process flows
Technical parameters:
| Model | Capacity | Roller diam | Motor power | Pressure | Roller speed | Briquette size |
| LT-290 | 1.5-2 t/h | 290 mm | 5.5 kw | 40 | 15-17 r/min | 10-80 mm |
| LT-360 | 2.5-4 t/h | 360 mm | 7.5 kw | 60 | 15-17 r/min | 10-80 mm |
| LT-450 | 4-5 t/h | 450 mm | 15 kw | 60 | 15-17 r/min | 10-80 mm |
| LT-500 | 6-8 t/h | 500 mm | 22 kw | 60 | 15 r/min | 10-80 mm |
| LT-650 | 10-15 t/h | 650 mm | 30 kw | 80 | 15 r/min | 10-80 mm |
| LT-850 | 25-35t/h | 850 mm | 37-45 kw | 100 | 13 r/min | 10-80 mm |
| LT-1000 | 35-40 | 1000 mm | 75-90 kw | 120 | 12 r/min | 10-80 mm |
Feature
1. Forged rollers made of 65 Mn steel, preform better toughness longer service life. Up to 27% cost will save in lifetime using.

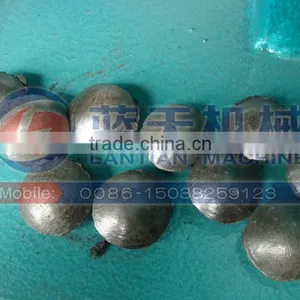

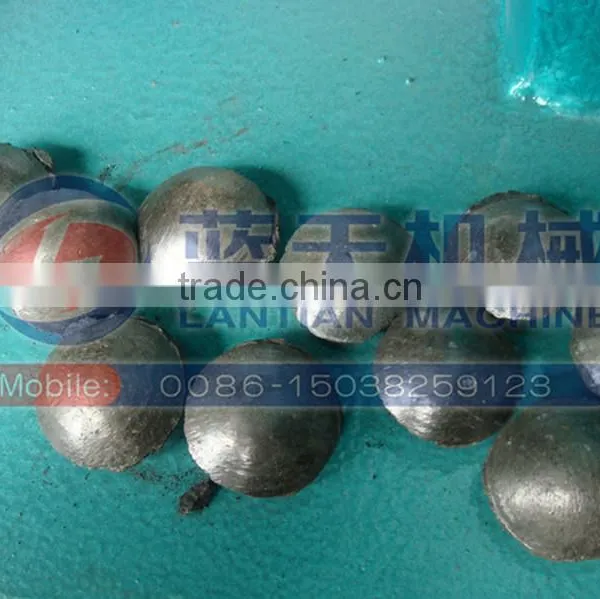

2. The finished product won't be broken when being dropped from a 2-meter's height and resistance to both high/low temperature.
3. The shape and size of the finished product can be customized, and is suitable for many different raw materials, such as, etc.
4. A Series of models for your special needs. For different materials and different production information, our technicians will design the special suitable ball press machine.
♥ Before Service:
1. According to our customers special requirements, provide the most suitable project design, process design and the purchase program.
2. Guide customers to choose the best and economical plant, recover investment within short time, and site inspection.
♥ On sale service:
1. Accompany you to check the working conditions of our machines.
2. Inspect the quality of all our machines.
3. Manufacturer the equipments as the contact appears at first time after receive your deposit. Arrange the delivery timely.
♥ After sale service:
1. Send engineers to your site, help you to install and debugging devides, build plant, and training operators, at the same time pass the technology on clay brick production to customers.
2. Guarantee of the equipments quality, maintenance, etc. Solve all the troubles for you timely during your production when receive your call oure-mails.
