Dalian Puyang International Trade Co., Ltd.: Dalian, Liaoning, China; Main products: Diesel Generator, Infrared Heater, Patio Heater, Small Engine

Home > Products > Diesel generator set > Weichai 90kW Electric Textile Machinery Generator China Made

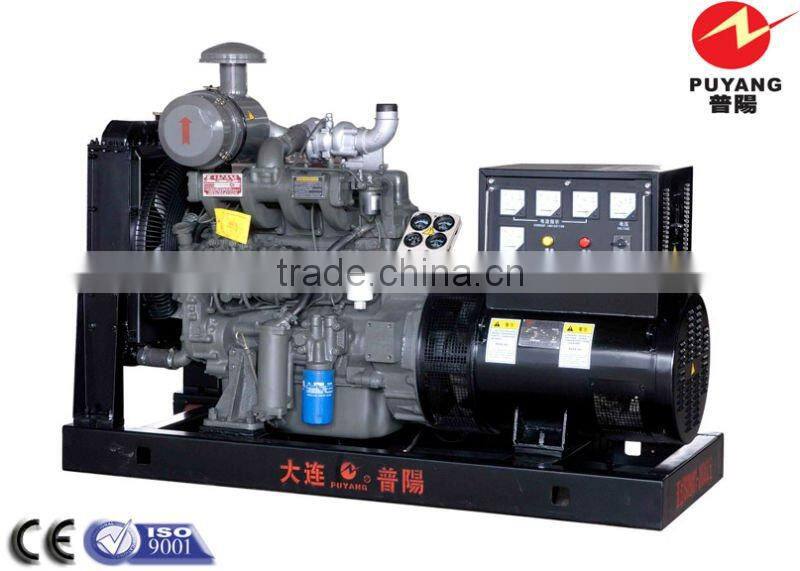

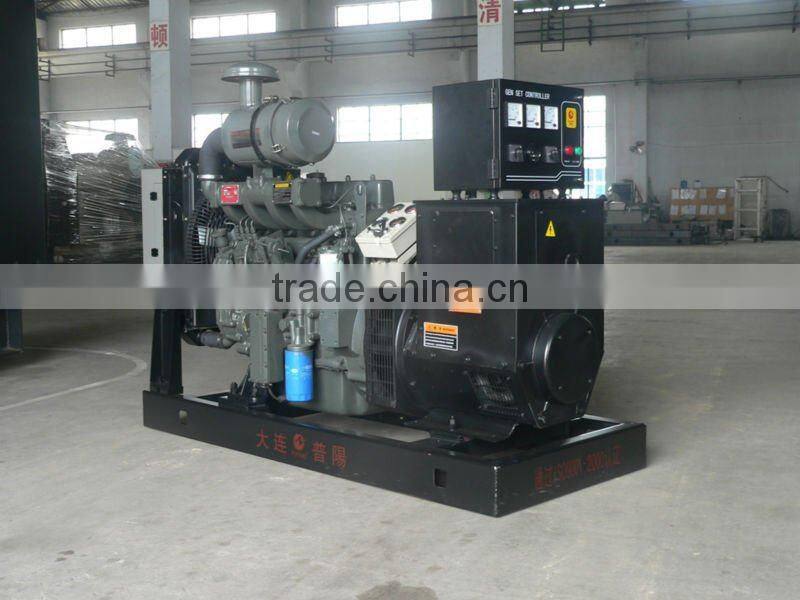

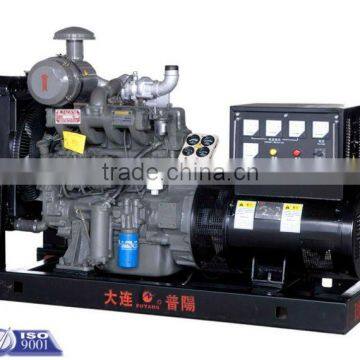

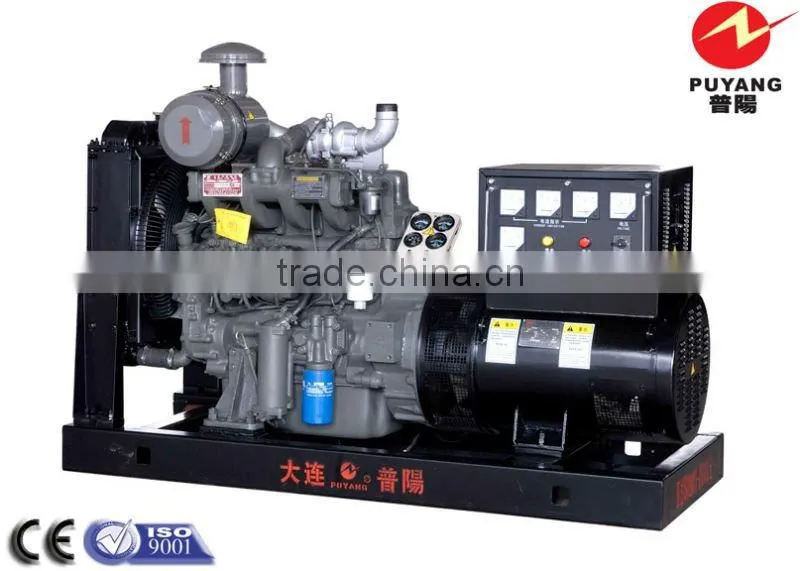

Weichai 90kW Electric Textile Machinery Generator China Made

Name: Weichai 90kW Electric Textile Machinery Generator China Made
Brand: Puyang
Availability: InStock

FOB Price

US$ 21,960 - 79,517 / Set

1 Set(Min. Order)

Port Dalian
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Liaoning, China	Brand Name	Puyang
Model Number	PF90GF	Output Type	AC Three Phase
Speed	1500rmp	Frequency	50Hz
Rated Power	90kW/113kVA	Rated Voltage	400V
Rated Current	N/A

Product Description

Specifications

Textile Machinery Generator
1.Weichai Engine
2.90kW Output Power
3.OEM Manufacturer
4.Low Fuel Consumption

Weichai 90kW Electric Textile Machinery Generator China Made

*Powered by heavy duty industrial diesel engine, Weichai

*Radiator 40°C max, fans are driven by belt, with safety guard

*12//24V DC start motor and storage battery

*Brushless, self-excited, IP22/23, insulation H alternator

*Absorber to reduce vibration

*Dry type air filter, fuel filter, oil filter

*Main line circuit breaker

*Control system: Key start control panel as standard, digital auto start or ATS system is optional

*8 hours operation base fuel tank

*High efficient muffler to reduce noise

*Ripple flex exhaust pipe, exhaust siphon and flange etc.

*Genset type: open type or soundproof/silent type, or trailer type

*Maintenance and operation manual, quality certificate, etc.

*Rigorous testing must be done before delivery, including 50% load, 75%load, 100%load, 110%load

Textile Machinery Generator Features
Genset model	PF90GF
Prime power(KW/KVA)	90/113
Frequency & voltage	400V, 50HZ
Nos. of phase	4
Genset type	Open
Reference Dimension	23608001520
1290
Diesel Engine
Engine brand	Weichai
Rated output	90kW
Rated Speed	1500rpm
Engine Type	In-line, direct injection, four stroke
No. of cylinder	6
Bore*stroke(mm)	105*125
Aspiration method	Naturally
Governor	Mechanical/Electrical
Starting method	Electric starting
Cooling method	Forced water cooled
Displacement	6.49L
Fuel consumption	23.3L/h
Rotation direction of crankshaft	Counter clockwise(face to flywheel end)
Alternator
Alternator brand	KAIJIELI
Type	Brushless & self-excited
No. of phase	3
Volatage	400V
Frequency	50Hz
Power Factor	0.8
Insulation Grade	H
Protection Grade	IP22/23
Altitude	≤1000m

Our Services

1)Before-sale Service:we provide detailed product technical parameters for equipment choosing and system

designing.
2)Service quality assurance:our sale staffs are all experience and professional,who can provide the most

proper system design and optimized equipment for the customers.

3)After sale maintenance service:We create files for end user and provide them follow-up service,regular

return visit and permanent maintenance.

4)Spare parts supply:We provide all kinds of spare parts and technical support.

5)Main overhaul or maintenance service:We provide perennial major overhaul and maintenance service.
