AVR Diesel Newage Stamford Generator 200kVA Manual

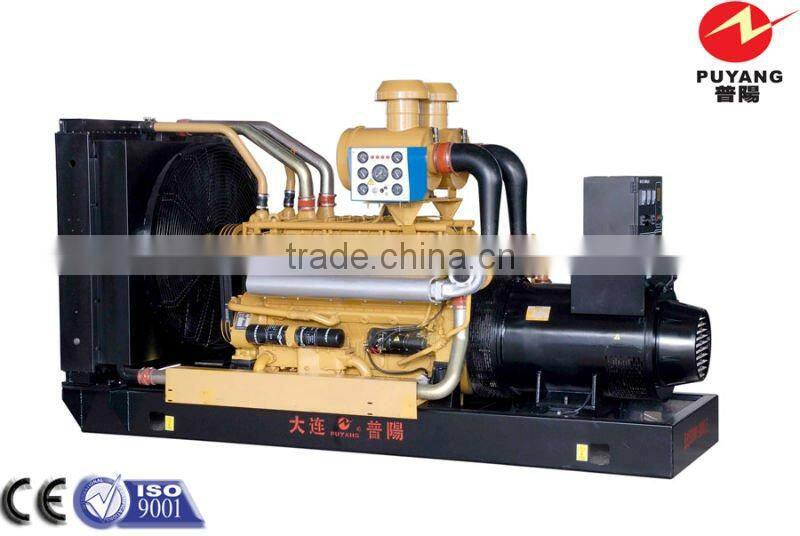

AVR Diesel Newage Stamford Generator 200kVA Manual photo-1
US$ 21,960 - 79,517 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Liaoning, China
Brand Name:
Puyang
Model Number:
PF176GFE
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Liaoning, China
Brand Name Puyang
Model Number PF176GFE
Output Type AC Three Phase
Speed 1500rmp
Frequency 50Hz
Rated Power 160kW/200kVA
Rated Voltage 400V
Rated Current N/A

Specifications

Stamford Generator 200kVA
1.Weichai Engine
2.160kW Output Power
3.OEM Manufacturer
4.Low Fuel Consumption

AVR Diesel Newage Stamford Generator 200kVA Manual

*Powered by heavy duty industrial diesel engine, Shangchai

*Radiator 40°C max, fans are driven by belt, with safety guard

*12//24V DC start motor and storage battery

*Brushless, self-excited, IP22/23, insulation H alternator

*Absorber to reduce vibration

*Dry type air filter, fuel filter, oil filter

*Main line circuit breaker

*Control system: Key start control panel as standard, digital auto start or ATS system is optional

*8 hours operation base fuel tank

*High efficient muffler to reduce noise

*Ripple flex exhaust pipe, exhaust siphon and flange etc.

*Genset type: open type or soundproof/silent type, or trailer type

*Maintenance and operation manual, quality certificate, etc.

*Rigorous testing must be done before delivery, including 50% load, 75%load, 100%load, 110%load

Stamford Generator 200kVA Features



Genset model

PF176GFE

Prime power(KW/KVA)

160/200

Frequency & voltage

400V, 50HZ

Nos. of  phase

4

Genset type

Open

Reference Dimension

2800*1060*1760

Weight(kg)

2200

Diesel Engine

Engine brand

Shangchai

Rated output

160kW

Rated Speed

1500rpm

Engine Type

In-line, direct injection, four stroke

No. of cylinder

6

Bore*stroke(mm)

135*1

Aspiration method

Naturally50

Governor

Mechanical/Electrical

Starting method

Electric starting

Cooling method

Forced water cooled

Displacement

12.8L

Fuel consumption

43.8L/h

Rotation direction of crankshaft

Counter clockwise(face to flywheel end)

Alternator

Alternator brand

Stamford

Type

Brushless & self-excited

No. of phase

3

Volatage

400V

Frequency

50Hz

Power Factor

0.8

Insulation Grade

H

Protection Grade

IP22/23

Altitude

≤1000m

AVR Diesel Newage Stamford Generator 200kVA Manual
