Specifications
Hydropower Turbine Generating Set1.Laidong Engine
2.10kW/13kVA Output Power
3.AC Three Phase
4.OEM Manufacturer

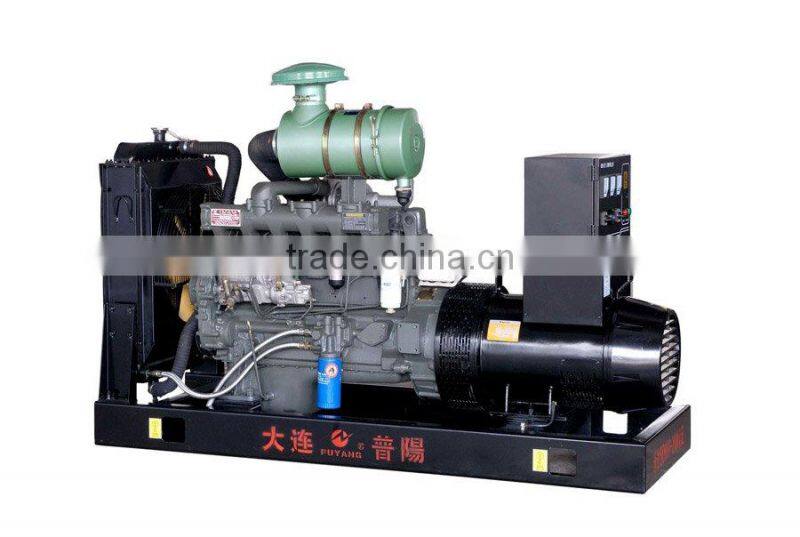

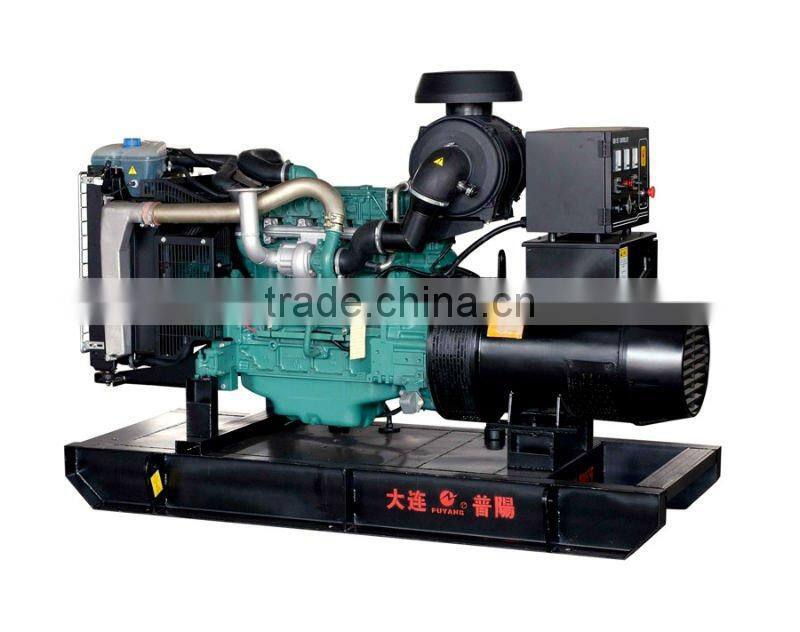

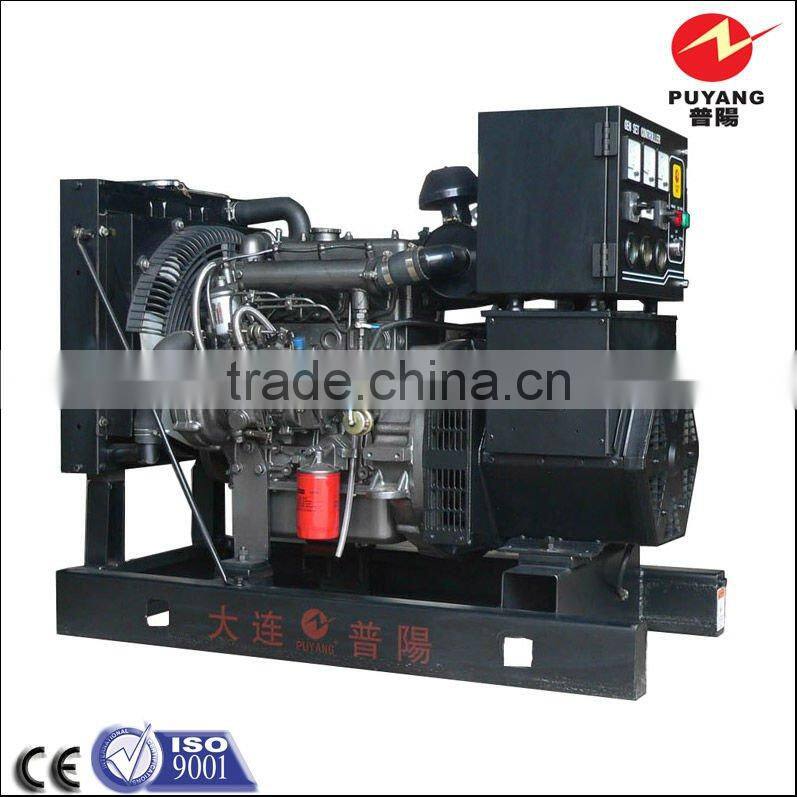

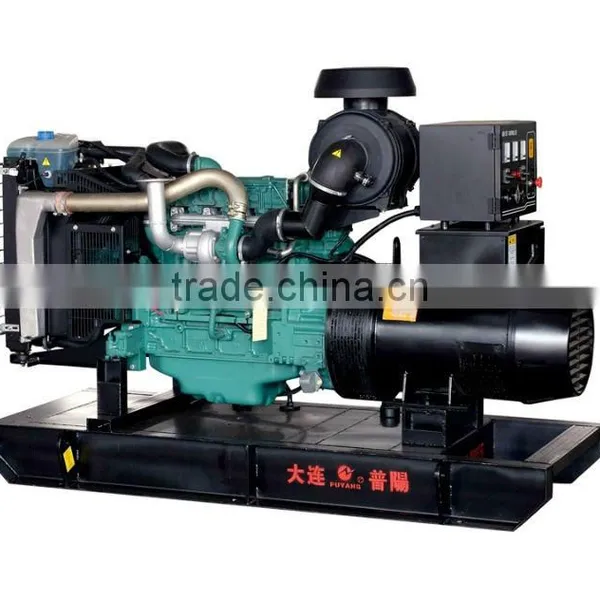

Key Start Laidong 3 Phase AC Small Electrical Generators For Sale
Diesel engine:
*Heavy load durable, four-stroke, water cooled Weichai engine
*Excellent transient response
*Four valves per cylinder, stainless steel crankshaft, bolt, cast iron steel, replaceable humid cylinder liner
*24V DC safe isolate valve
Alternator:
*Brushless, four-pole revolving field, single bearing and drop proof screen protected.
*Class H insulation
*IP21-IP23 protection standard
*Dynamically balanced rotor
*Completed gen-set parameter display, perfect protection and control function
*Excellent anti-jamming function, adapt to extreme condition
*Independent over-load protection
*Unique sensors protection, adapt to all sensors
Small Electrical Generators Features |
|
Genset model | PF10GF |
Prime power(KW/KVA) | 10/13 |
Frequency & voltage | 400V, 50HZ |
Nos. of Phase | 4 |
Genset type | Open type |
Reference Dimension | 1150*560*930 |
Weight(kg) | 360 |
Diesel Engine | |
Engine brand | Laidong |
Rated output | 10kW |
Rated Speed | 1500rpm |
Engine Type | In-line, direct injection, four stroke |
No. of cylinder | 03 |
Bore*stroke(mm) | 85*90 |
Aspiration method | Naturally |
Governor | Mechanical/Electrical |
Starting method | Electric starting |
Cooling method | Forced water cooled |
Displacement | 1.532L |
Fuel consumption | 3.4L/h |
Rotation direction of crankshaft | Counter clockwise(face to flywheel end) |
Alternator | |
Alternator brand | KAIJIELI |
Type | Brushless & self-excited |
No. of phase | 4 |
Volatage | 400V |
Frequency | 50Hz |
Power Factor | 0.8 |
Insulation Grade | H |
Protection Grade | IP22/23 |
Altitude | ≤1000m |
1)Before-sale Service:we provide detailed product technical parameters for equipment choosing and system
designing.
2)Service quality assurance:our sale staffs are all experience and professional,who can provide the most
proper system design and optimized equipment for the customers.
3)After sale maintenance service:We create files for end user and provide them follow-up service,regular
return visit and permanent maintenance.
4)Spare parts supply:We provide all kinds of spare parts and technical support.
5)Main overhaul or maintenance service:We provide perennial major overhaul and maintenance service.
After the development of more than ten years,Dalian Puyang Generating Set Co.,Ltd. has become the leading generatign set manufacturer in northern China. We have the largest scale of production and full product specifications and models.With self-contained producing conditions,advanced testing equipments and abundant technology ,we can provide diesel generating set ranging from 8kW to 1800kW.It deserves to be mentioned that we have the only one full-fuction testing cneter in northern China.Right now,our diesel generators are serving in most fields.
