Specifications
Electricity Generator1.Cummins Engine
2.275kW Output Power
3.OEM Manufacture
4.Global Service

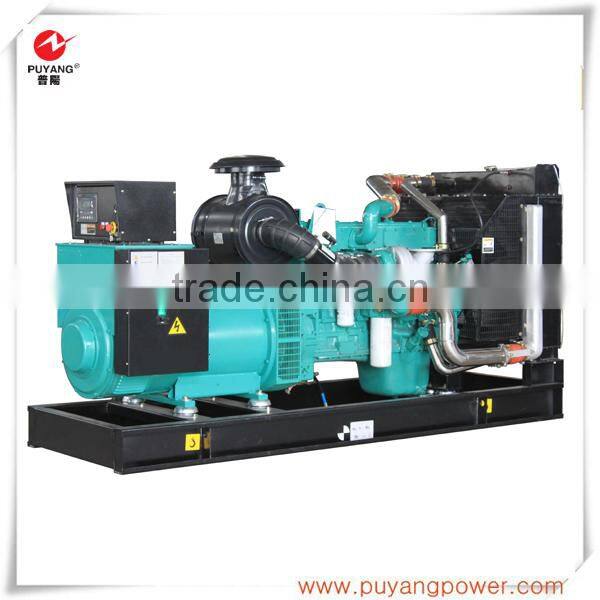

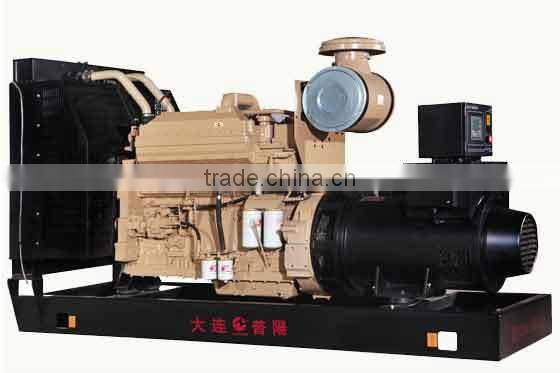

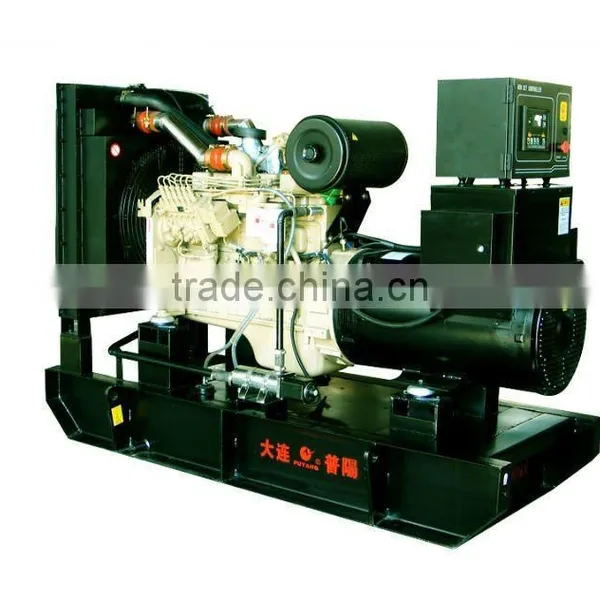

AC 3 Phase Control Panel Free Electricity Generator With Automatique Start
Why Cummins powered diesel generator set?
1. Cummins engines which are made in China with the same standard of the US Cummins keep the quality almost the same as the US Cummins.
2. More than 90% of the Engines components and spares are made in China which keeps the cost much lower.
3. Cummins engines are universally just as Cummins factories all around the world; all the spares are universal which make the maintenance and reparation very simple.
4. Cummins has worldwide after-sales network, to whom you can get technical support and spares right near your house.
5. Engineers are more familiar with Cummins engines because they are most wildly use in every filed and everywhere around the world.
General Features of Diesel Generator Set:
*Powered by heavy duty industrial diesel Cummins engine
*Radiator 40°C max, fans are driven by belt, with safety guard
*12//24V DC start motor and storage battery
*Brushless, self-excited, IP22/23, insulation H alternator
*Absorber to reduce vibration
*Dry type air filter, fuel filter, oil filter
*Main line circuit breaker
*Control system: Key start control panel as standard, digital auto start or ATS system is optional
*8 hours operation base fuel tank
*High efficient muffler to reduce noise
*Ripple flex exhaust pipe, exhaust siphon and flange etc.
*Genset type: open type or soundproof/silent type, or trailer type
*Maintenance and operation manual, quality certificate, etc.
*Rigorous testing must be done before delivery, including 50% load, 75%load, 100%load, 110%
and all protection function(over speed stop, high water temperature, low oil pressure, battery
charging fail, emergency stop)
*Certificate: ISO9001:2000/CE
Accessories:
1) Standard accessories: Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wires, operation manual and document
2) Optional accessories: Engine coolant and oil heater, alternator space heater, cooling for heat exchanger, control panel, communication interface, battery charger by main supply, daily fuel tank, ATS and paralleling system, soundproof canopy and moving trailer
| Genset Data | |
| Genset Model | PFC344 |
| Genset Type | Open |
| Prime Power | 344kVA/275kW |
| Standby Power | 375kVA/300kW |
| Consumption | 65.8L |
| Rated Voltage | 400V |
| Rated Current | N/A |
| Frequency | 50Hz |
| Dimension(mm) | 2900*1000*1700 |
| Weight(kg) | 2850 |
| Diesel Engine Data | |
| Brand | Cummins |
| Governor Type | Electrical |
| Rotating Speed | 1500rmp |
| Engine Cooling Method | Water Cooling |
| Displacement | 14L |
| Air Intake Method | Turbocharged |
| Combustion Type | Direct Injection |
| Cylinder Nos. | 6 |
| Alternator Data | |
| Brand | Leroy Somer |
| Power Factor | 0.8(lagging) |
| Connecting Type | 3 Phase 4 Wires |
| Excitation | Brushless Self-Excitation |
| Voltage Control | AVR |
| Insulation Grade | H |
| Protection Class | IP21-23 |
| Altitude | ≤1000m |
Energy Save Diesel Power Supply 275kW Cummins Generator Manufacture
Package:plastic wrapping or plywood case
Delivery time: 20~30 days
Payment: By telegraphic transfer: 30% deposit on signing of sales contract; and balance 70% before dispatch.
Warranty: We provide guarantee for 500 running hours or 6 months for range from the min to 50kW (including 50kW) genset; 1000 running hours or 12 months for range from 50kW to the max genset (whichever comes first). Warranty doesn' t cover spares such as filters, V-belt, etc. Malfunctions caused by misoperation and careless maintenance will not be considered by us
1)Before-sale Service:we provide detailed product technical parameters for equipment choosing and system
designing.
2)Service quality assurance:our sale staffs are all experience and professional,who can provide the most
proper system design and optimized equipment for the customers.
3)After sale maintenance service:We create files for end user and provide them follow-up service,regular
return visit and permanent maintenance.
4)Spare parts supply:We provide all kinds of spare parts and technical support.
5)Main overhaul or maintenance service:We provide perennial major overhaul and maintenance service.
After the development of more than ten years,Dalian Puyang Generating Set Co.,Ltd. has become the leading generatign set manufacturer in northern China. We have the largest scale of production and full product specifications and models.With self-contained producing conditions,advanced testing equipments and abundant technology ,we can provide diesel generating set ranging from 8kW to 1800kW.It deserves to be mentioned that we have the only one full-fuction testing cneter in northern China.
