Specifications
30kVA Gensets1.China Made Diesel Generator
2.Shangchai Engine
3.24kW/30kVA Output Power
4.Low Fuel Consumption

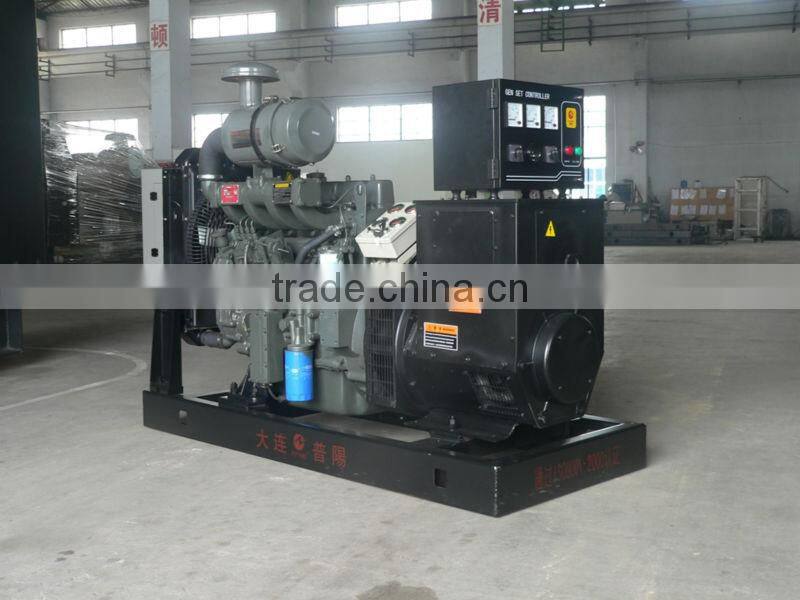

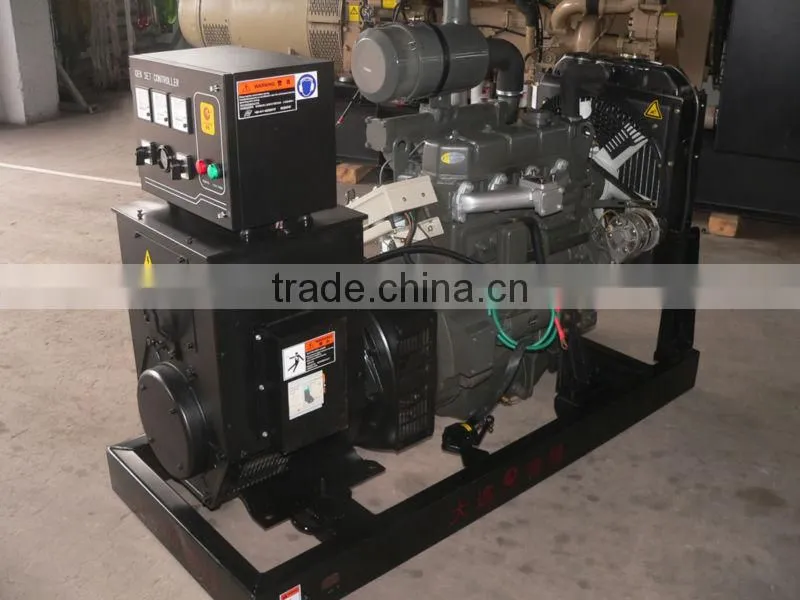

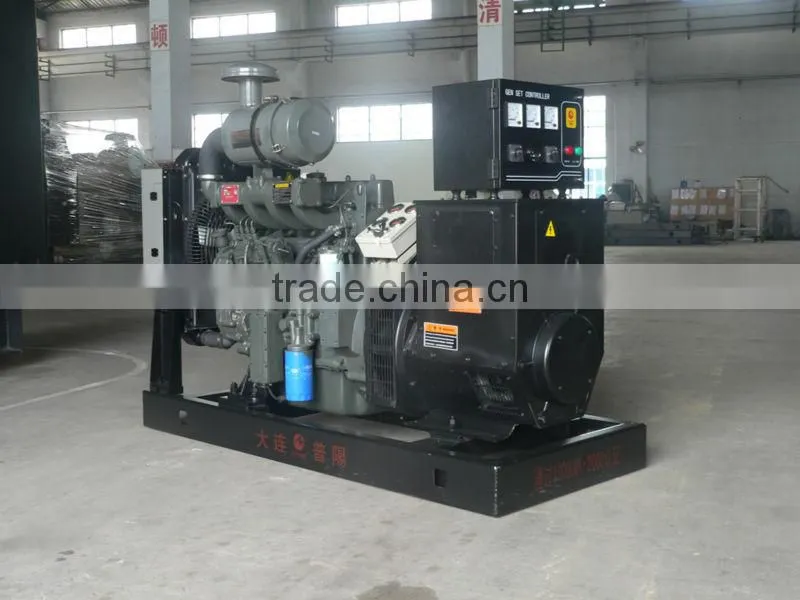

Water Cooled AC 3 Phase Power 30kVA Gensets China Made
Standard accessories:
1.Diesel engine with all accessories, 3 filter, electric system
2.Alternator
3.Steel structure
4.Fan and water tank cooling system
5.Flange connector
6.12 / 24V starting motor and charge engine
7.Air cleaner, fuel cleaner, oil cleaner
8.On-board control panel
9.MCCB air conservation switch
10.12 / 24V starting accumulator and battery line
11.Set shock absorber
12.High-efficient silence
Optional Accessories:
1. Trailer type
2. Soundproof / water proof
3. ATS (automatic transfer switch)
4. Parallel system
5. Remote system
PMC System:
1. Standard 23 pitch windings avoid excessive neutral current
2. Permanent magnet generator system provides constant excitation under all condition
3. Optional accessories available for easy paralleling with mains or other generators
4. AVR auto voltage regulation, auto exciter, auto adjustment
Our Advantages:
1. Solve your technical problems in 24 hours and provide international warranty service for engines
2. Design the appearance form according to customers’ request
3. Polyester varnish for appearance protecting for shining and raining
4. Two hours testing before out factory
5. ISO9001 and CE certification
6. OEM service offered by our company
| 30kVA Gensets Specification | ||
| 1 | Model Number | PF24GF |
| 2 | Output Type | AC Three Phase |
| 3 | Speed | 1500rpm |
| 4 | Frequency | 50hz |
| 5 | Rated Power | 24kw/30kva |
| 6 | Rated Voltage | 400/230v |
| 7 | Rated Current | 43A |
| 8 | Certification | CE,ISO |
| 9 | Basic infornation | 230 / 400V AC, 0.8pF three-phase and four wires |
| 10 | Color | Customized |
| 11 | Protection Grade | IP21/23 |
| 12 | Insulation Grade | H/H |
| 13 | Regulator | AVR |
| 14 | Frequency at stable state: | <0.5% |
| 15 | Frequency deviation at instantaneous state: | ≤+10% |
| 16 | Frequency return time: | ≤3s |
| 17 | Voltage deviation at stable state: | ≤±1% |
| 18 | Voltage deviation at instantaneous state: | ≤+20% |
| 19 | Voltage return time: | ≤4s |
| 20 | Voltage modulation: | ≤0.3% |
| 21 | Short circuit protection: | MCCB air switch |
| 22 | Filter system: | oil, fuel and air filter |
| 23 | Delivery time: | 7--30 days |
| 24 | Package: | Plastic wrapping(FREE)/plywood case |
Engine and Alternator specification | ||
1 | Engine | Weichai |
2 | Engine type: | in line four-stoke, wet cylinde liner, direct injection |
3 | Cooling system | water cooling |
4 | Starting Method | Electric starting |
5 | Alternator | Marathon,stamford,engga |
6 | Alternator type | brushless, self-excitation,50Hz, 1500rpm |
7 | Excitation | self-excitation |
Package:plastic wrapping or plywood case
Delivery Time: 20~30 days
Payment: By telegraphic transfer: 30% deposit on signing of sales contract; and balance 70% before dispatch.
Warranty: We provide guarantee for 500 running hours or 6 months for range from the min to 50kW (including 50kW) genset; 1000 running hours or 12 months for range from 50kW to the max genset (whichever comes first). Warranty doesn' t cover spares such as filters, V-belt, etc. Malfunctions caused by misoperation and careless maintenance will not be considered by us.
As an OEM generating set manufacturer, we have nearly 20 yaers development and the leading factory in northern China,which owns the largest scale of production and full production specifications and models.What is more,we have the only noe full-function testing center in our region.At the same time,our company focuses on the TB and cooperation in the whole staff so that we often organize many activities.
