Specifications
Japan Mitsubishi Generator1.Diesel Generator Set
2.Much Higher Output Power
3.50Hz AC Three Phase
4.1 year warranty

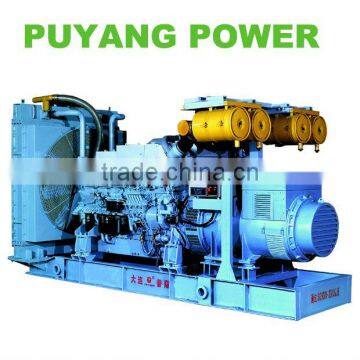

China Made Three Phase AC Mitsubishi Marine Diesel Generator Set 500kW
Engine
A. More than 10-hours operation base tank
B. Deep-sea key start controller (Auto start is optional)
C. Open frame and soundproof canopy
D. Heavy duty industrial diesel engine
a. Compact size
b. Suitable for long time operation
c. Low maintenance cost
Alternator
A. Optional permanent magnet generator system provides constant excitation under all conditions.
B. Easy paralleling with mains or other generators, standard 2/3 pitch winding. To avoids excessive neutral currents.
C. Dynamically balanced rotors with sealed for life ball bearings and single construction
D. Class "H" insulation system.
E. Wide range of flanges and adapters and disc couplings.
F. Conforms to all leading industrial and marine standards.
Control system
A. Auto alarm system
The unit has the acoustic-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current.
B. Operation display.
a. Unit voltage, tri-phase load current and frequency display
b. Water temperature, oil pressure display
c. Fuel level, fuel temperature display
d. Audible and visual alarm lamps and buzzers
Genset Type | Open-frame |
Genset Prime Power | 500kW |
Related Voltage | 400/230V Adjustable |
Related Current(A) | 902A |
Frequency/rpm | 50Hz 1500rpm |
Starting Method | DC 24V Electric Starting |
Dimension(mm) | 3450*1410*2150 |
Weight(kgs) | 4890 |
Packing | Plastic wrapping, playwood case |
| |
Engine Technical Details: | |
Engine Brand | Mitsubishi |
Engine Type | S6R-PTA |
Engine Prime Power | 500kW/625kVA |
Fuel Consumption(L/H) | 125 |
Cylinder No. | 6 cylinders,in-line,direct injection |
Bore*Stroke ( mm ) | 170*180, 4 strokes |
Cooling Way | water-cooled |
Displacement(L) | 24.5 |
Lubricating Capacity(L) | 100 |
Compression Rate | 16.5:1 |
Speed governor | Mechanical |
| |
Alternator Technical Details: | |
Alternator Type | Marathon GM-20-4 |
Connecting Type | 3 phase-4wire; 100% copper wire |
Power Factor | 0.8 ( lagging ) |
Operating Mode | Continous |
Exciter Type | Brushless, self-exciting, synchronous |
Insulation Class | H class |
Ingress Protection | IP23 |
Voltage Control | AVR ( automatic voltage regular ) |
Package:plastic wrapping or plywood case
Delivery time: 20~30 days
Payment: By telegraphic transfer: 30% deposit on signing of sales contract; and balance 70% before dispatch.
Warranty: We provide guarantee for 500 running hours or 6 months for range from the min to 50kW (including 50kW) genset; 1000 running hours or 12 months for range from 50kW to the max genset (whichever comes first). Warranty doesn' t cover spares such as filters, V-belt, etc. Malfunctions caused by misoperation and careless maintenance will not be considered by us
After the development of more than ten years,Dalian Puyang Generating Set Co.,Ltd. has become the leading generatign set manufacturer in northern China. We have the largest scale of production and full product specifications and models.With self-contained producing conditions,advanced testing equipments and abundant technology ,we can provide diesel generating set ranging from 8kW to 1800kW.It deserves to be mentioned that we have the only one full-fuction testing cneter in northern China.
