Specifications
Diesel Generator Set For Land Use1.Trailer Generator
2.Cummins Engine
3.100kW Output
4.Construction/Highway/Railway wide

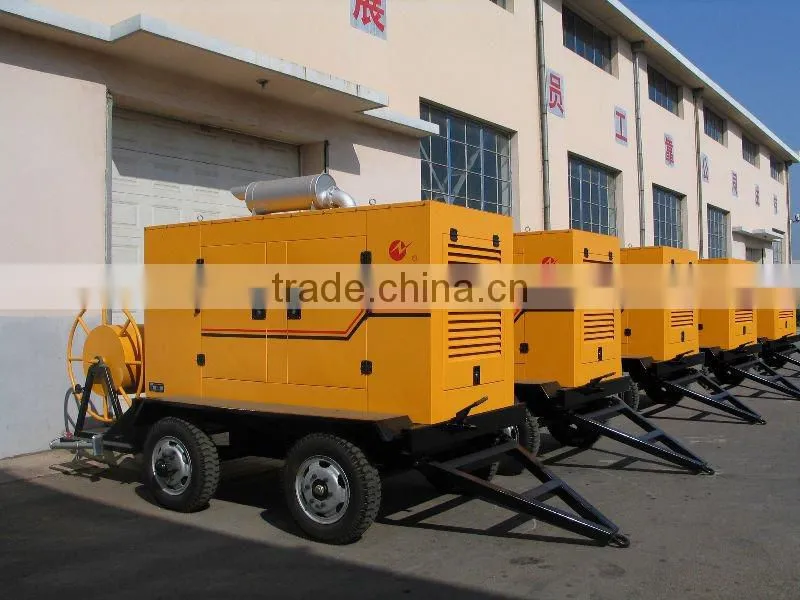

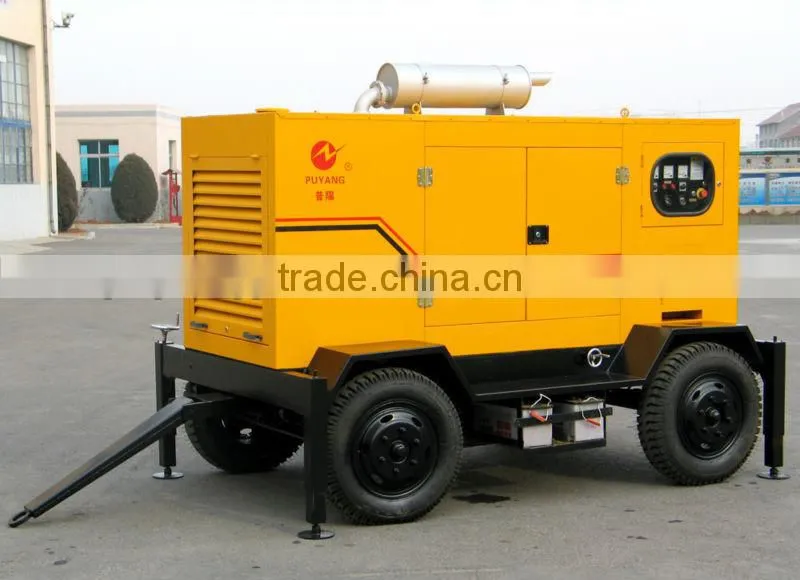

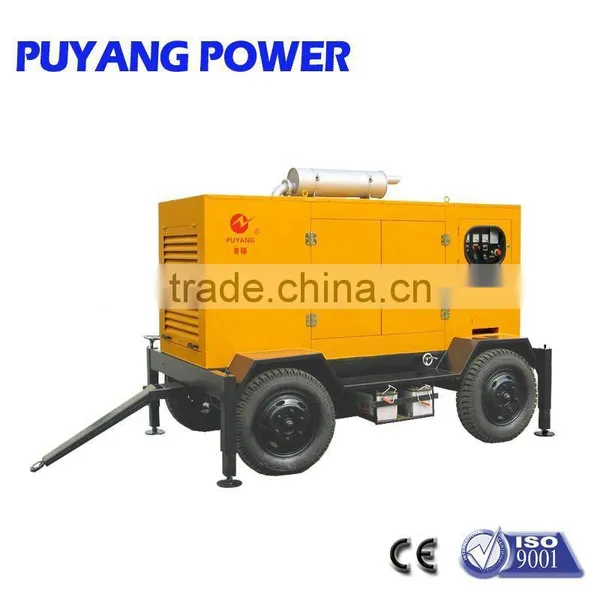

ISO9001 Portable Diesel Generator Set For Land Use
| Main features of the Diesel Generator Set For Land Use |
| Brand Name | Puyang |
| Genset Model | PFC125 |
| Prime Power(kW/kVA) | 100/125 |
| Standby Power(kW/kVA) | 110/138 |
| Output Type | AC Three Phase |
| Genset Type | Silent |
| Noise Level | ≤95dB at 7m |
| Color | Customized |
| Certification | CE /ISO |
| Warranty | 12 Months |
| Engine Specifications | |
| Engine Brand | Cummins |
| Diesel Engine Model | 6BTAA5.9-G2 |
| Cycle | 4-Stroke |
| Air Intake Method | Turbocharged |
| Nos. of Cylinder | 6 |
| Bore*Stroke(mm) | 102*120 |
| Displacement | 5.9L |
| Piston Speed | 6m/s |
| Compression Ratio | 16.5:1 |
Exhaust Temperature | 495 ℃ |
| Lub. Oil Capacity | 16L |
| Coollant Capacity | 29L |
| Cooling System | Water Cooling |
| Rotating Speed | 1500rpm |
| Starting Method | Electric |
| Alternator Specifications | |
| Alternator | Marathon/Engga/Stamford |
| Connecting Type | 3 Phase 4 Wires |
| Rated Voltage | 400/230V Adjustable |
| Frequency | 50Hz |
| Power Factor | 0.8 |
| Excitation Type | Brushless Self-excitation |
| Voltage Control | AVR |
| Insulation Grade | H |
| Protection Grade | IP21/23 |
Accessories of Portable Generator Waterproof :
1.Standard accessories of trailer diesel generator set: Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wires, operation manual and document
2.Optional accessories of trailer diesel generator set: Engine coolant and oil heater, alternator space heater, cooling for heat exchanger, control system with RS232/485, communication interface, battery charger by main supply, daily fuel tank, ATS and paralleling system.
Package:plastic wrapping or plywood case
Delivery Time: 20~30 days
Payment: By telegraphic transfer: 30% deposit on signing of sales contract; and balance 70% before dispatch.
Warranty: We provide guarantee for 500 running hours or 6 months for range from the min to 50kW (including 50kW) genset; 1000 running hours or 12 months for range from 50kW to the max genset (whichever comes first). Warranty doesn' t cover spares such as filters, V-belt, etc. Malfunctions caused by misoperation and careless maintenance will not be considered by us.
As an OEM generating set manufacturer, we have nearly 20 yaers development and the leading factory in northern China,which owns the largest scale of production and full production specifications and models.What is more,we have the only noe full-function testing center in our region.At the same time,our company focuses on the TB and cooperation in the whole staff so that we often organize many activities.
